Features of TPLink TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router
Versatile Connectivity –
With DSL and LAN/WAN ports, TPLink TD-W9970 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
Boosted Speeds –
Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.

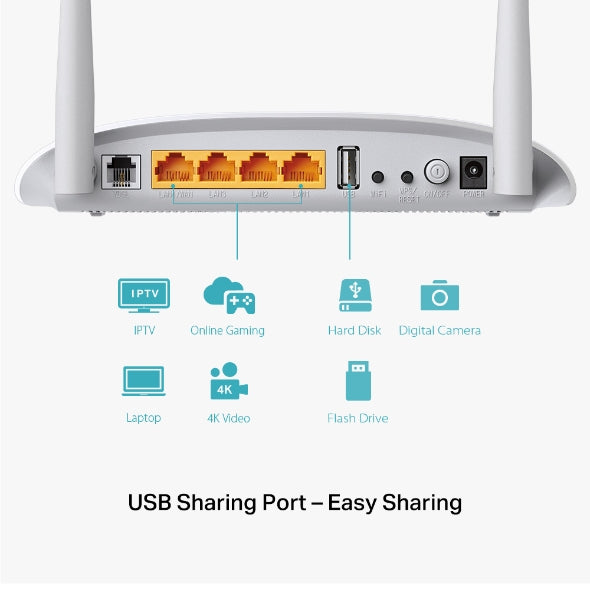

Easy Sharing –
Share files, media with your friends or family using the multi-functional USB port
Maximized Range –
Powerful external antennas provide far-reaching wireless coverage in every direction.
Effortless Management –
Set up in minutes and manage the network with the powerful intuitive web interface.
Specifications of TPLink TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router
| HARDWARE FEATURES | |
| Interface |
4 10/100Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port |
| Button |
1 Power On/Off Button 1 WPS/RESET Button 1 Wi-Fi On/Off Switch |
| External Power Supply | 12VDC/1A |
| IEEE Standards | IEEE 802.3, 802.3u |
| VDSL2 Standards |
ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP） |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 7.7*5.1*1.4 in. (195×130×36mm) |
| Antenna Type | Omni directional, Fixed |
| Antenna Gain | 2 x 5dBi |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security |
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / URL Filtering |
| IPv6 |
IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management |
Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs |
| Advanced Features |
Ethernet WAN (EWAN) Guest Network, Wireless Schedule Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
| USB Sharing |
Storage Sharing FTP Server Media Server |
| IGMP |
IGMP snooping V1/V2/V3 IGMP Multicast |
| IPSec VPN |
10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents |
TD-W9970 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
| System Requirements | Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment |
Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
