Description

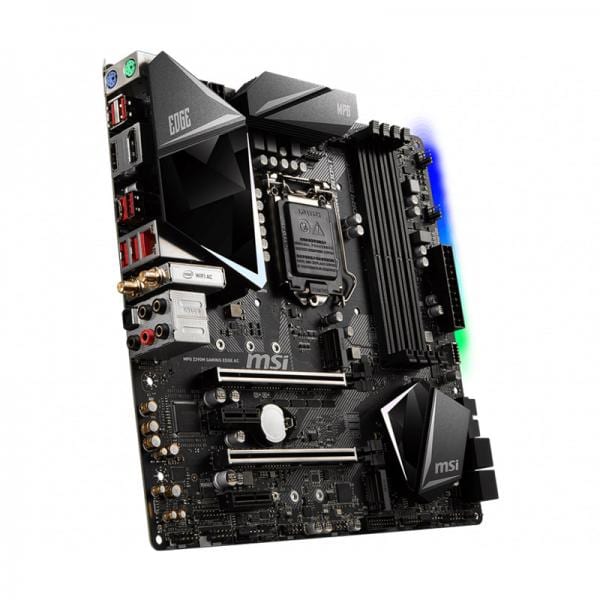

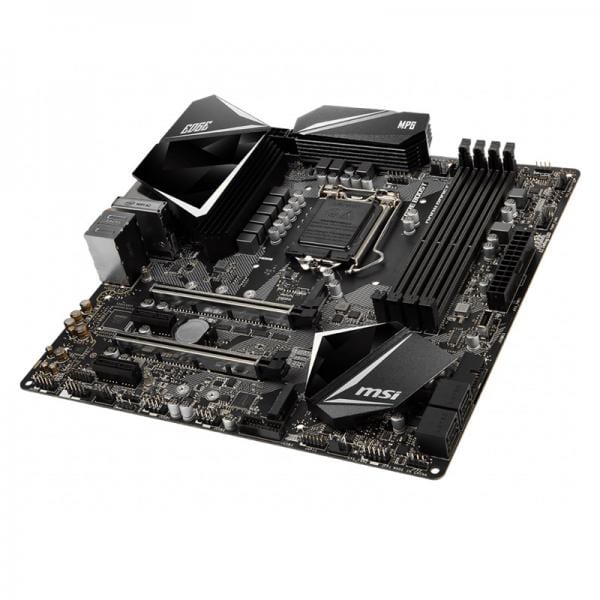

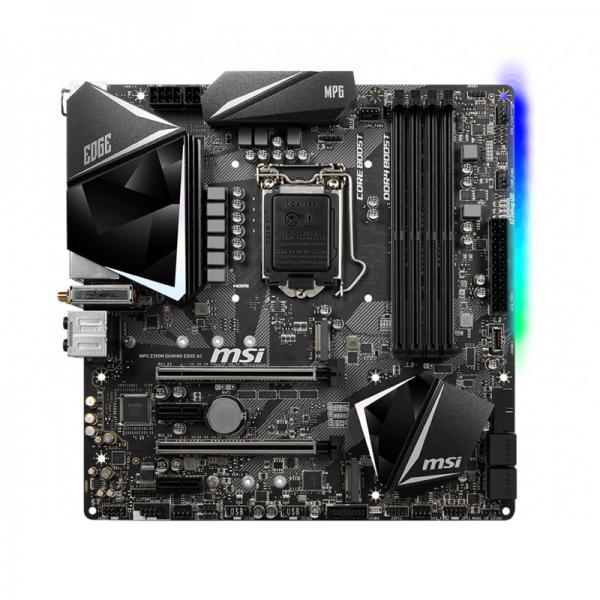

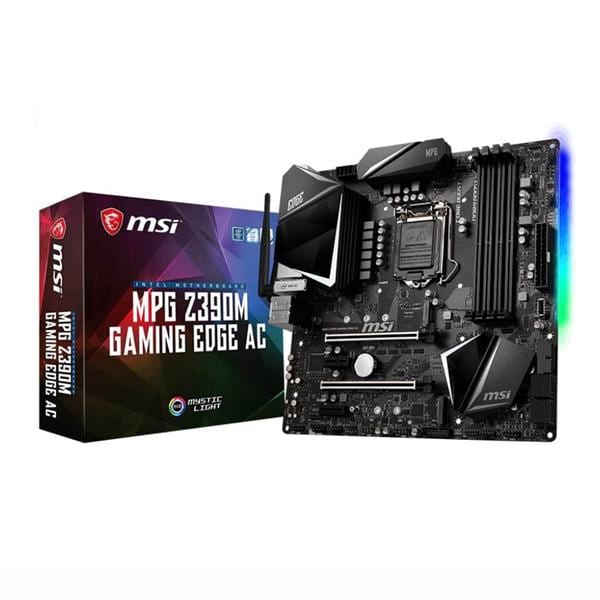

Feature of MSI MPG Z390M Gaming Edge AC WiFi DDR4
Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4500(OC) MHz
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
- Set Core Power Free: Extended Heatsink Design, Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Cooling
The MPG Z390 has one water pump connector and four fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software. Moreover, it has an extended heatsink design to help dissipate heat and ensure stable performance.
User Friendly
- XL Clip - Enlarged PCIe clips make it easier for users to swap out PCIe hardware
- EZ Debug LED - Onboard LEDs for key components indicate the source of a problem
CPU
For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.
DDR4
The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.
Storage
Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.
Internet Connectivity
Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, this motherboard also has 802.11ac Wi-Fi for wireless internet connectivity as well as Bluetooth 5.0 for pairing additional peripherals.
Audio
The MPG Z390 is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Dedicated, EMI-shielded Hi-Fi audio processor
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left and right channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Nahimic 3 surround sound for immersion
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound
MSI Mystic Light
Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED and two 3-pin RAINBOW LED connectors for connecting additional lighting products. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.
Specifications of MSI MPG Z390M Gaming Edge AC WiFi DDR4
| PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 128GBDDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
Dual-Channel mode |
| SLOTS |
2 x PCIe 3.0 x16 slots Support x16/ x0, x8/ x8 modes
2 x PCIe 3.0 x1 slots |
| ONBOARD GRAPHICS |
1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® Z390 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slot (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready1Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A and 1 Type-C ports on the back panel, 1 Type-C internal connector) 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 3.1 connectors) |
| AUDIO |
Realtek® ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| WIFI & BLUETOOTH |
Intel® Wireless-AC 9560 Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5 |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x M.2 slots 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors Serial Port connector x 1 Chassis Intrusion connector x 1 Clear CMOS jumper x 1 TPM module connector x 1 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors |

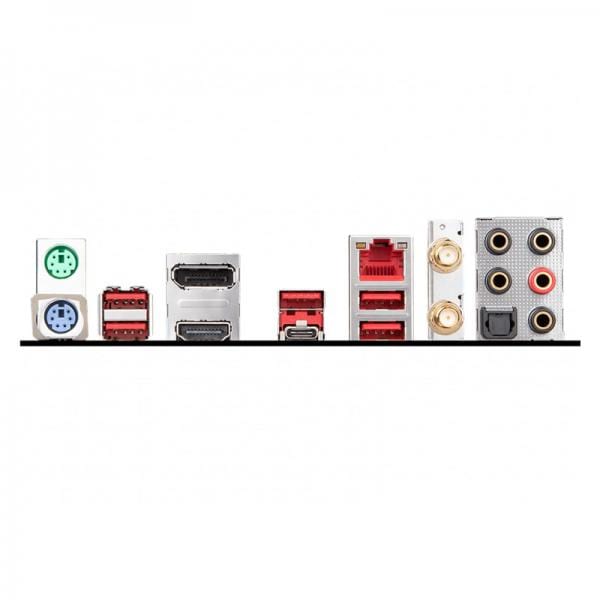

| BACK PANEL PORTS |
Mouse DisplayPort LAN HD Audio Connectors Keyboard USB 3.1 Gen1 HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen1 Wireless / Bluetooth Optical S/PDIF out |
| DIMENSIONS |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Micro-ATX Form Factor |
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
