Description

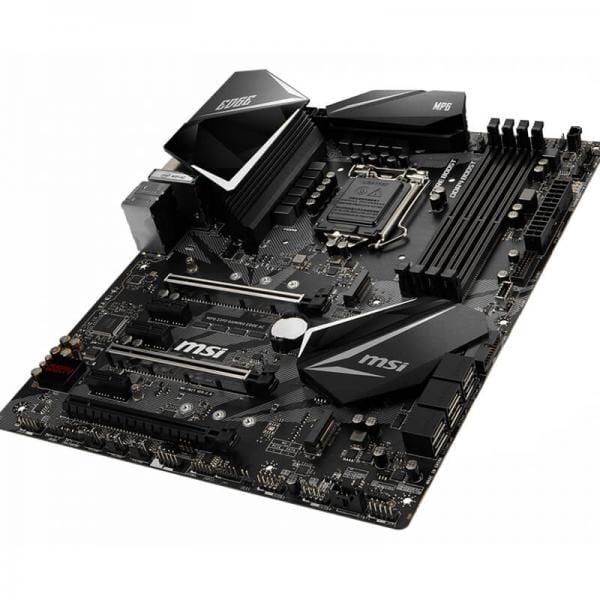

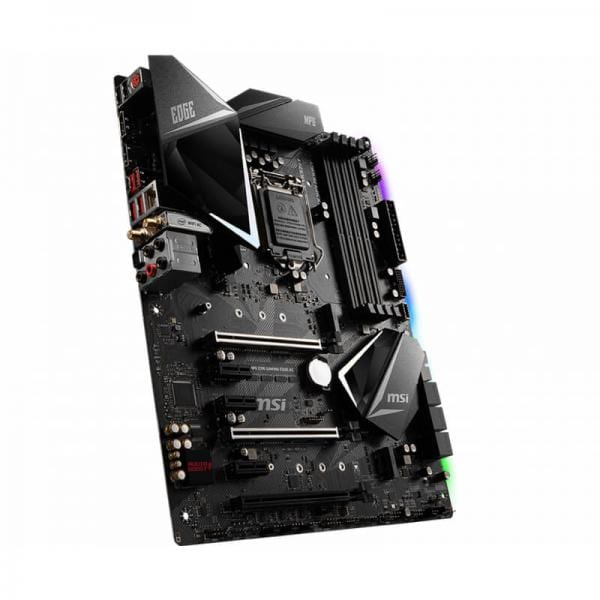

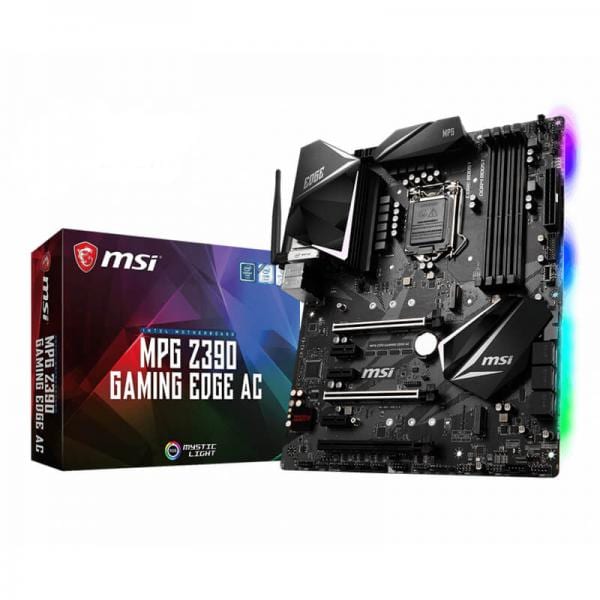

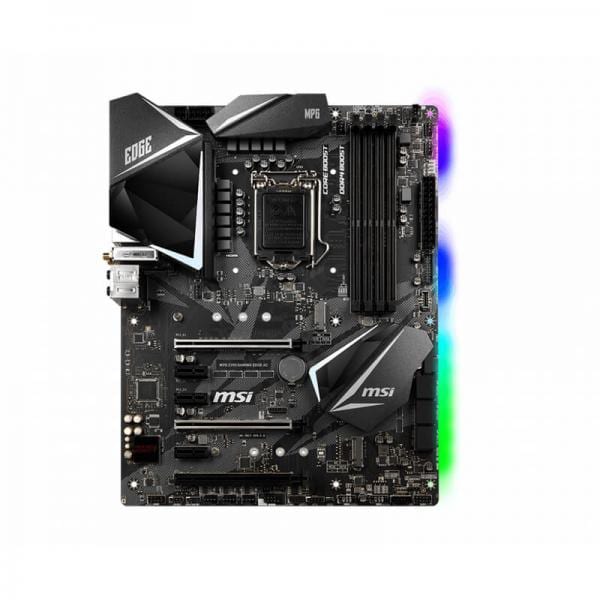

Feature of MSI MPG Z390 Gaming Edge AC WiFi DDR4
Full of sharp and salient lines reflecting gorgeous colors design, the perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector, and Mystic Light
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
- Set Core Power Free: Extended Heatsink Design, Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software that integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user-friendly user interface.
Specifications of MSI MPG Z390 Gaming Edge AC WiFi DDR4
| PROCESSOR | Supports Intel® Core™ 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 128GBSupports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Dual-Channel mode |
| SLOTS |
3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots |
| ONBOARD GRAPHICS |
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hzz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory Ready2M.2 slots and SATA ports share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 3x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
| AUDIO |
Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| WIFI & BLUETOOTH |
Intel® Wireless-AC 9462 card Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5 |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Serial port connector 1 x Front panel audio connector 2 x System panel connectors Thunderbolt Add-on Card Connector Chassis Intrusion connector TPM module connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector 1 x 3-pin CORSAIR LED connector |

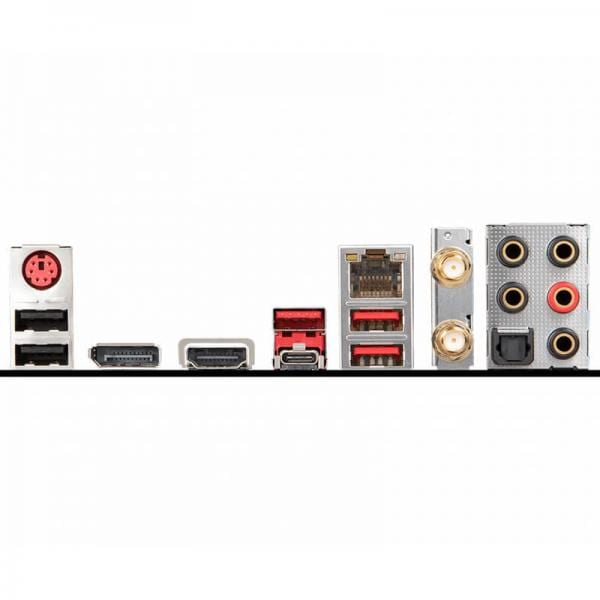

| BACK PANEL PORTS |
PS/2 Combo Port LAN Wireless / Bluetooth HD Audio Connectors USB 2.0 DisplayPort HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen1 Optical S/PDIF out |
| DIMENSIONS |
9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
