Description
Feature of Msi MPG B460I Gaming Edge WiFi DDR4
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933 MHz(Max)
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Enhanced Power Design: 6+1+1 Digital Power Design, Core Boost, DDR4 Boost
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
CONNECTIVITY
MSI MPG B460I Gaming Edge Wifi DDR4 motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
Specifications of Msi MPG B460I Gaming Edge WiFi DDR4
| CPU | Supports Intel® 10th Gen processors for LGA 1200 socket |
| Chipset | Intel® B460 Chipset |
| Memory |
2x DDR4 memory slots, support up to 64GB Intel® Core™ i7 / i9Supports up to DDR4 2933 MHzIntel® Core™ i5 and belowSupports up to DDR4 2666 MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot | 1x PCIe 3.0 x16 slot (From CPU) |
| Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz |
| Storage |
Intel® B460 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2280 storage devices Intel® 0ptane™ Memory Ready for M2_2 slot. |
| RAID |
Intel® B460 Chipset Supports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
Intel® B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector) 5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector |
| Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & 8luetooth |
Intel® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot Only support windows 10 64-bit |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 1x System panel connector 1x 4-pin RGB LED connector 1x 3-pin RAINB0W LED connector 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CM0S jumper 4x EZ Debug LED |
| Back panel ports |

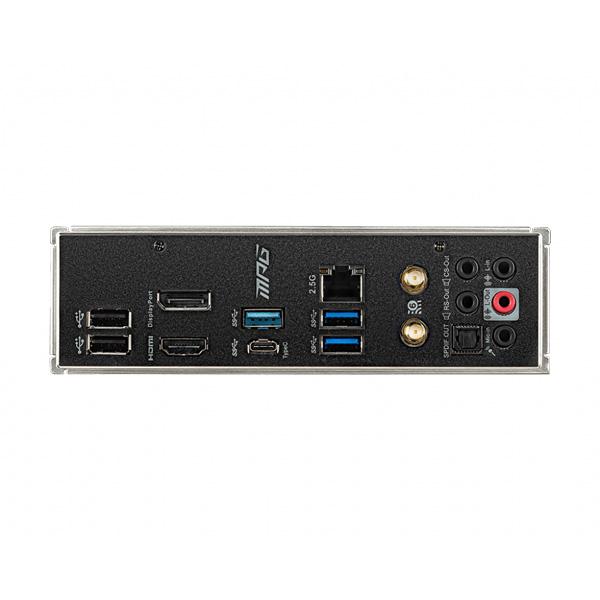

DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT |
| I/O Controller | NUVOTON NCT6687 Controller Chip |
| Dimensions |
Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
