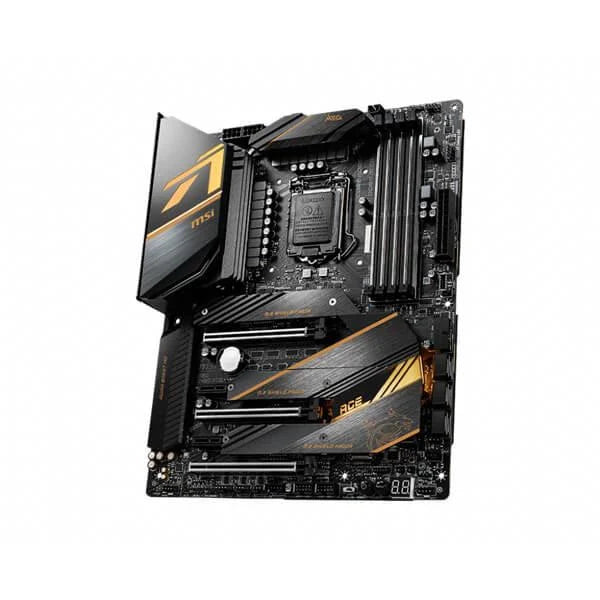

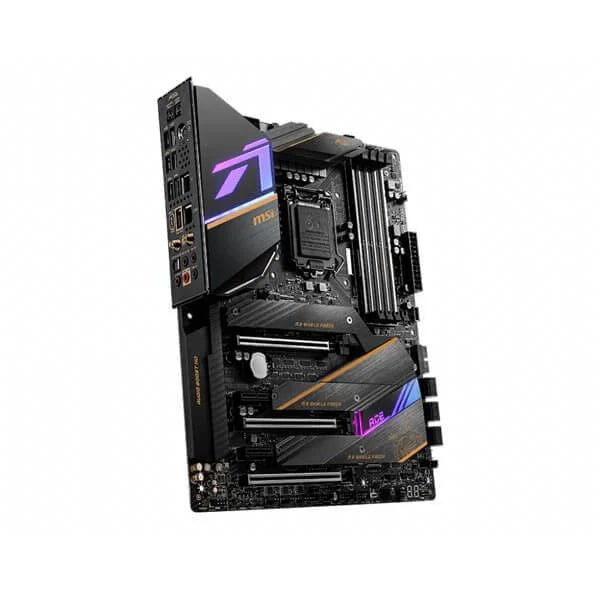

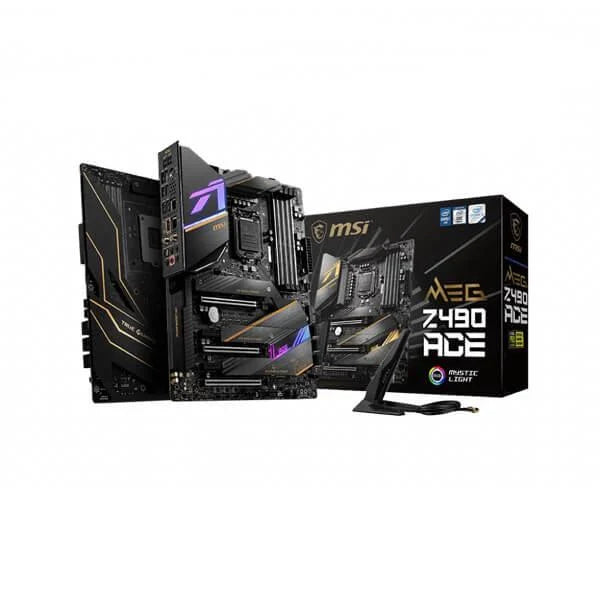

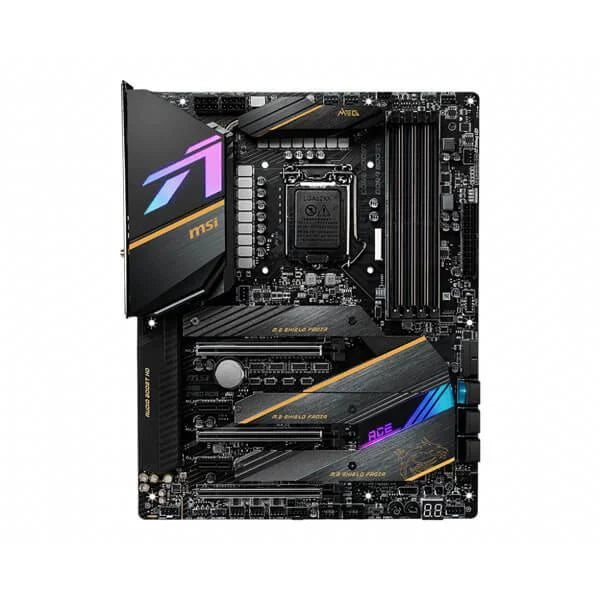

MSI MEG Z490 ACE DDR4 Intel Motherboard

Feature of MSI MEG Z490 ACE DDR4

Tired of using multiple buttons? Now, Safe Boot, EZ LED control functions, Turbo Fan and Reset computer with the Smart Button. Control everything in one click. Now transfer files quickly with Triple Turbo M.2 which comes with Shield Frozr. The transfer speed can go upto 32 GB/s for the latest SSDs which can make life easier and faster. The Turbo M.2 also delivers PCI-E Gen3 x4 performance. Now giving the most immersive gaming experience with Audio Boost HD. This gives isolated audio with a high-quality audio processor, which comes with Nahimic and ESS DAC.

1. Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
2. Supports DDR4 Memory, up to 4800(OC) MHz
3. Ready 4 the Future: Support Lightning Gen 4 Solution for the future
4. Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, RAINBOW and CORSIAR LED strip.
5. Extreme Power Design: INTERSIL digital PWM, 16+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
6. Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, MOSFET Baseplate and M.2 Shield Frozr ensure the extreme performance with low temp.
7. Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
8. Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
9. Triple Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
10. Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience.


EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

MASTER THE GAME

The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI MEG Z490 ACE DDR4 features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
