Description
Features of MSI MEG Z390 Ace WiFi Motherboard
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4500(OC) MHz
- Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED-strip
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Lightning Fast Game Experience: 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
- Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Game Boost: One second automated overclocking by controlling up-to-11 gears, your PC gets another adrenalin shot
Specifications of MSI MEG Z390 Ace Wifi DDR4 Intel Motherboard
| CPU | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |

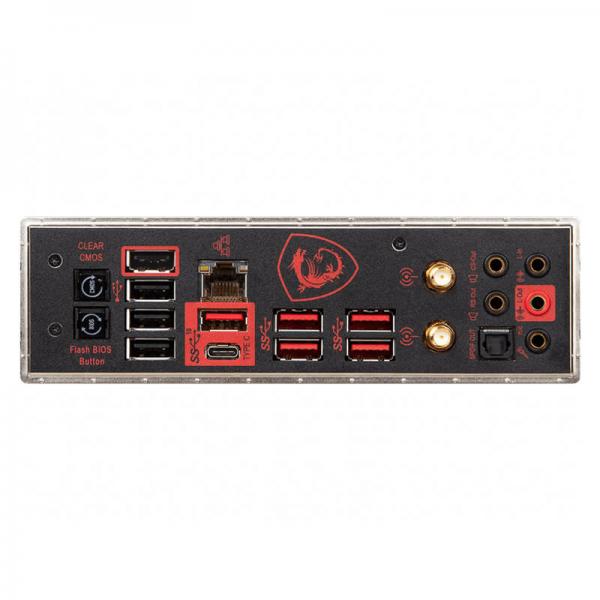

| Back Panel I/O Ports | Clear CMOS Button USB 2.0 Ports Killer™ E2500 Gigabit LAN Wi-Fi /Bluetooth Antenna Connectors HD Audio Connectors BIOS FLASHBACK Button USB 3.1 Gen2 Ports Type A C USB 3.1 Gen2 Ports USB 3.1 Gen2 Ports Optical S/PDIF-Out |
| Chipset | Intel® Z390 Chipset |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 6 x SATA 6Gb/s connectors 3 x M.2 slots 2 x USB 3.1 Gen2 Type-C ports 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector 1 x 3-pin CORSAIR LED connector |
| Memory | 4 x DDR4 memory slots, support up to 64GB Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Slots | 3 x PCIe 3.0 x16 slots Support x16/ x0/ x0, x8/ x8/ x0, x8/ x4/ x4 modes 3 x PCIe 3.0 x1 slots |
| Multi-GPU Support | Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
| Storage | Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 3 x M.2 slot (Key M)1 M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready2 M.2 slots and SATA ports share the bandwidth.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID | Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices |
| USB | Intel® Z390 Chipset 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (4 Type-A ports on the back panel, 2 Type-C internal connectors) 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) ASMedia® ASM1042 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors ASMedia® ASM3142 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A, 1x Type-C) on the back panel |
| LAN | 1 x KillerTM E2500 Gigabit LAN controller |
| Audio | Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Operating System | Support for Windows® 10 64-bit |
| Bluetooth | Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0, 4.0, 5 |
| Mounting | 9 mounting holes |
| DIMENSION** | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Warranty** | 3 years |
| **Note | Price, feature and specifications are subject to change without notice. |
