Description

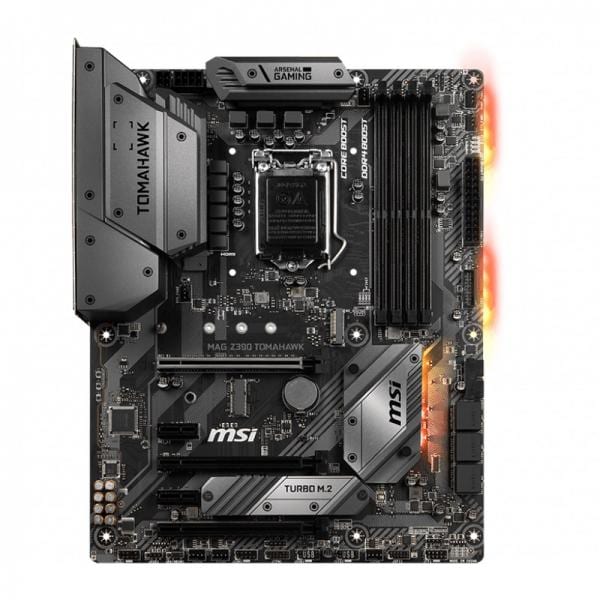

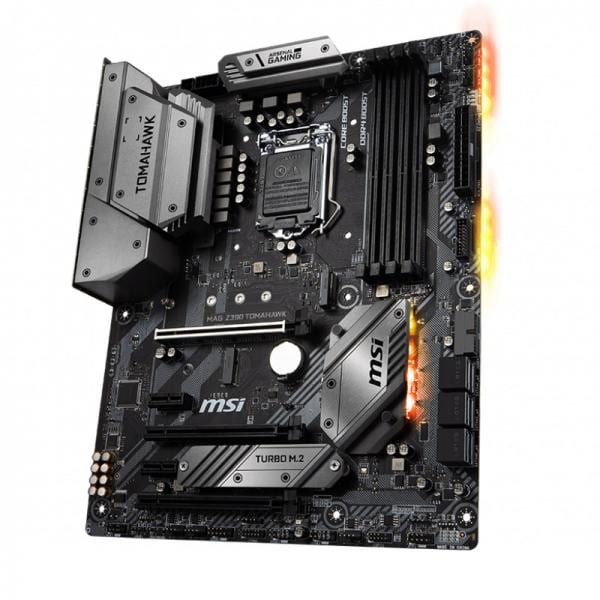

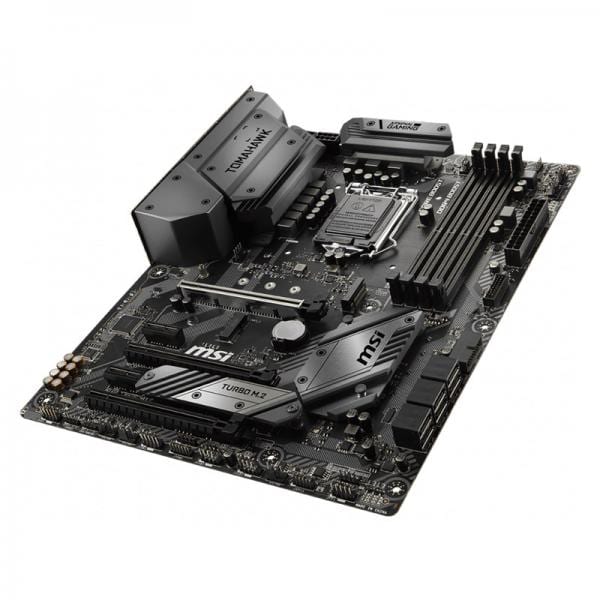

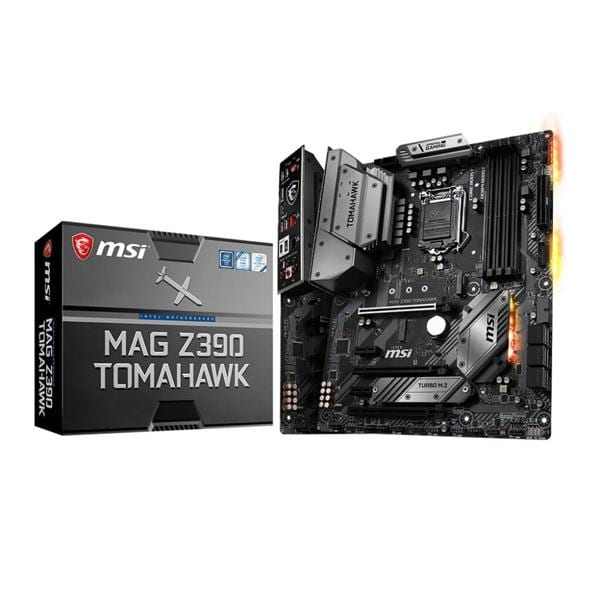

Feature of MSI MAG Z390 Tomahawk Wifi DDR4
Military-style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2, and USB 3.1 Gen2 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ensures even high-end processors to run in full speed.
- Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2
- Set Core Power Free: Core Boost, 8 4 pin CPU power connector, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
The MSI MAG Z390 Tomahawk Wifi DDR4 series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM HeatsinkThe VRM heatsink covers the upperMOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Specifications of MSI MAG Z390 Tomahawk Wifi DDR4
| PROCESSOR | Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 128GB DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz* Dual-Channel mode non-ECC, un-buffered memory Intel® Extreme Memory Profile (XMP) |
| SLOTS |
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes) 2 x PCIe 3.0 x1 slots 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only |
| ONBOARD GRAPHICS |
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® Z390 Chipset 6x SATA 6Gb/s ports*1 2x M.2 slots (Key M)*1M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory ReadyM.2 slots and SATA ports share the bandwidth. Please refer to user manual for details. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1 x Intel® I219-V Gigabit LAN controller 1 x Intel® I211-AT Gigabit LAN controller |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Serial port connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector |

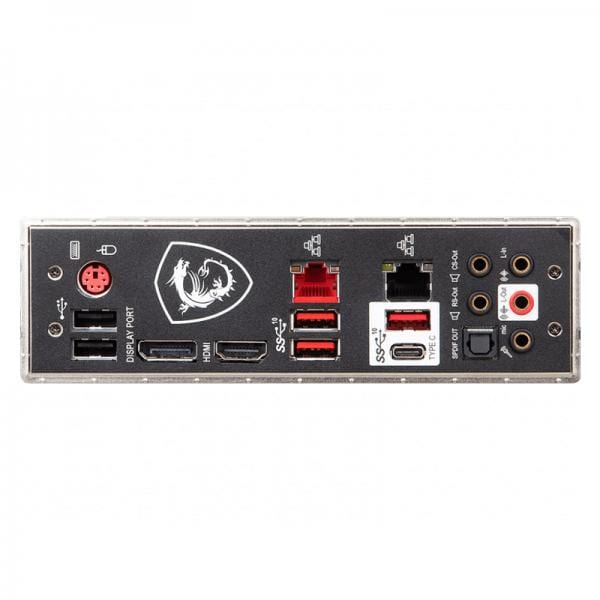

| BACK PANEL PORTS |
PS/2 Combo Port LAN Port HD Audio Connectors USB 2.0 Port DisplayPort HDMI Port USB 3.1 Gen2 Type A USB 3.1 Gen2 Type A C Optical S/PDIF OUT |
| DIMENSIONS |
9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
