Description
Feature of MSI B460M Pro-VDH DDR4
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI B460M Pro-VDH DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Specifications of MSI B460M Pro-VDH DDR4
| CPU |
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
|
| Chipset | Intel® B460 Chipset |
| Memory |
4x DDR4 memory slots supporting up 128GB Intel® Core™ i7/ i9Support DDR4-2933 Memory (Max.)Intel® Core™ i5 (Below)Supports DDR4-2666 Memory (Max.)Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot |
1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) |
| Onboard Graphics |
1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz |
| Storage |
Intel® B460 Chipset4x SATA 6Gb/s ports
2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID |
Intel® B460 ChipsetSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
| USB |
Intel® B460 Chipset6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Audio | Realtek® ALC892 Codec7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H Gigabit LAN Controller |
| Wireless LAN & Bluetooth® | N/A |
| Internal connectors |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector |

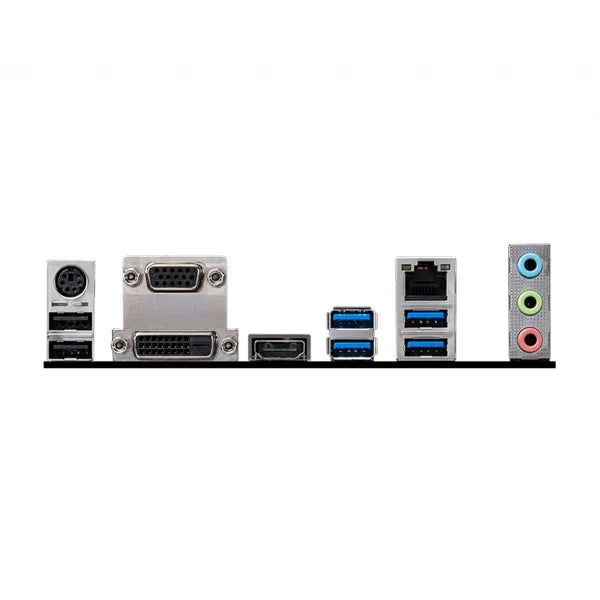

| Back panel ports |
Keyboard / Mouse VGA LAN USB 2.0 DVI-D HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Wireless / Bluetooth Audio Connectors |
| Form Factor |
mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note |
***Features, Prices, and Specifications are subject to change without notice.
|
