Description
Features of DEEPCOOL Castle 360EX ARGB

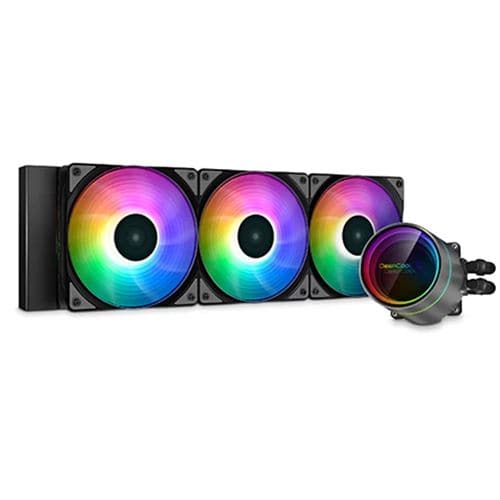

The DEEPCOOL CASTLE 360EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with three DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 360mm radiator.
- Better by Design
- Efficient Cooling
- Powerful And Quiet
- More Surface Area
- Protect whats Yours
- Customize your Look
Better by design
The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.
Efficient cooling
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
Powerful and quiet
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
More surface area
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
Protect what’s yours
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology. This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.
Customize your look
Easily change orientation by twisting off the pump face to adjust the logo.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Specifications of DEEPCOOL Castle 360EX ARGB
| Model | DP-GS-H12W-CSL360EX |
| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Net Weight | 1665 g |
| Tube length | 465 mm |
| Pump Dimensions | 86×75×71 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 64.4 CFM |
| Fan Air Pressure | 2.33 mmAq |
| Fan Noise | ≤32.1 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A |
| Fan Power Consumption | 1.8 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin( 5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W(PUMP) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
