Description

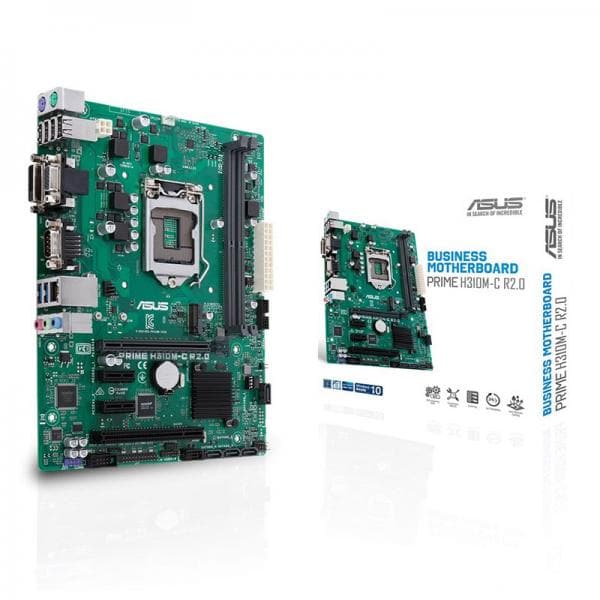

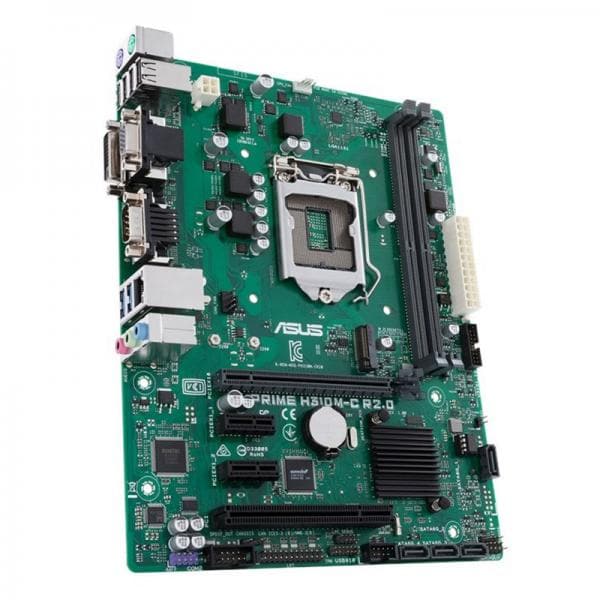

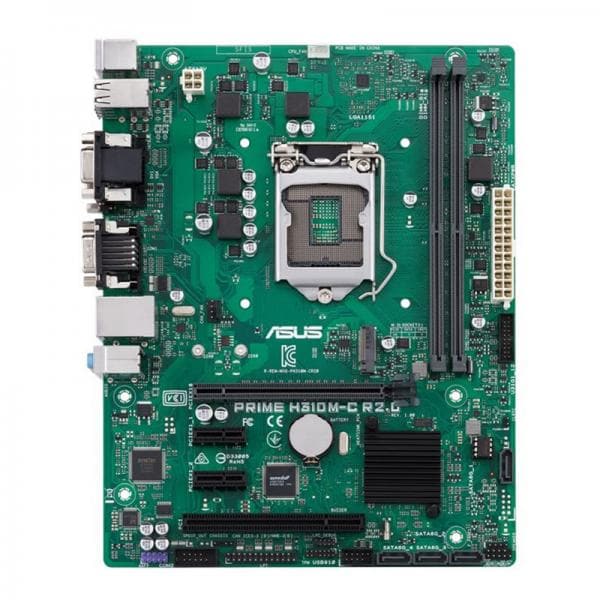

Feature of ASUS Prime H310M-C R2.0 DDR4
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customization faster and more efficient
BUSINESS MOTHERBOARD
ASUS Prime H310M-C R2.0 is the world's biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center - server-grade IT management software.
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, including UL and Blue Angel, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
ASUS Shield
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
Trusted Platform Module (TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
Certified NIST SP 800-147
ASUS business motherboard is certified by the national computer security standards.
Specifications of ASUS Prime H310M-C R2.0 DDR4
| CPU | Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® H310 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemorySupports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs.* The maximum memory frequency supported varies by processor.** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : DVI-D/RGB ports- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 1024 MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Supports up to 2 displays simultaneously |
| Expansion Slots | 1 x PCIe 3.0/2.0 x162 x PCIe 2.0 x11 x PCI |
| Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)4 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC *1- Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports | Intel® H310 Chipset :2 x USB 3.1 Gen 1 port(s) (2 at mid-board)Intel® H310 Chipset :6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board) |
| Special Features | Bespoke Motherboard Design & Business Focused Features :- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen- ASUS Event Log: Record activities of system and provides information in BIOS- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environmentEasy Assembly Design:- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damageDigi VRM |

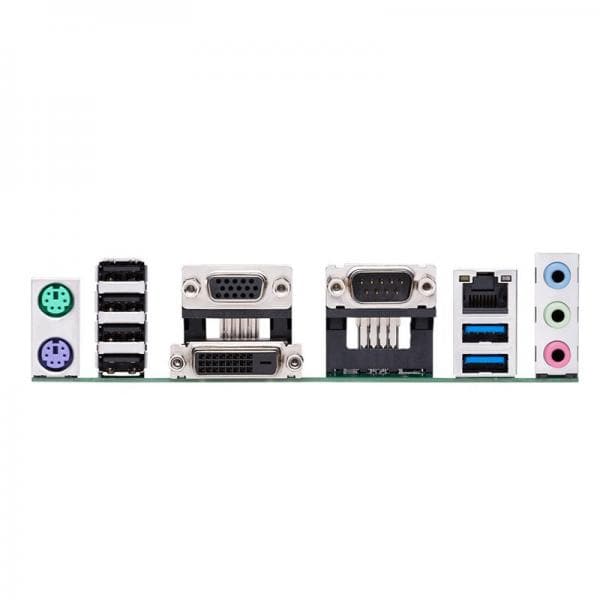

| Back I/O Ports | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 1 ,4 x USB 2.03 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)1 x LPT header2 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Chassis Intrusion connector(s)1 x Clear CMOS jumper(s)1 x 14-1 pin TPM connector1 x LPC Debug header1 x Speaker connector |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Manageability | WOL, PXE |
| Support Disc | DriversASUS Commercial BIOS KitsASUS Watchdog Timer |
| Form Factor | uATX Form Factor9.6 inch x 7.6 inch (24.4 cm x 19.3 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
