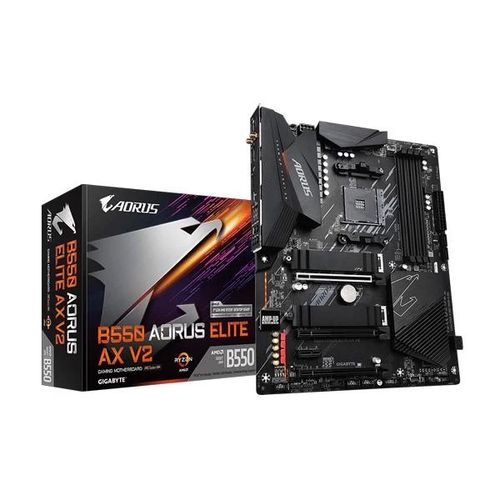

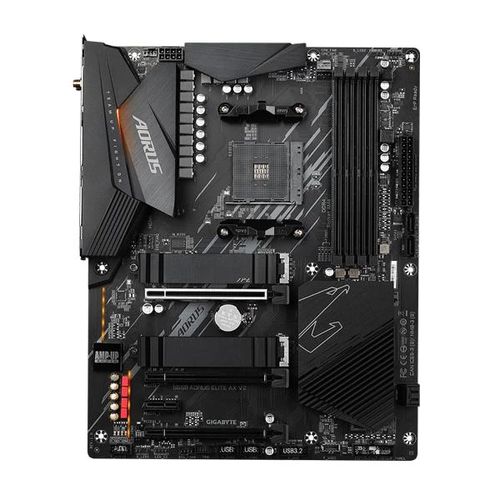

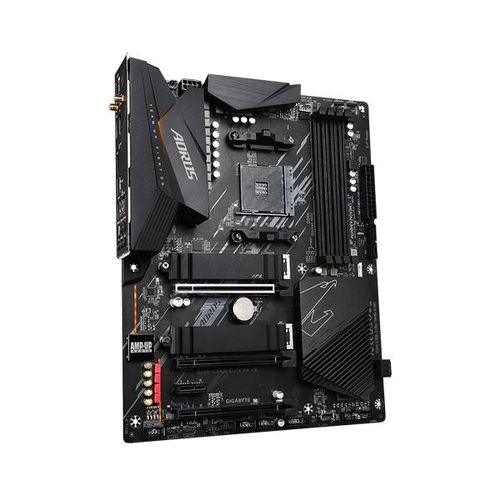

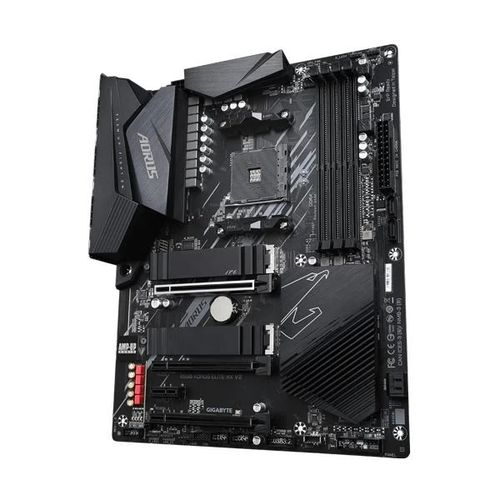

GIGABYTE B550 Aorus Elite AX V2 Wifi DDR4 AMD Motherboard

GIGABYTE B550 Aorus Elite AX V2 Wifi DDR4 AMD Motherboard

Name: GIGABYTE B550 Aorus Elite AX V2 Wifi DDR4 AMD Motherboard
Brand: Gigabyte
SKU: Gigabyte-b550-aorus-elite-ax-v2-wifi
Price: 15079.91 INR
Availability: OutOfStock

Rs. 15,079.91 Rs. 19,000.00

Discount: Rs. 3,920.09 (21%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Feb 09 - Feb 13

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of GIGABYTE B550 Aorus Elite AX V2 Wifi DDR4 AMD Motherboard

AMD B550 AORUS Elite AX V2 Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
GIGABYTE B550 Aorus Elite AX V2 WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1200 and WIMA Capacitors
Blazing Fast 2.5GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

GIGABYTE B550 AORUS Elite AX V2 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

Ultimate design

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS Elite AX V2 motherboards for enthusiast. No Compromise and never stop to achieve higher.

**12*+2 Phases Digital Twin Power Design**

Digital PWM Controller delivers appropriate voltage to the CPU
With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
All-solid capacitors to improve Transient response and minimize oscillation
24pin+8pin Solid Pin CPU Power Connectors

B550 AORUS Elite AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won’t stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 AORUS Elite AX V2 motherboards easier to upgrade.

Memory Layout – Daisy Chain Design

With the optimized daisy-chain routing, the B550 AORUS Elite AX V2 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 AORUS Elite AX V2 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

DEFINITIVE AESTHETICS

B550 AORUS Elite AX V2 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Specifications Of GIGABYTE B550 Aorus Elite AX V2 Wifi DDR4 AMD Motherboard

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	Intel® Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
USB	CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset:1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

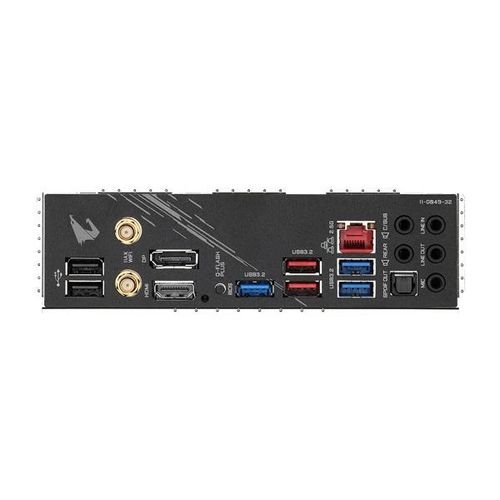

Back Panel Connectors	1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
