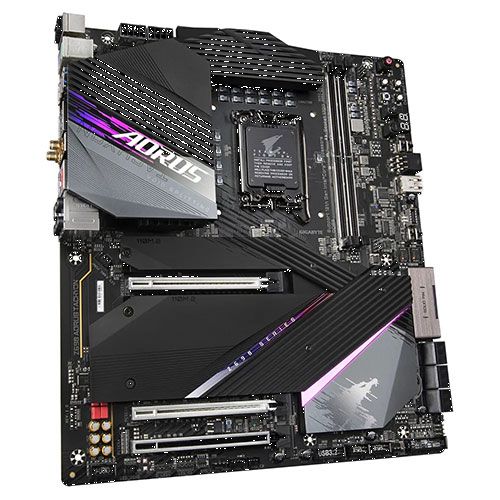

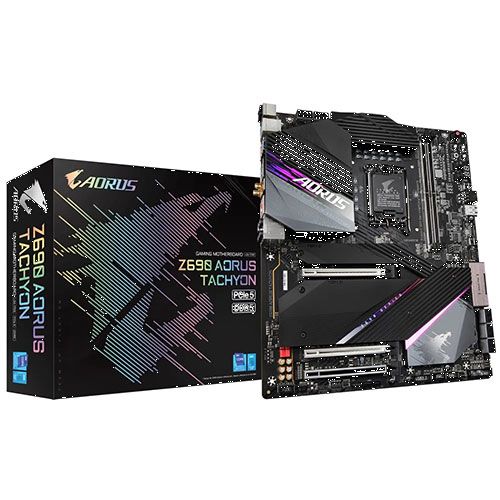

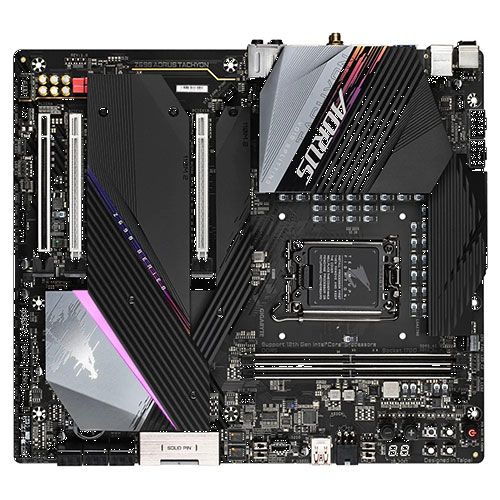

GIGABYTE Z690 Aorus TACHYON DDR5 Intel Motherboard

GIGABYTE Z690 Aorus TACHYON DDR5 Intel Motherboard

Name: GIGABYTE Z690 Aorus TACHYON DDR5 Intel Motherboard
Brand: Gigabyte
SKU: gigabyte-z690-aorus-tachyon-ddr5
Price: 53615.8 INR
Availability: OutOfStock

Rs. 53,615.80 Rs. 79,990.00

Discount: Rs. 26,374.20 (33%)

14 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of GIGABYTE Z690 Aorus TACHYON DDR5 Intel Motherboard

Gigabyte Z690 AORUS TACHYON DDR5 Intel Motherboard

GIGABYTE Z690 Aorus TACHYON is the pinnacle of overclocking motherboard completely designed by and for overclockers, who are continuously seeking to break unimaginable performance limit. Its specialized VRM design, memory layout trace and built-in overclocking buttons and switches enable overclocking enthusiasts to unleash full potential of latest generation Intel Core processor.

Digital PWM Controller

VRM design uses RENESAS RAA229131 PWM controller that directly drives 15 phases for the highest efficiency.

105A Power Stage

Each vcore VRM phase uses 105A RAA220105 Power stage for maximum current capacity under extreme overclocking.

Tantalum Capacitor Matrix

VRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.

Dual CPU Power Connectors

Dual 8 pin CPU power connectors with metal shielding provide maximal current input to processor

Power Architecture

GIGABYTE DIRECT VRM DESIGN

The more advanced manufacturing process and the higher core count on the new generation of CPUs, requires motherboards to utilize a more sophisticated VRM design to make CPUs run at their full potential. GIGABYTE uses fully DIRECT VRM DESIGN, high quality MOSFETs and tantalum polymer capacitors to achieve higher efficiency, lower voltage ripple and lower temperature than traditional parallel VRM design.

Tantalum Polymer Capacitor Matrix

By using 100% tantalum polymer capacitors design, it's easier for professional overclockers to insulate VRM area and use LN2 pot to cool down CPU without mechanical interference.

Improved Transient Response

With DIRECT VRM DESIGN and TANTALUM POLYMER CAPACITOR, Z690 motherboards transient response, voltage ripple and stability is highly improved under overclocking and heavy loading condition.

XTREME MEMORY

With 2-DIMM daisy chain memory trace layout, Z690 AORUS TACHYON can achieve the shortest memory DIMM distance between CPU, therefore reach the highest memory clock and the lowest latency.

PCIe 5.0 DESIGN

GIGABYTE Z690 Motherboards are ready to work with the upcoming PCIe 5.0 devices which are expected to experience double bandwidth than the current PCIe 4.0 devices. To reach the high speed and maintain good signal integrity, Gigabyte R&D uses the low impedance PCB to provide the maximum performance.

Intel 802.11ax WIFI 6E

Intel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Benefit of WIFI 6E

Dedicated spectrum in 6GHz band for less interference
5.5X throughput than 802.11ac 1x1*
4X better network capacity, no traffic jams especially in those dense area with lots of devices
Network efficiency increase for better user experience

Specifications of Gigabyte Z690 Aorus TACHYON DDR5

Model
Brand	GIGABYTE
Model	Z690 AORUS TACHYON
Supported CPU
CPU Socket Type	LGA1700
CPU Type	12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipsets
Chipset	Intel® Z690 Express Chipset
Memory
Number of Memory Slots	2 x DDR5 DIMM
Memory Standard	DDR5
Maximum Memory Supported	up to 64 GB
Channel Supported	Dual Channel
Expansion Slots
PCI Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16),"1 x PCI Express x16 slot, running at x8 (PCIEX8),"1 x PCI Express x16 slot, running at x4 (PCIEX4)
Storage Devices
SATA 3Gb/s	6 x SATA 6Gb/s
SATA RAID	Raid 0, 1, 5, 10
Onboard Video
Onboard Video Chipset	N/A
Onboard Audio
Audio Channels	3.2/4/5.1/7.1-channel
Audio Chipset	Realtek ALC1220-VB codec
Onboard LAN
LAN Chipset	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

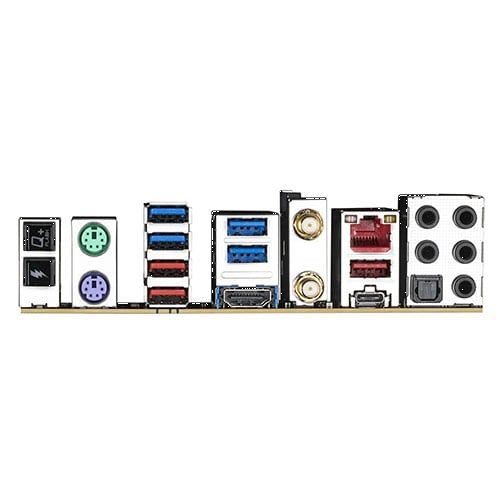

Rear Panel Ports
S/PDIF Out	1 x optical S/PDIF Out connector
Audio Ports	5 x Audio jack(s)
PS/2	1 x PS/2 keyboard & PS/2 mouse connectors
HDMI	1 x HDMI
Onboard USB
Onboard USB	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support," 3 x USB 3.2 Gen 2 Type-A ports (red)," 4 x USB 3.2 Gen 1 ports
Onboard 1394
Onboard 1394	N/A
Physical Spec
Form Factor	E-ATX Form Factor; 30.5cm x 27.0cm
