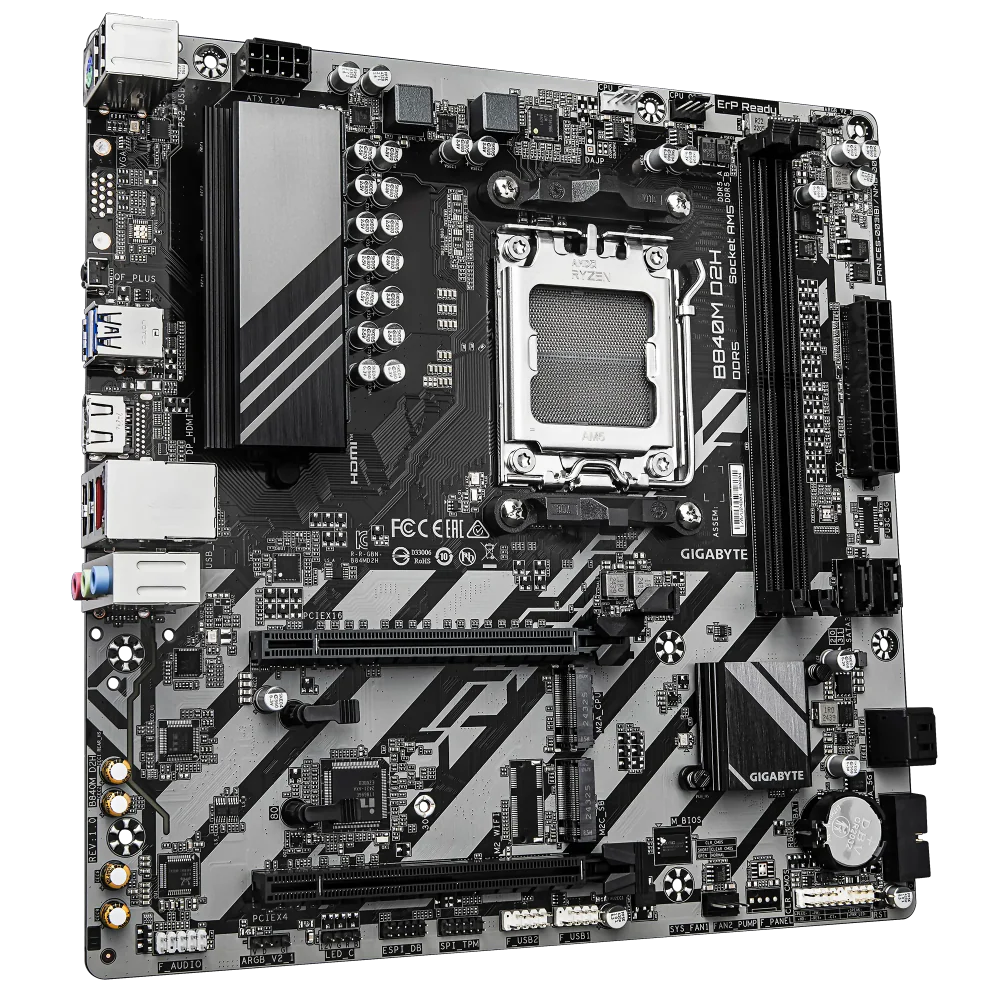

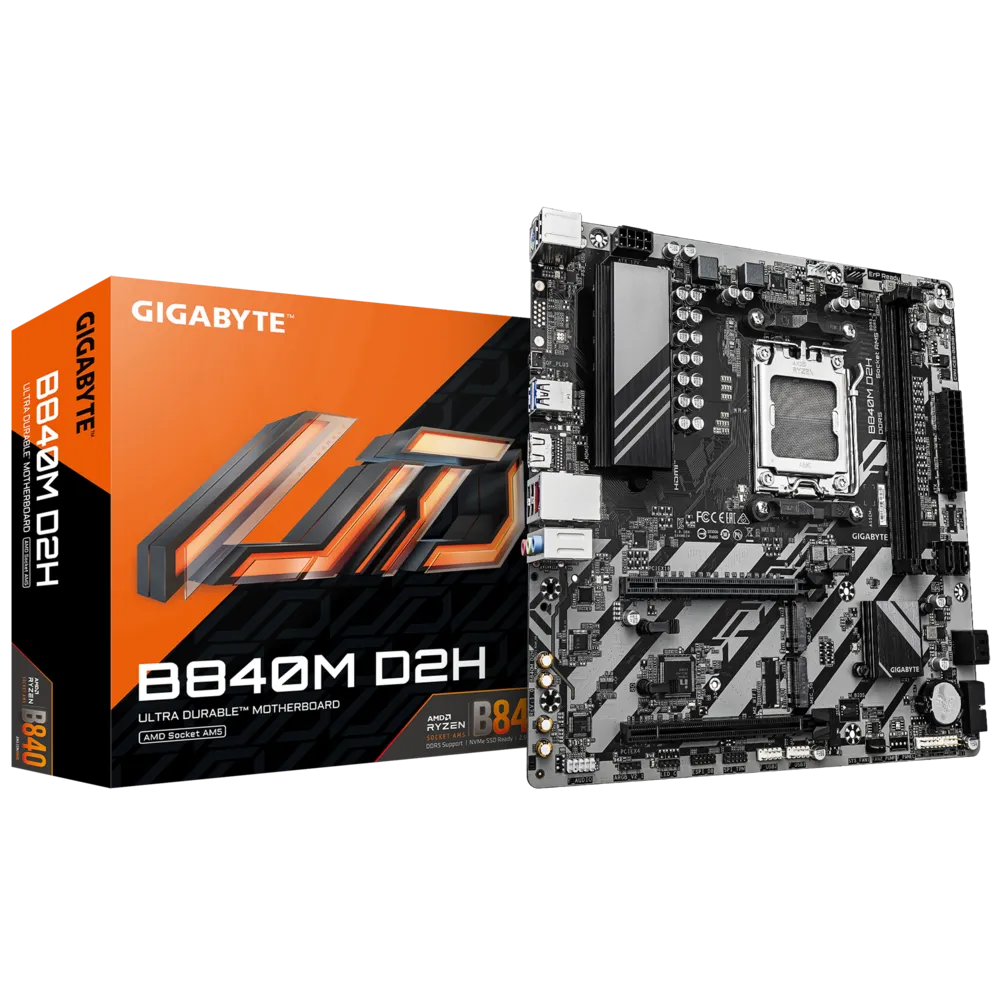

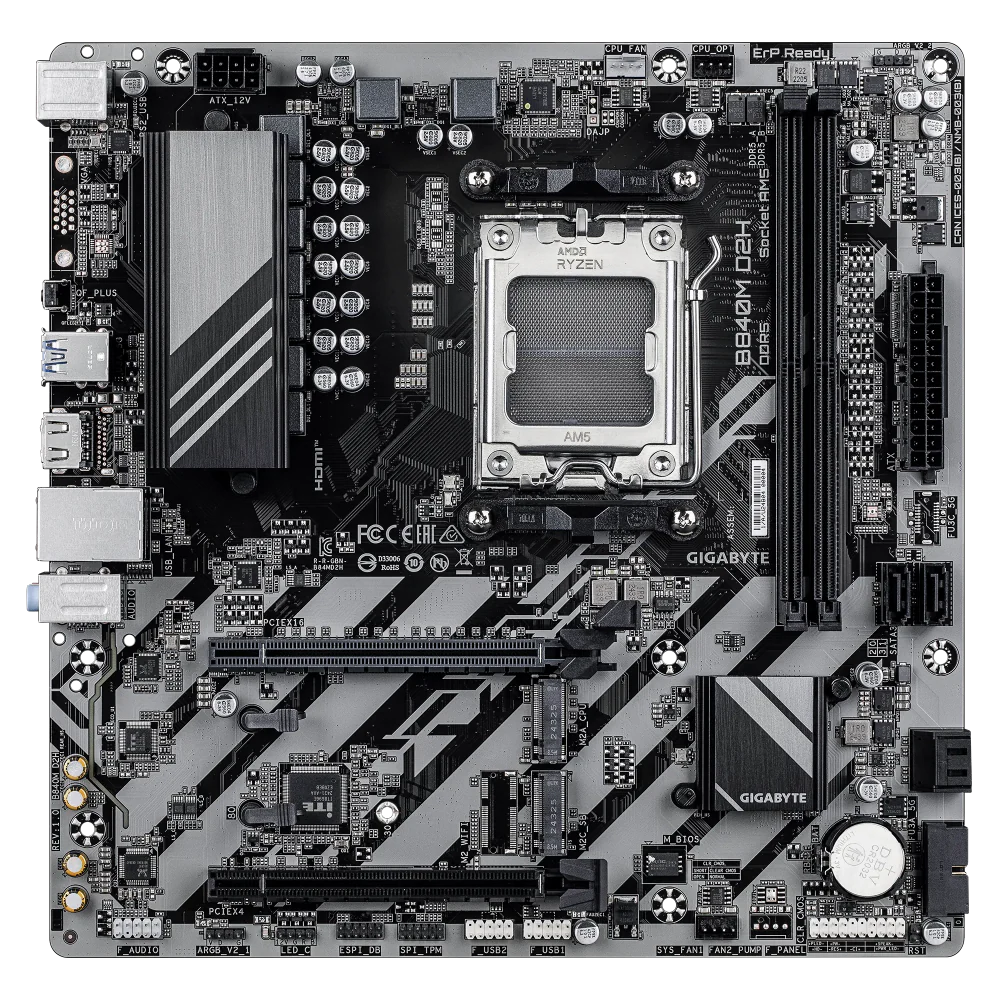

GIGABYTE B840M D2H AMD Motherboard

Name: GIGABYTE B840M D2H AMD Motherboard
Brand: Gigabyte
SKU: gigabyte-b840m-d2h
Price: 68852.84 INR
Availability: OutOfStock

Rs. 68,852.84 Rs. 80,149.00

Discount: Rs. 11,296.16 (14%)

23 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of GIGABYTE B840M D2H AMD Motherboard

X3D Turbo Mode

Unleash New Era Gaming Performance with One-Click Activation.

X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

One-Click Acceleration :

Enhance Gaming FPS Performance with a single click.

AORUS AI SNATCH

Unleash Ultimate Performance with One-Click Activation.

Auto CPU & DDR5 Memory Boost

With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:

Enhance CPU & DDR5 speeds with a single click.

Real time Analyze
OC accuracy UP
EZ to Pro

Fast AI Performance

Accelerate AI processing for greater performance

Up to

AI Performance*

Accelerated AI decision-making
Boosted reinforcement learning
Streamlined language processing

Boost CPU & Memory Performance

Raise system speed and performance.

Up to

CPU & Memory Performance Boost*

Tailored-overclocking for your CPU and memory
Faster data transfer and application loading
Improved multitasking performance
Optimized overall system performance

Maximize performance in a snap

Enable users to easily become overclocking experts through a simple interface.

Smart & Safe overclocking

Protect your motherboard through multiple over-temperature and over-current safeguards.

AI-Driven PCB Technology -Redefining PCB Design with Artificial Intelligence

AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

AI-ViaFusion Technology
Optimized vias & pads for signal integrity
AI-Trace Technology
Smart routing for peak performance
AI-Layer Technology
Tailored stackups for enhanced functionality

Key Features:

AI-Generated Design Recipes
AI-Driven Simulation
AI-Powered Signal Verification
Single and cross-layer signal optimization

AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity

Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.

Best-in-class Signal Quality

Superior signal transmission efficiency
Dramatically reduced signal reflection
Elevated signal quality and reliability
Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology - AI-Engineered Via Design Formula

AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.

Optimized Via Design
Varied via sizes for optimized signal and power paths
Driven Pad Optimization
Custom pad sizes for performance and production balance
Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance

Unlock AI-Powered Performance with AI-ViaFusion Technology

Minimized Insertion Loss
Optimized vias reduce signal loss
Enhanced Return Loss
Precision impedance matching reduces reflections
Optimized Eye Diagram
Wider eye opening improves signal integrity

AI-ViaFusion Technology - AI-Driven Revolution in PCB Design

Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.

AI-ViaFusion Technology optimizes PCB performance through :

Strategic Via Sizing
Optimized for varied signals across PCB
Enhanced Impedance Matching
Precise control via machine learning
Space Optimization
Maximized layout efficiency with signal integrity

AI-Trace Technology -Revolutionizing PCB Routing with AI

AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.

Fiber Weave Effect Mitigation
Optimized signal synchronization
Shielded Memory Routing
Optimized signal shielding and precision
Impedance-Optimized Topology
Refined traces with minimal resistance
Isolated Memory Routing
Optimized trace layout and layer separation
Daisy-Chained Routing
Innovative design eliminates signal bottlenecks

Mitigating Fiber Weave Effect with AI-Trace Technology

Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.

Benefits of Mitigation :

Reduces signal distortion
Improves transmission reliability
Supports higher data rates
Enhances overall system stability

AI-Layer Technology -Next-Generation Multi-Layer PCB Design

AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.

Core Innovation:
AI-Optimized Layer Customized Design

AI-optimized layer design
Unique material for each layer
AI-verified signal integrity
Tailored PCB for peak performance

Key Features:

AI-optimized PCB layer and design material
Server-Grade Low Loss PCB*
Enhanced 2X Copper Technology

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

5+2+2 Phases digital PWM + 60A DrMOS
Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

High Current Support

Supports both PWM and DC fans, plus water cooling pumps
Up to 24W (12V x 2A) capacity per fan header
Built-in over-current protection

Precision Control

Multiple temperature and fan speed points
Customizable fan curves for optimal performance

Dual Curve Mode

Choose between slope and stair modes
Tailor cooling to your specific needs and preferences

Fan Stop Technology

Fans can be completely turned off at low temperatures
Ensures silent operation during light loads

Enhance Fan Curve UI

7 adjustable control points
Expanded speed graph for precise adjustments

Slope/Stair Dual Graph Mode

Slope mode: Smooth fan speed curve
Stair mode: Steady speeds within temperature ranges
Easy switching between modes

Manual Input

Fine-tune fan speeds for optimal performance
Precise control for enthusiasts

EZ Tuning

Quick setup with 4 temperature and fan speed points
Automatic optimization of fan curve

Fan Curve Profile

Save personalized settings to BIOS ROM
Maintain custom settings through BIOS updates

Exclusive BIOS Design

Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

AMD EXPO™ Settings

Optimize memory with AMD's user-friendly profiles.

Boost Performance

Boost Performance: Get the most out of your system's memory.

AMD EXPO™ User Profile

Harness the power of AMD profiles to fine-tune your memory for outstanding system performance.

Custom SPD Profiles

Create and manage two unique SPD profiles, ready to transfer between machines.

Fast Performance Simulation

Automatically adjusts clock and timing parameters, quickly simulating optimal memory performance.

Profile Management

Save and load your preferred memory settings, and share them with ease.

Enhance non-overclockable DDR5 Speeds

Push the limits of your non-overclockable DDR5 memory with boosted frequencies.

Instant Reset

One-click to clear and restore memory settings for quick adjustments.

Unmatched Hardware Excellence

Elevate your gaming with our state-of-the-art technology for a superior experience.

Shielded Memory Routing

Advanced shielding inside the PCB keeps your memory signals clean and interference-free.

Daisy-Chained Routing

Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Multi-key

A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.

RGB Switch

Disable all light displays on the motherboard.

Direct-To-BIOS

Access the BIOS settings directly without keyboard inputs.

Safe Mode

Access BIOS safe mode to modify select settings while preserving other configurations.

Optimal DRAM Installation Indicator

The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan

The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Multi-Theme

Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.

AIO Fan Control

Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

Refined BIOS Interface

GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access Function

GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

AORUS & HWiNFO Co-branded OSD

AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

Default AORUS skin

When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.

Memory Timings Monitor

Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

Detailed BIOS information

GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

Varnish your shine

Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

Specifications of GIGABYTE B840M D2H AMD Motherboard

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B840
Memory	Support for DDR5 7600(O.C.) / 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper

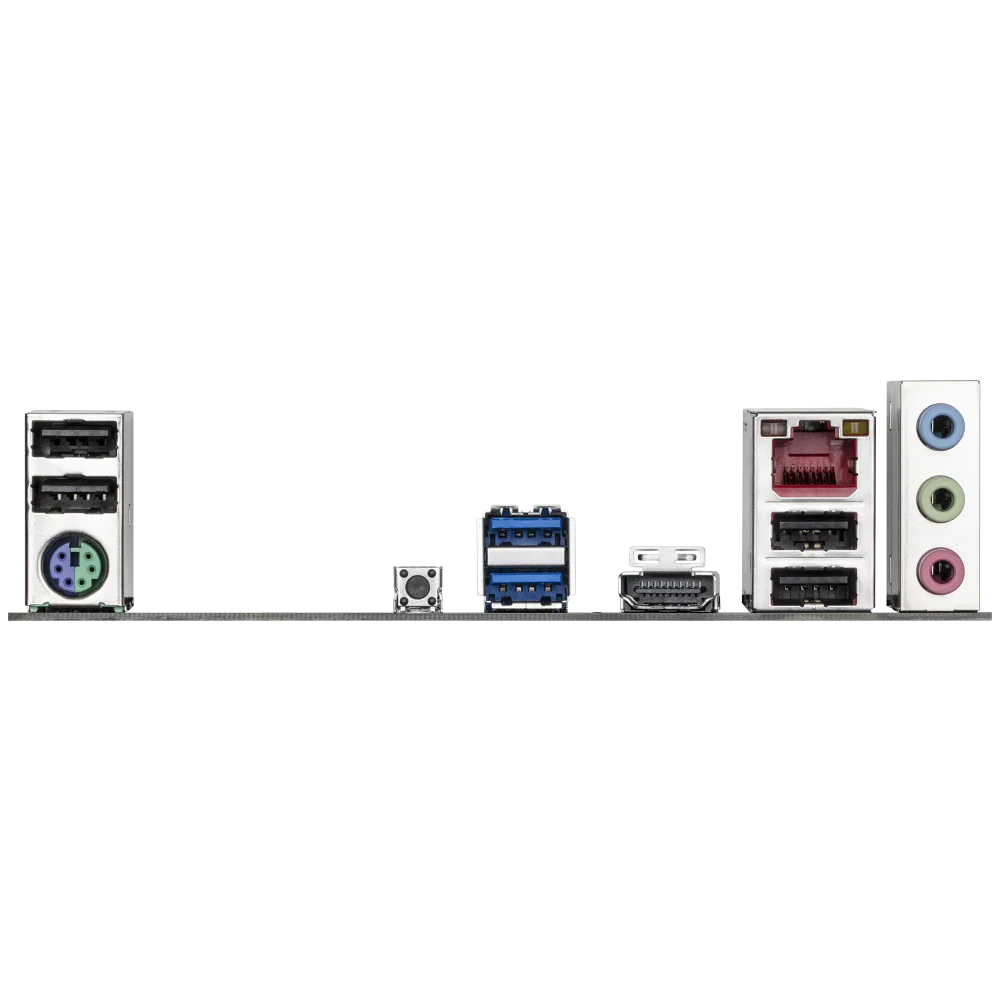

Back Panel Connectors	1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port* 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Shopping cart

Your cart is empty.

Return to shop

GIGABYTE B840M D2H AMD Motherboard

Have a question?

Description

Features of GIGABYTE B840M D2H AMD Motherboard

X3D Turbo Mode

One-Click Acceleration :

AORUS AI SNATCH

Auto CPU & DDR5 Memory Boost

One-Click Acceleration:

Fast AI Performance

Boost CPU & Memory Performance

Maximize performance in a snap

Smart & Safe overclocking

AI-Driven PCB Technology -Redefining PCB Design with Artificial Intelligence

Key Features:

AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity

Best-in-class Signal Quality

AI-ViaFusion Technology - AI-Engineered Via Design Formula

Unlock AI-Powered Performance with AI-ViaFusion Technology

AI-ViaFusion Technology - AI-Driven Revolution in PCB Design

AI-Trace Technology -Revolutionizing PCB Routing with AI

Mitigating Fiber Weave Effect with AI-Trace Technology

Benefits of Mitigation :

AI-Layer Technology -Next-Generation Multi-Layer PCB Design

Key Features:

Durable Performance

Digital VRM Design

Smart Fan 6

High Current Support

Precision Control

Dual Curve Mode

Fan Stop Technology

Enhance Fan Curve UI

Slope/Stair Dual Graph Mode

Manual Input

EZ Tuning

Fan Curve Profile

Exclusive BIOS Design

AMD EXPO™ Settings

Boost Performance

AMD EXPO™ User Profile

Custom SPD Profiles

Fast Performance Simulation

Profile Management

Enhance non-overclockable DDR5 Speeds

Instant Reset

Unmatched Hardware Excellence

Shielded Memory Routing

Daisy-Chained Routing

High-End Audio Capacitors

Audio Noise Guard

Multi-key

RGB Switch

Direct-To-BIOS

Safe Mode

Optimal DRAM Installation Indicator

Q-FLASH Auto Scan

Multi-Theme

AIO Fan Control

Refined BIOS Interface

Quick Access Function

AORUS & HWiNFO Co-branded OSD

Default AORUS skin

Memory Timings Monitor

Detailed BIOS information

Varnish your shine

Specifications of GIGABYTE B840M D2H AMD Motherboard

Additional Information

Shipping & Return

Reviews

Related Products

Recently viewed products

My Wishlist

Compare
