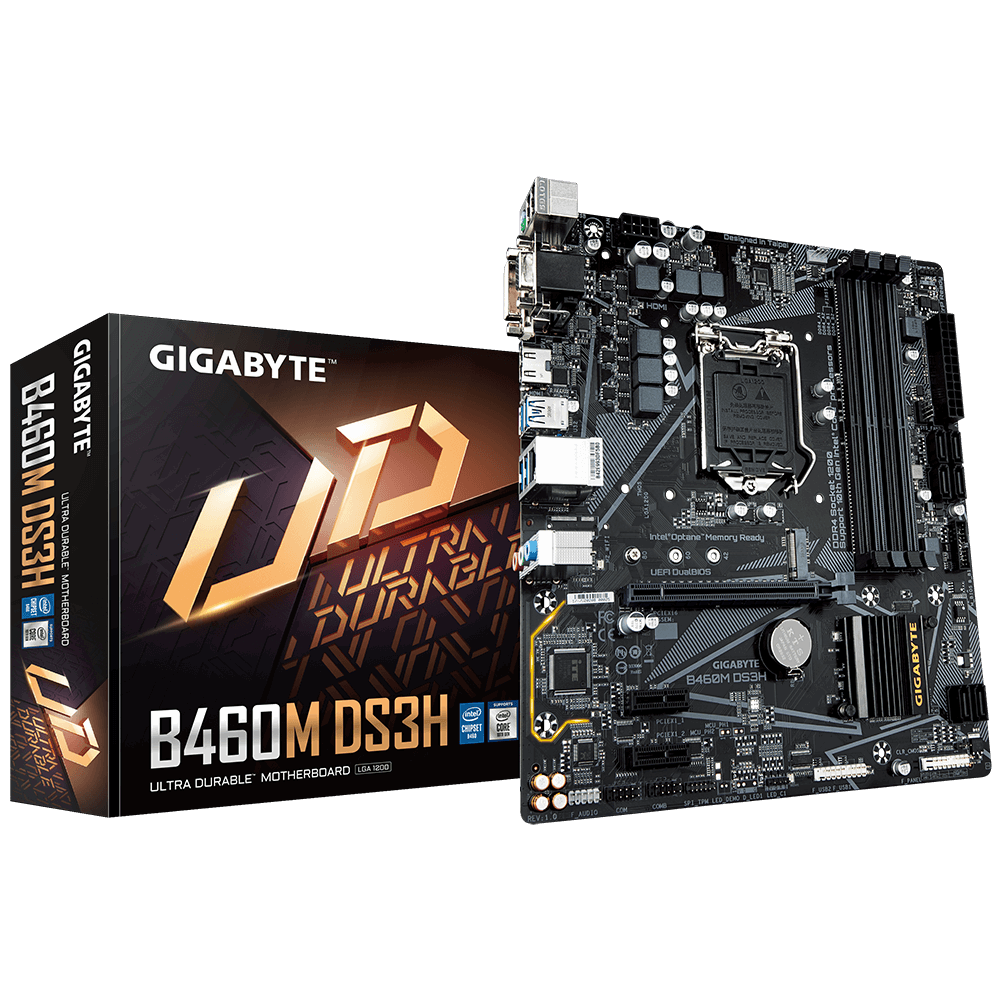

GIGABYTE B460M DS3H DDR4 Intel Motherboard

Name: GIGABYTE B460M DS3H DDR4 Intel Motherboard
Brand: Gigabyte
SKU: Gigabyte-B460M-DS3H
Price: 8893.5 INR
Availability: OutOfStock

Rs. 8,893.50 Rs. 10,525.00

Discount: Rs. 1,631.50 (16%)

17 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of Gigabyte B460M DS3H DDR4

Supports HD Graphics with the assistance of Integrated Graphics Processor-Intel Not only this but it even has an immersive sound quality of Realtek ALC887 codec, high and premium audio. It has 6 USB ports, precisely four on the back panel and the other two available through the internal USB header Some of the more unique features are fast boot, ambient LED to give satisfactory visuals, game boost to take your performance on the peak, and smart backup. H/W monitoring detects voltage, temperature, fan speed as well as overheating. Operating windows Supports for Windows 10 64-bit. It has a warranty of three years so just relax and concentrate on your play!

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
Intel® B460 Express Chipset
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

The Gigabyte B460M DS3H LGA 1200 Micro-ATX Motherboard is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and one M.2 slot for storage. This motherboard features a micro-ATX form factor, allowing for use in smaller cases. Other integrated features include Realtek Gigabit Ethernet RJ45 LAN, USB 3.2 Gen 1 Type-A, and more.

Intel B460 Chipset

This motherboard features the Intel B460 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core, Pentium Gold, and Celeron processors.

Storage

The single M.2 slot supports data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.

Gigabit Ethernet

This motherboard features a Realtek Gigabit Ethernet RJ45 LAN port, allowing gamers and streamers to have a fast, smooth online experience.

Specifications of Gigabyte B460M DS3H DDR4

CPU	Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU
Chipset	Intel® B460 Express Chipset
Memory	Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB
Audio	Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software."}"> Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN	Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
USB	Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x serial port headers 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Ambient LED Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
