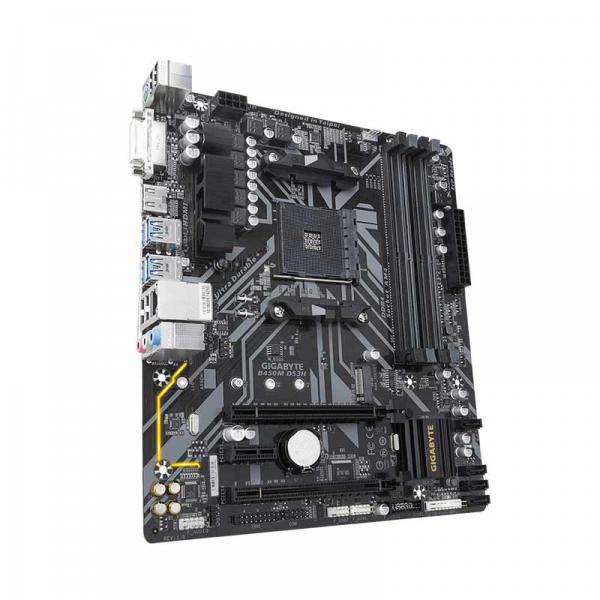

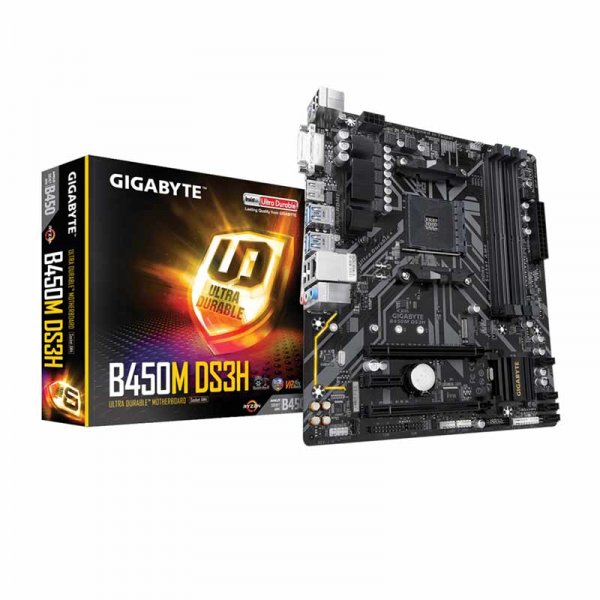

GIGABYTE B450M DS3H DDR4 AMD Motherboard

GIGABYTE B450M DS3H DDR4 AMD Motherboard

Name: GIGABYTE B450M DS3H DDR4 AMD Motherboard
Brand: Gigabyte
SKU: Gigabyte-B450M-DS3H
Price: 5732.02 INR
Availability: OutOfStock

Rs. 5,732.02 Rs. 8,499.00

Discount: Rs. 2,766.98 (33%)

23 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of GIGABYTE B450M DS3H DDR4 AMD Motherboard

Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB Fusion supports RGB LED Strips in 7-Colors
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Single Click

Specifications of GIGABYTE B450M DS3H DDR4 AMD Motherboard

CPU	AM4 Socket: AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset	1. AMD B450
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)* Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU.
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU.
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper

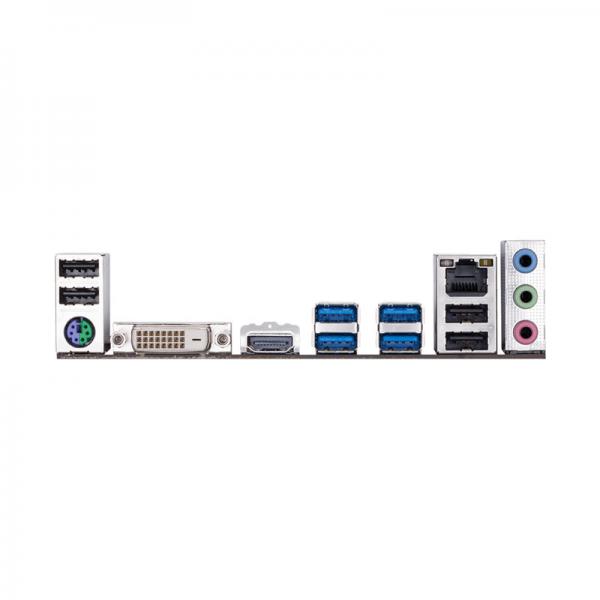

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOS3D OSDAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-TunerSupport for Q-Flash Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version) cFosSpeedOperating System
Operating System	Support for Windows 10 64-bit Support for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Form Factor	1. Micro ATX Form Factor; 24.4cm x 21.5cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
