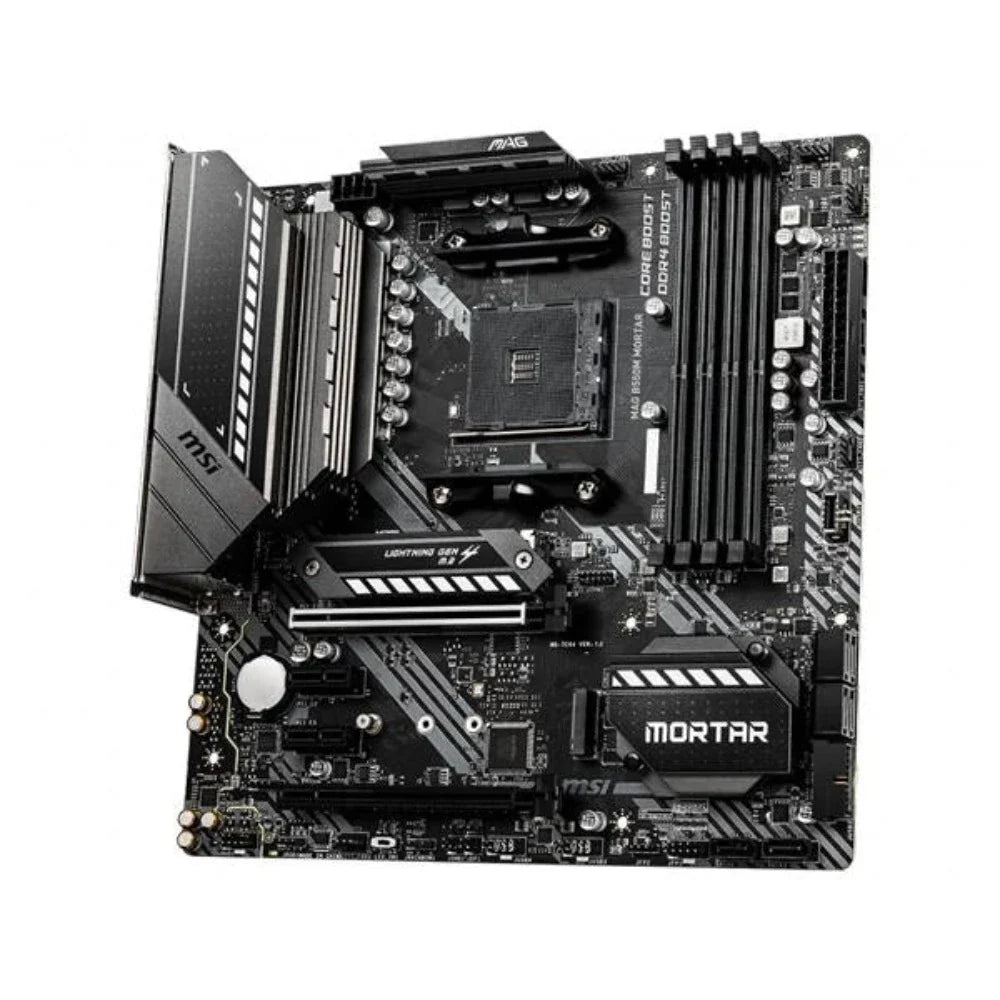

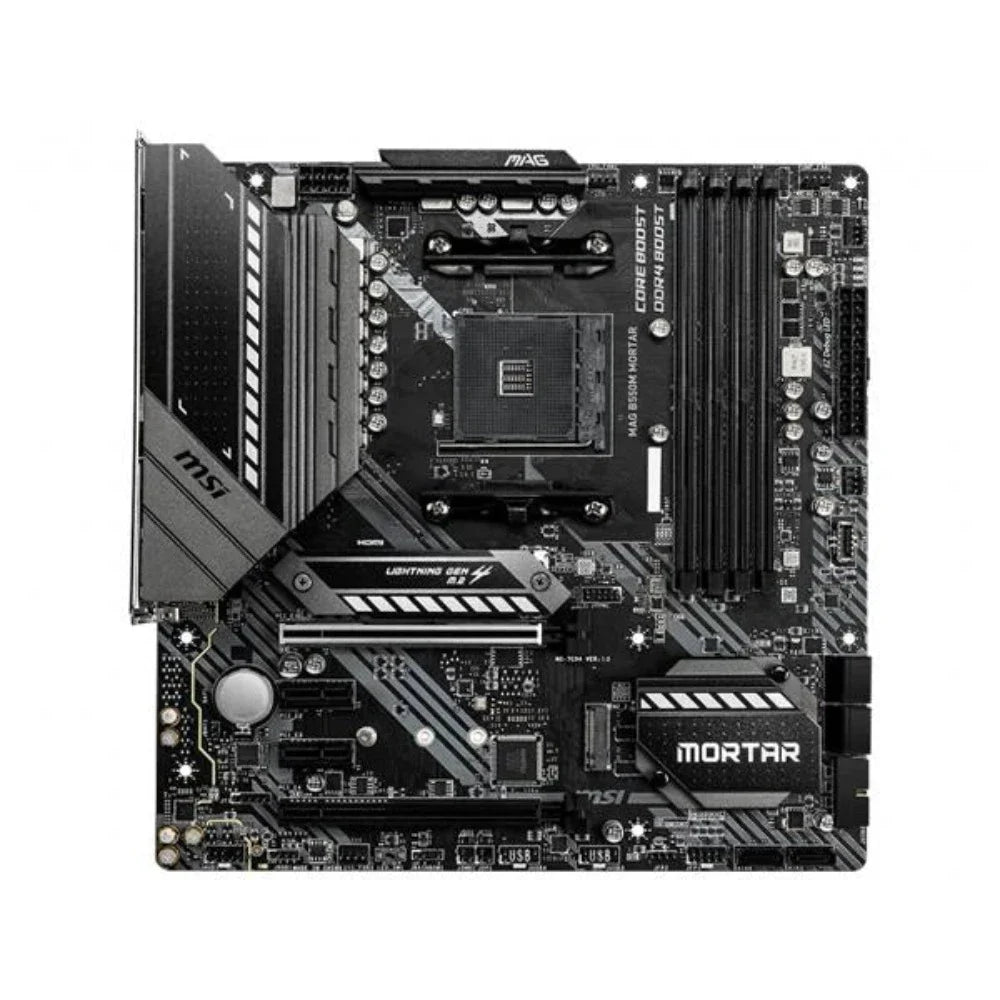

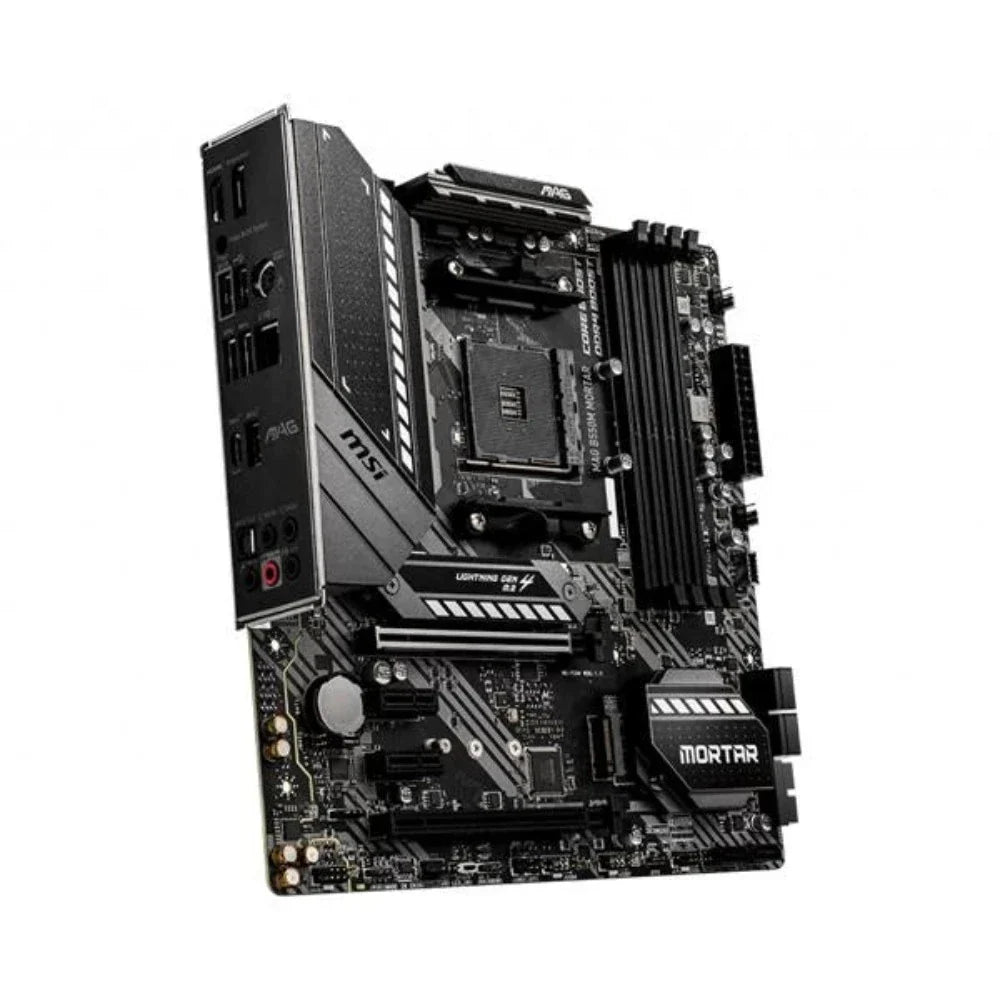

MSI MAG B550M Mortar MAX DDR4 AMD Motherboard

MSI MAG B550M Mortar MAX DDR4 AMD Motherboard

Name: MSI MAG B550M Mortar MAX DDR4 AMD Motherboard
Brand: MSI
SKU: msi-mag-b550m-mortar
Price: 15129.85 INR
Availability: OutOfStock

Rs. 15,129.85 Rs. 19,500.00

Discount: Rs. 4,370.15 (22%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jan 06 - Jan 10

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of MSI MAG B550M Mortar Max DDR4

MSI MAG B550M Mortar MAX is the most trusted name in gaming and eSports. We’ve dedicated countless hours and committed numerous resources to support the world’s most aspiring and best gamers and use their knowledge and expertise in our products in return. MSI integrated all gamer’s aspirational functions in its gaming rigs and pushing the performance beyond limits.

MAG B550M MORTAR

Advancing Ascension

Experience new generation of the MAG B550M MORTAR motherboard powered by 3rd Gen AMD 3000 series AM4 processors. Outperform your system’s capacity with Lightning Gen 4 solution and 2.5G LAN. Smart software tools DDR4 Boost and Core Boost, created to keep you one step ahead of the competition. Extended Heatsink Design, 7W/mK level thermal & choke pad with 2oz thickened copper help your PC remain cool, high performing and reliable.
Designed for 3rd Gen AMD Ryzen processors with Lightning Gen 4 M.2, PCIe 4.0, USB 3.2 Gen 2.
Addressable LED Ready with a JRAINBOW pinheader addressable RGB strips and control the RGB light all around the system.
Extended Heatsink Design improves VRM heat dissipation and ensures the power delivery system can sustain even high-end processors running at full load.
Front USB Type-C allows gamers to be compatible with the latest PC chassis and perfect for external drives and other mobile devices.

LIGHTNING GEN 4 SOLUTION

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

ENHANCED THERMAL SOLUTION

Higher performance generates more heat. Thermal solution is very important to B550 chipset which featured latest Gen4 bandwidth. MSI motherboards featured extended heatsink, 7W/mK level thermal & choke pad, 2oz thickened copper and M.2 Shield Frozr to provide best performance for enthusiast gamers and prosumers.

CORE BOOST

Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

Specifications Of MSI MAG B550M Mortar Max DDR4

Processor	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.
Multi-GPU	Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB
Storage	AMD B550 Chipset6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD processor)Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor.
RAID	AMD B550 ChipsetSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC1200 Codec7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

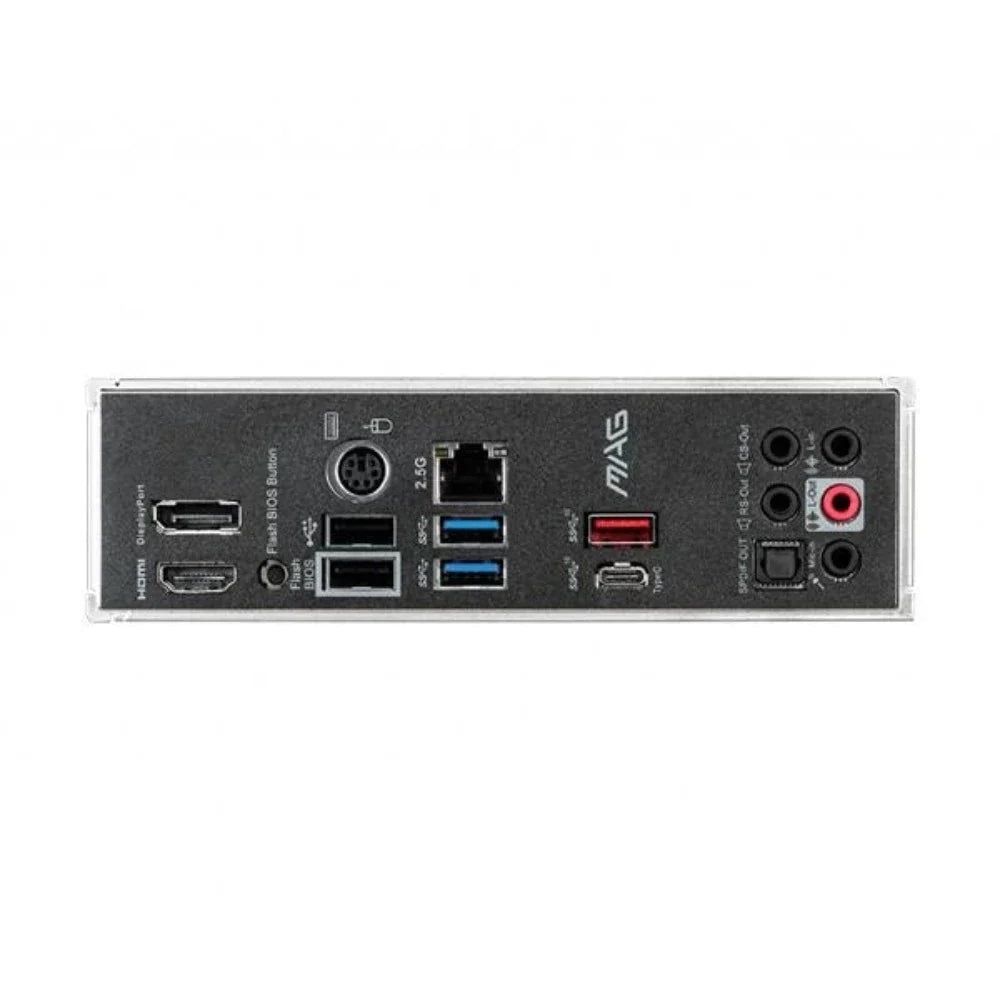

Back panel ports	DisplayPort PS/2 Combo Port 2.5G LAN Port USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors HDMI Port Flash BIOS Button USB 2.0 port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting	8 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
