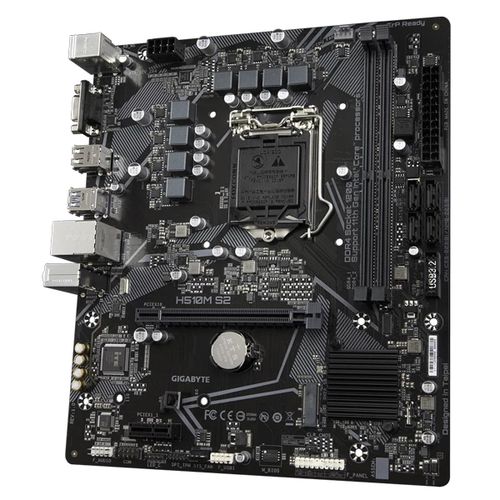

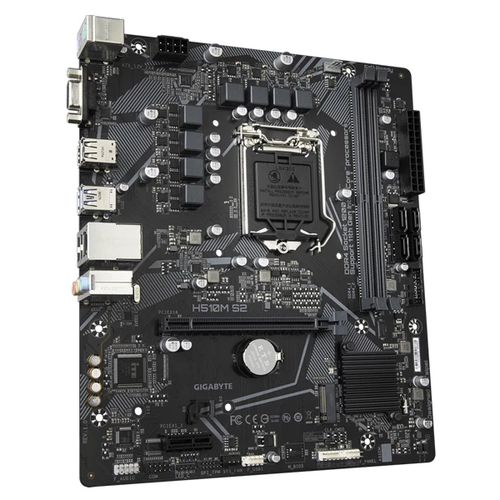

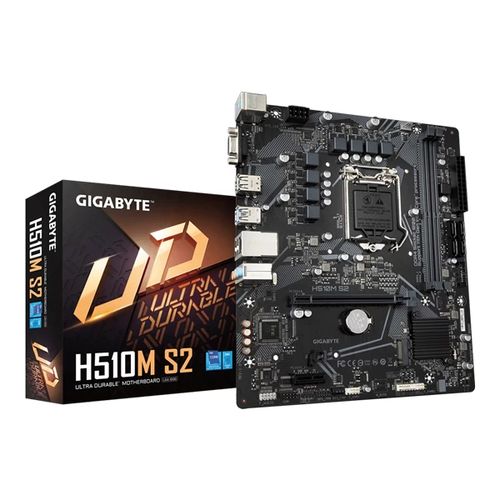

GIGABYTE H510M-S2 DDR4 Intel Motherboard

Feature of GIGABYTE H510M-S2 DDR4 Intel Motherboard

Intel H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor,  Smart Fan 6

• Supports 11th and 10th Gen Intel®  Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• High Quality Audio Capacitors and Audio Noise
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

6+2 Phases Low RDS(on) MOSFETs

Solid capacitors to improve transient response and minimize oscillation.

8-pin Solid Pin CPU Power Connector.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 22110 M.2 Connector

GIGABYTE H510M-S2 DDR4 Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Solid Pin Power Connectors

H510 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity

More metal quantity to sustain higher power and generated heat

Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Specifications of GIGABYTE H510M-S2 DDR4 Intel Motherboard
