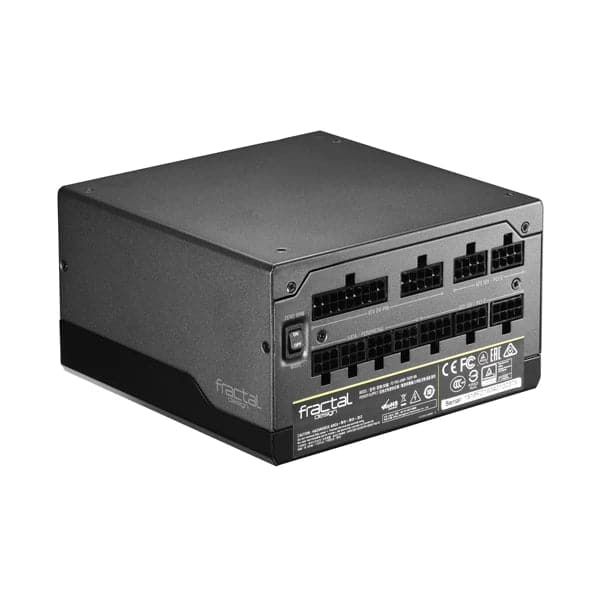

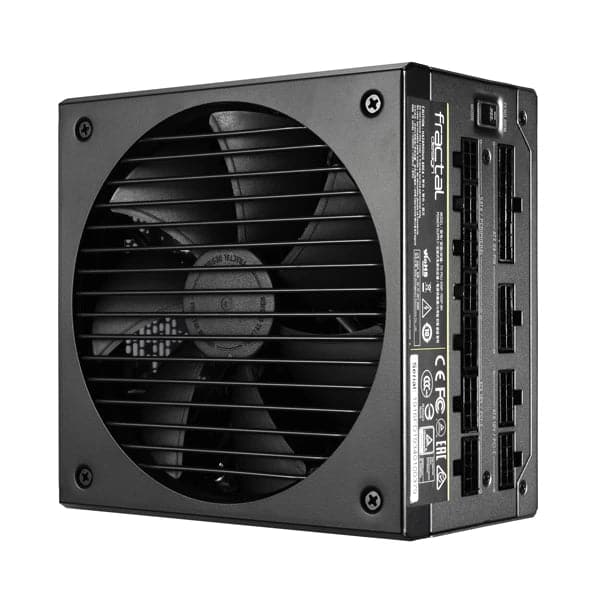

FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular ATX 2.0 Power Supply

FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular ATX 2.0 Power Supply

Name: FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular ATX 2.0 Power Supply
Brand: FRACTAL DESIGN
SKU: Fractal-ion+-760p-psu
Price: 13450.0 INR
Availability: InStock

Rs. 13,450.00 Rs. 21,677.00

Discount: Rs. 8,227.00 (38%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jan 02 - Jan 06

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular ATX 2.0 Power Supply

The Ion+ 750 W Power Supply is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality

UltraFlex DC wires for effortless cable-routing and connectors
Custom-tailored 140 mm fan with exceptionally low minimum speed
80 PLUS® Platinum Efficiency for optimized electrical performance

The power of silence

A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation.Ion+ is available now in 560, 660, 760 and 860 watt capacities, all with 80 PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.

Power with a plus

Fully modular design for reduced clutter and maximum ease of installation

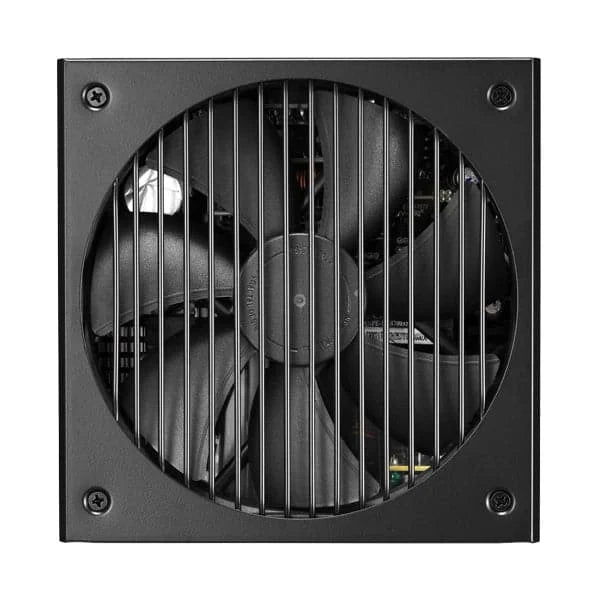

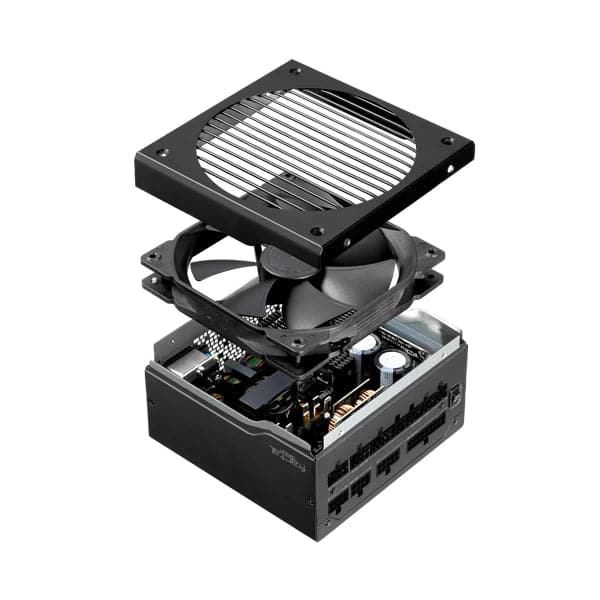

Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
Extensive 10 year warranty

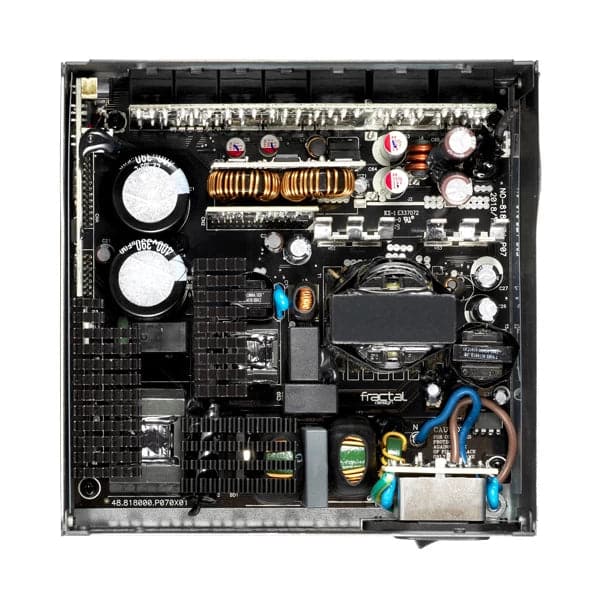

Japanese capacitors

Premium Japanese 105°C capacitors provide enhanced reliability and durability

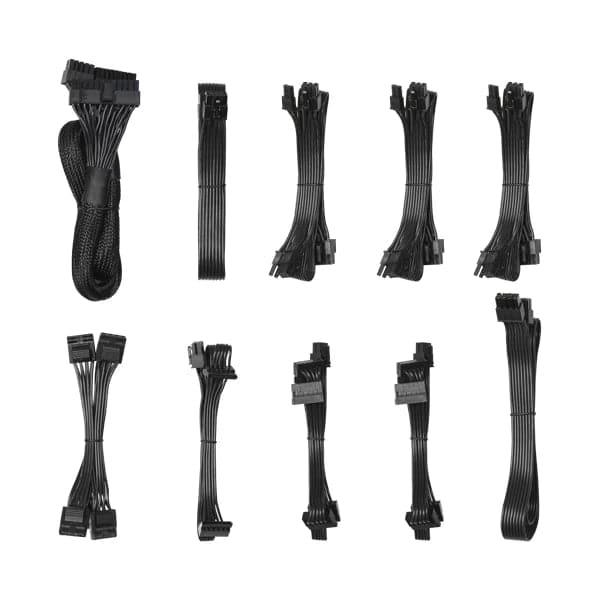

UltraFlex Cables

Fractal Design Power Supply UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it

Zero RPM

User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling

More power, less heat

The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.

80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
Outstanding output quality with tight voltage regulation and extremely low noise and ripple
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection

Get the best 80 Plus Platinum computer smps price from us today!

Specifications of FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular

Model	FD-PSU-IONP-760P-BK-EU
80 PLUS® Certification	Platinum
Modular cables	Fully modular
Cable type	Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire
Fan type	Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature at full load	50° C
Semi-passive operation	Yes, user selectable (Zero RPM)
Sleep State Compliance	C6/C7
Capacitors	Japanese
Protection features	Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
Approvals & Certifications	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Life expectancy (MTBF) at max output load	100,000 hours
Input voltage	100-240V AC
Input frequency	50-60 Hz
Input current	10A/5A
Number of 12V rails	1
PSU specification compliance	ATX12V 2.4 / EPS12V 2.92
Standby efficiency	ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
Unit measurements	150 x 150 x 86 mm
Unit weight (unit only)	1.665 kg

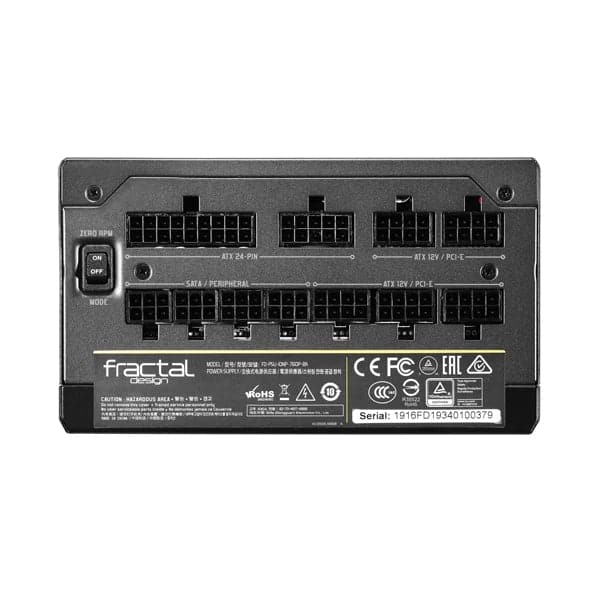

Connectors
ATX 24-pin	1
ATX12V 4+4 pin / EPS12V 8-pin	2
PCIe 6+2 pin	6
SATA	10
Peripheral	4
Cable configuration (length between connectors)
ATX 24-pin	600
ATX12V 4+4 pin	700
EPS12V 8-pin	600
PCIe 6+2 pin	550+120
SATA	400+120+120+120, 650+120
Peripheral	400+120+120+120

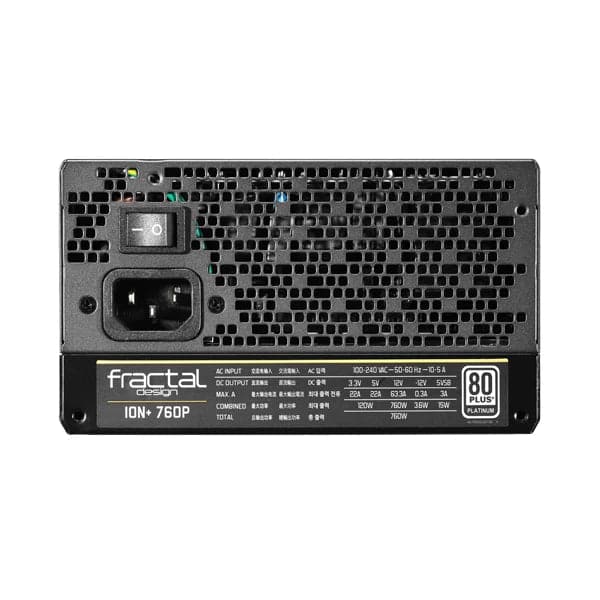

DC output
3.3 V	22A
5 V	22A
3.3 V and 5 V combined	120W
12 V	63.3A
-12 V	0.3A
5 V Standby (+5 Vsb)	3A
Total Power	760W
Other
Package dimensions (W x H x D)	325 x 110 x 210 mm
Package weight	2.975 kg
Package content	Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
Warranty	10 Years
Note	***Features, Price and Specifications are subject to change without notice.
