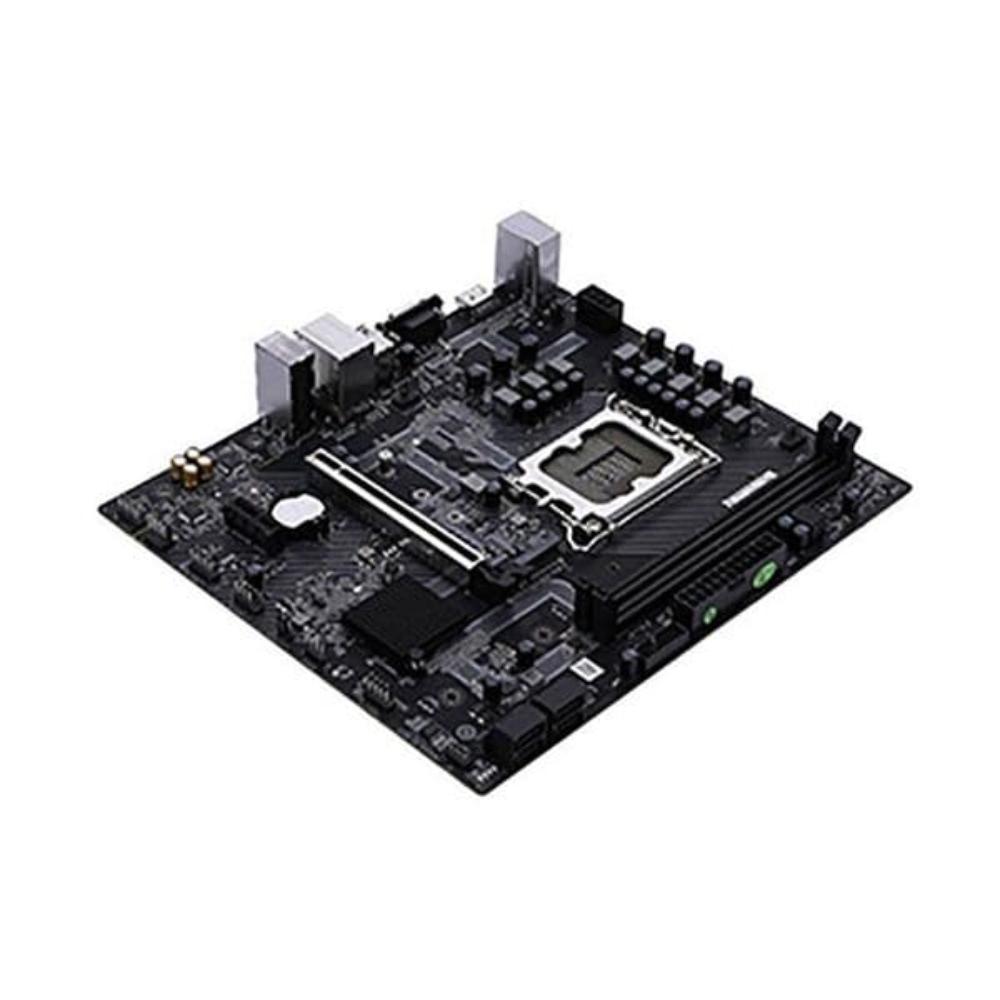

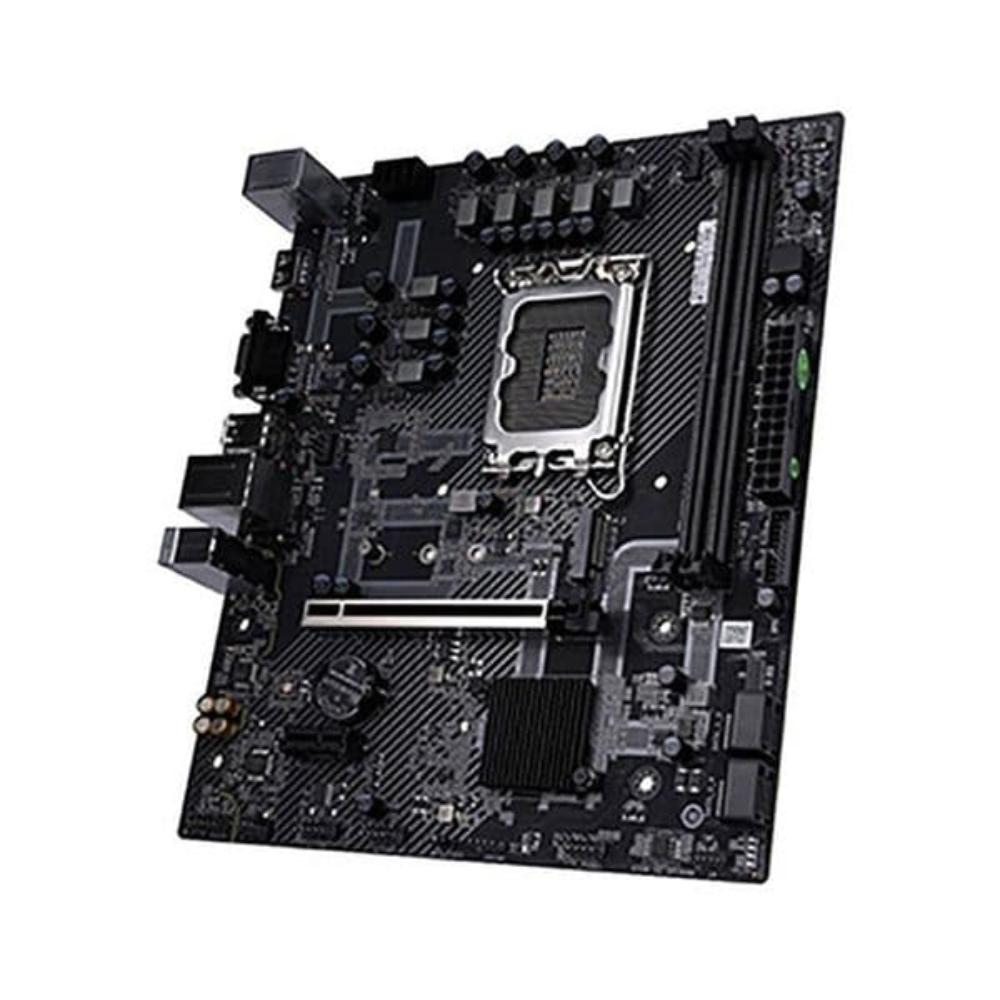

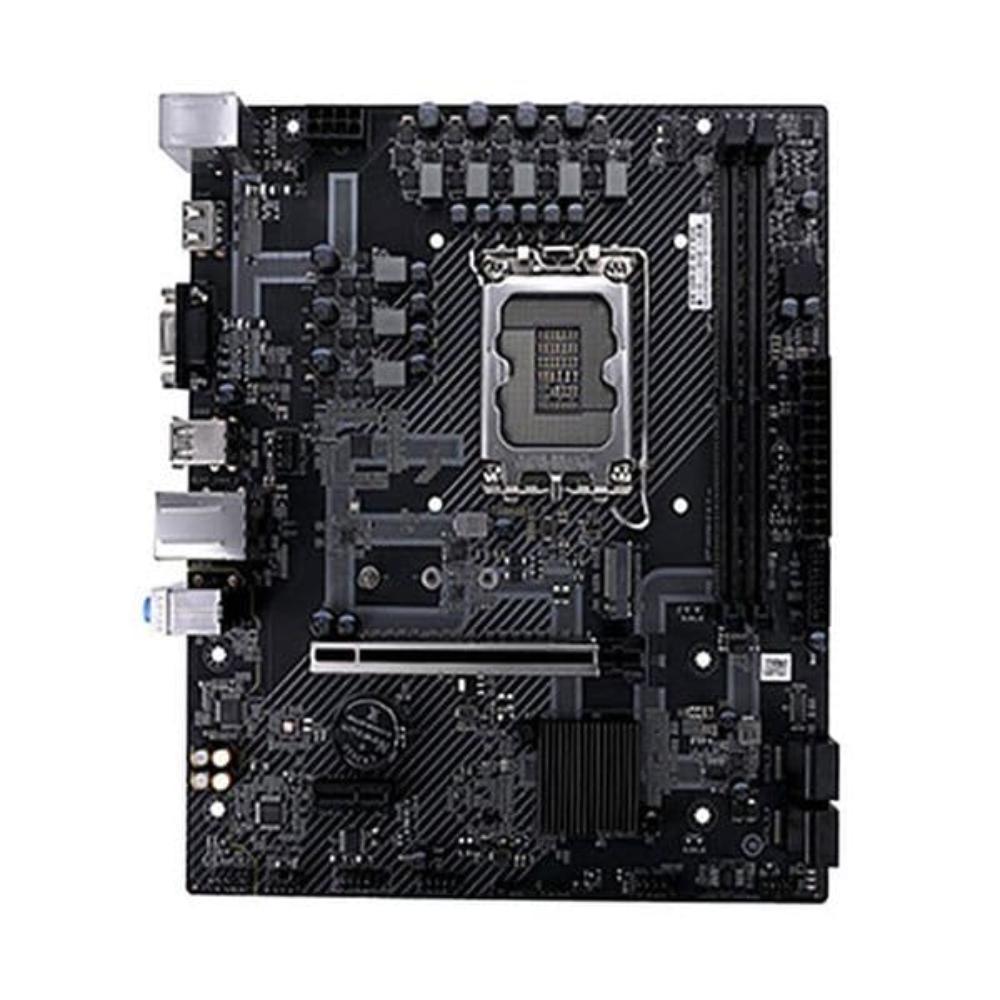

COLORFUL H610M-D M.2 V20 DDR4 Intel Motherboard

Feature of COLORFUL H610M-D M.2 V20 DDR4 Intel Motherboard

Colorful H610M-D M.2 V20 DDR4 Intel Motherboard

Motherboard Series Colorful Chipset Intel H610 Processor Supports 12th Gen Intel® Core Processors (Socket 1700) Memory 2 DIMM slots, support dual channel DDR4-3200/3000/2800/2666/2400 MHz; Graphics Support 1*PCI Express 4.0 x 16 slot SATA Ports 4*SATA 3.0 6Gb/s ports Board I/O 1*HDMI port, 1*VGA port; 4*USB 2.0 ports, 2*USB 3.2 Gen1 ports; 3*audio ports; Expansion Slots 1*PCI Express 4.0 x16 slot, 1*PCI Express 3.0X 1 slot, 1*M. 2 slot; BIOS 128M UEFI Hardware Monitor CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring LAN 1000Mbit LAN Audio 6-Channel High Definition audio Configuration 235mm x 205mm, M-ATX

Technical Detail

Brand : Colorful
Modal : H610M-D M.2 V20

Technical Spec

Motherboard Series : Colorful
Chipset : Intel H610
Processor : Supports 12th Gen Intel® Core™ Processors (Socket 1700)
Memory : 2 DIMM slots， support dual-channel DDR4-3200/3000/2800/2666/2400 MHz ;
Graphics Support : 1*PCI Express 4.0 x 16 slot
SATA Ports : 4*SATA3.0 6Gb/s ports
Board I/O : 1*HDMI port,1*VGA port; 4*USB 2.0 ports,2*USB 3.2 Gen1 ports; 3*audio ports;
Expansion Slots : 1*PCI Express 4.0×16 slot,1*PCI Express3.0X1 slot,1*M.2 slot;
BIOS : 128M UEFI
Hardware Monitor : CPU Fan speed Controlled， SYSTEM Fan Speed Monitoring, CPU Temperature Monitoring， System Temperature Monitoring， and Voltage monitoring
LAN : 1000Mbit LAN
Audio : 6-Channel High Definition audio
Configuration : 235mm x 205mm, M-ATX

Specifications of COLORFUL H610M-D M.2 V20 DDR4 Intel Motherboard
