ASUS Prime B550M-A Wifi DDR4 AMD Motherboard

ASUS Prime B550M-A Wifi DDR4 AMD Motherboard

Name: ASUS Prime B550M-A Wifi DDR4 AMD Motherboard
Brand: Asus
SKU: ASUS-PRIME-B550M-A-(WI-FI)
Price: 10724.26 INR
Availability: OutOfStock

Rs. 10,724.26 Rs. 19,900.00

Discount: Rs. 9,175.74 (46%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jan 04 - Jan 08

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of ASUS Prime B550M-A Wifi DDR4

AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
Ultrafast Connectivity: 1x PCIe 4. 0 x16 SafeSlot, WiFi 6 (802. 11ax), 1Gb LAN, dual M. 2 slots (NVMe SSD)—one with PCIe 4. 0 x4 connectivity, USB 3. 2 Gen 2 Type A , HDMI 2. 1 (4K@60HZ), D Sub & DVI
Comprehensive Cooling: VRM heatsink, chipset heatsink, hybrid fan headers and Fan Xpert 2 utility
5X Protection III: all round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless steel back I/O
Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.
Enhanced Power Solution: 8+1 DrMOS power stages with high quality alloy chokes and durable capacitors to provide reliable power for the last AMD high count core CPUs
Aura Sync RGB: Synchronizable LED effects across a wide range of compatible PC gear, plus RGB LED and Addressable Gen 2 RGB headers for greater customization

Product description

Powered by 3rd Gen AMD Ryzen processors, the ASUS Prime B550M-A WiFi 6 delivers next-generation speeds with PCIe 4. 0, WiFi 6 and 1Gb LAN. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the ASUS Prime B550M-A WiFi 6 provides mainstream PC users and DIY PC builders with a perfect all-around foundation via intuitive software and firmware features.

From the manufacturer

PCIe 4.0-Ready

ASUS Prime B550M-A Wifi DDR4 has two M.2 slots, including the latest PCIe 4.0, to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost.

Next-gen Networking

WIFI 6 (802.11AX)

The latest WiFi 6 (802.11ax) standard delivers high-efficiency wireless connectivity for better gaming performance on compatible networks.

Enhanced Cooling

A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Fastest Connectivity

Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Specifications of ASUS Prime B550M-A Wifi DDR4

CPU	Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset	AMD B550
Memory	3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Next Generation AMD Ryzen PRO Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.) /3200/3000/2800 /2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Graphic	1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Expansion Slots	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN	Realtek RTL8111H 1Gb Ethernet
Wireless Data Network	Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface
Bluetooth	Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio	Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB Ports	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi VRM Fan Xpert 2 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control

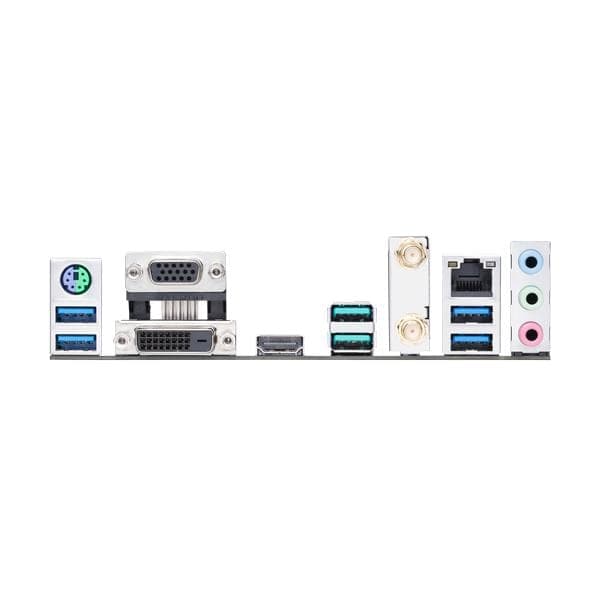

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PXE
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
