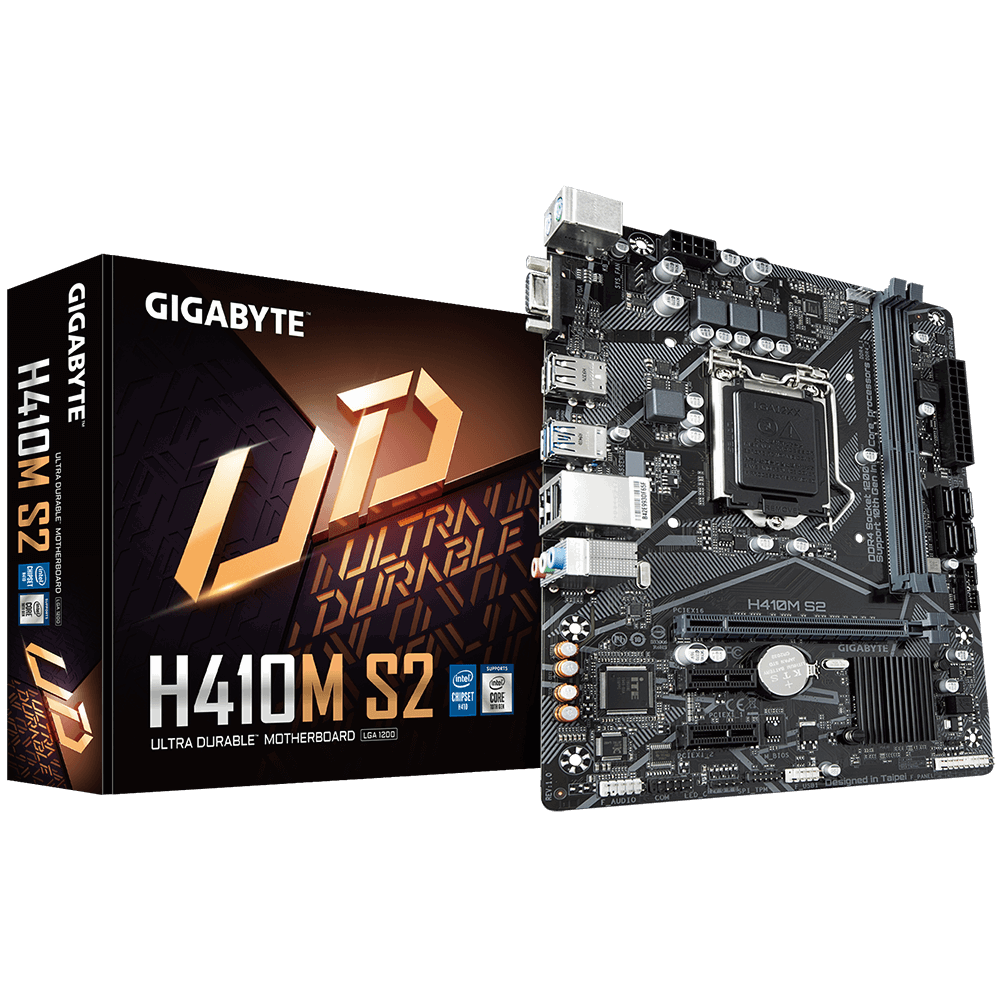

GIGABYTE H410M S2 DDR4 Intel Motherboard

Feature Gigabyte H410M S2 DDR4

GIGABYTE H410M S2 DDR4 has a huge memory of 512 GB! Supports HD Graphics with the assistance of Integrated Graphics Processor-Intel Not only this but it even has an immersive sound quality of Realtek ALC887 codec, high and premium audio. One more addition to the list is that Gigabyte H410M S2 Supports up to ASPM L1.2 power management protocols. It has 4 USB ports, precisely two on the back panel and the other two available through the internal USB header Some of the more unique features are fast boot, ambient LED to give satisfactory visuals, game boost to take your performance on the peak, and smart backup. It has a warranty of three years so just relax and concentrate on your play!

1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
2. L3 cache varies with CPU
3. Intel® H410 Express
4. Integrated Graphics Processor-Intel® HD Graphics support:
5. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
6. Maximum shared memory of 512 MB
7. Intel® Core™ i9/i7 processors:
8. Support for DDR4 2933/2666/2400/2133 MHz memory modules
9. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
10. Support for DDR4 2666/2400/2133 MHz memory modules
11. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
12. Dual channel memory architecture
13. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
14. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
15. Support for Extreme Memory Profile (XMP) memory modules

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly

Fan Stop

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications Gigabyte H410M S2 DDR4
