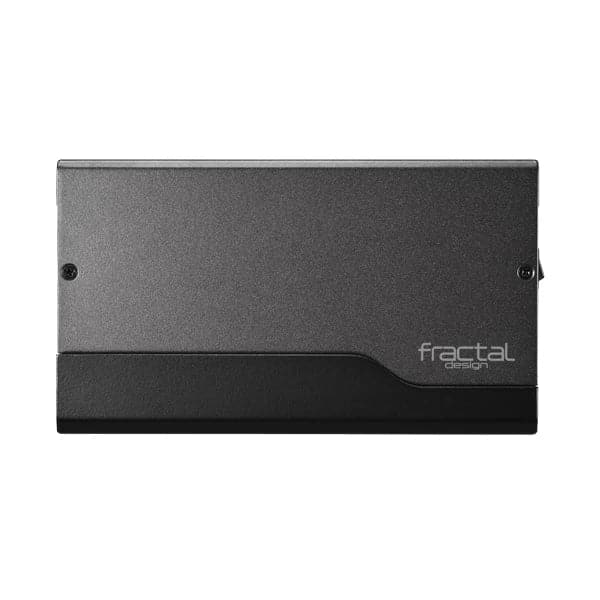

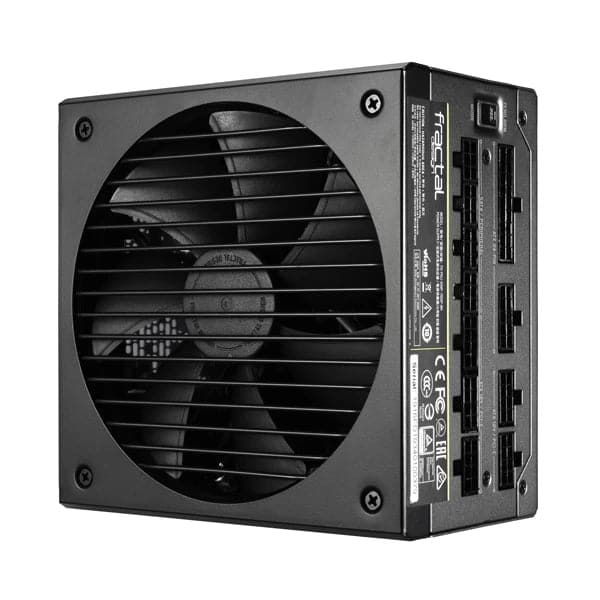

Features of FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular ATX 2.0 Power Supply
The Ion+ 750 W Power Supply is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
- UltraFlex DC wires for effortless cable-routing and connectors

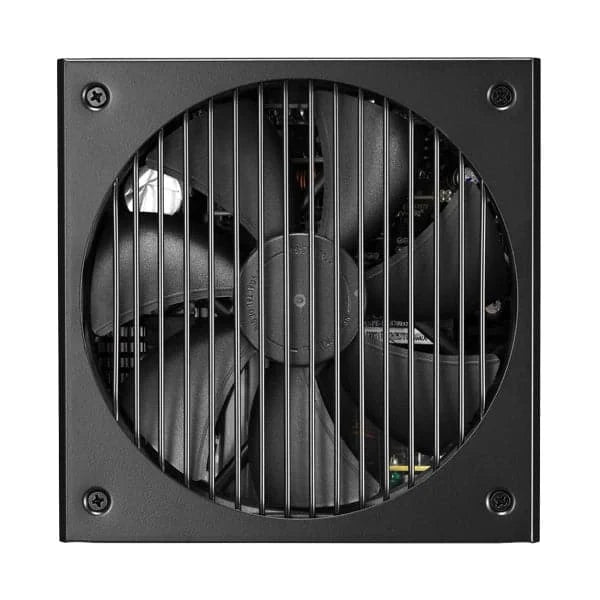

- Custom-tailored 140 mm fan with exceptionally low minimum speed
- 80 PLUS® Platinum Efficiency for optimized electrical performance
The power of silence
Power with a plus
- Fully modular design for reduced clutter and maximum ease of installation

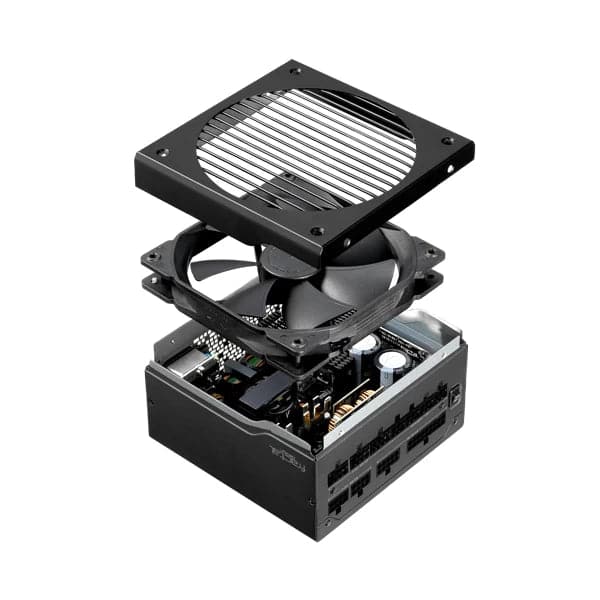

- Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
- Extensive 10 year warranty

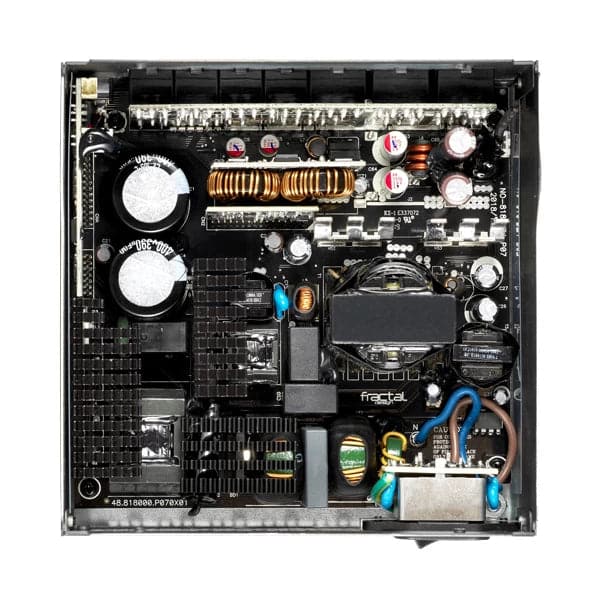

Japanese capacitors

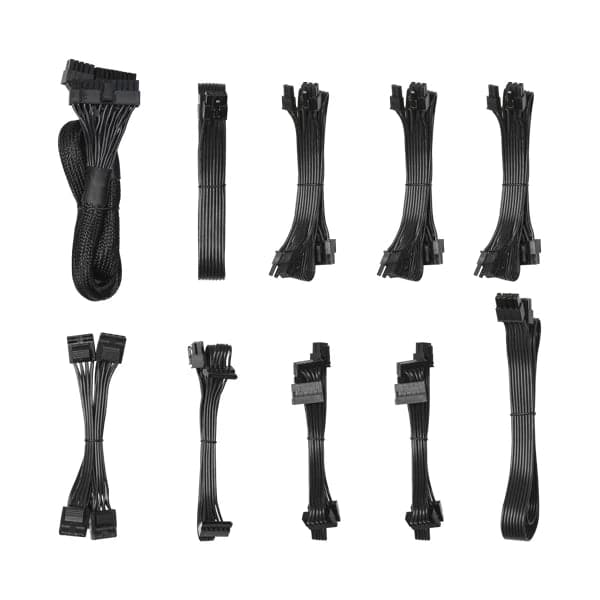

UltraFlex Cables
Zero RPM
More power, less heat
- 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
- Outstanding output quality with tight voltage regulation and extremely low noise and ripple
- Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
Get the best 80 Plus Platinum computer smps price from us today!
Specifications of FRACTAL DESIGN Ion+ 760W 80+ Platinum Fully Modular
| Model | FD-PSU-IONP-760P-BK-EU |
| 80 PLUS® Certification | Platinum |
| Modular cables | Fully modular |
| Cable type | Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire |
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Capacitors | Japanese |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.665 kg |

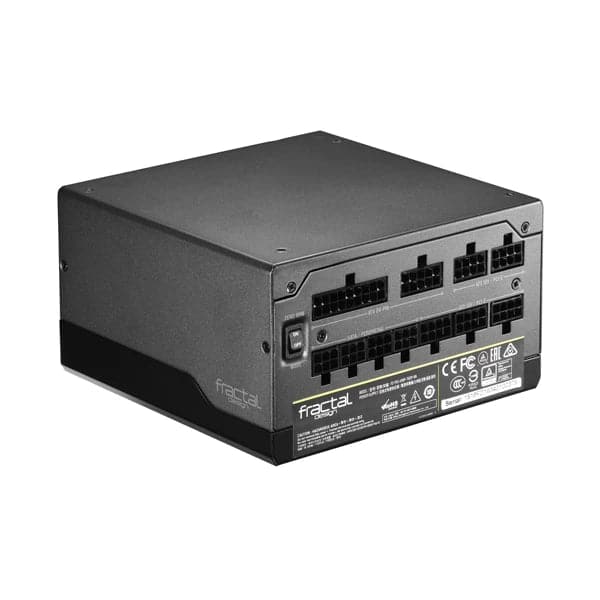

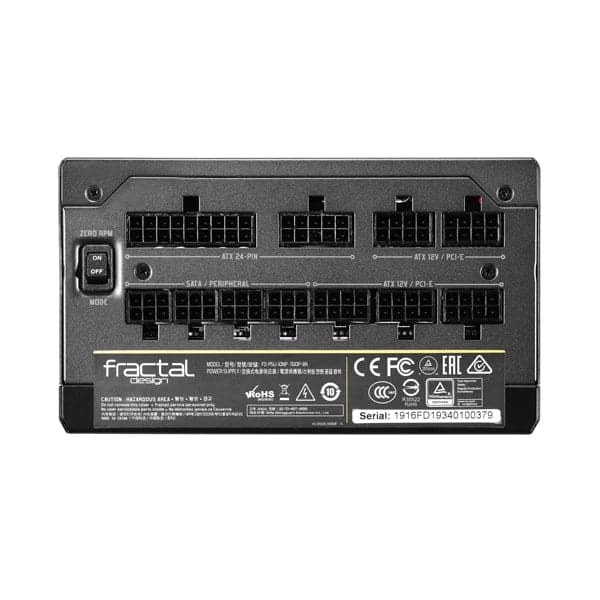

| Connectors | |
| ATX 24-pin | 1 |
| ATX12V 4+4 pin / EPS12V 8-pin | 2 |
| PCIe 6+2 pin | 6 |
| SATA | 10 |
| Peripheral | 4 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600 |
| ATX12V 4+4 pin | 700 |
| EPS12V 8-pin | 600 |
| PCIe 6+2 pin | 550+120 |
| SATA | 400+120+120+120, 650+120 |
| Peripheral | 400+120+120+120 |

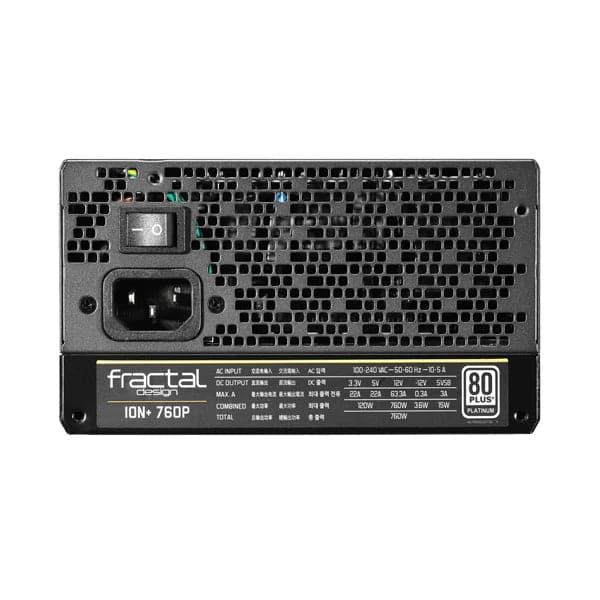

| DC output | |
| 3.3 V | 22A |
| 5 V | 22A |
| 3.3 V and 5 V combined | 120W |
| 12 V | 63.3A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 760W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package weight | 2.975 kg |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
