Description

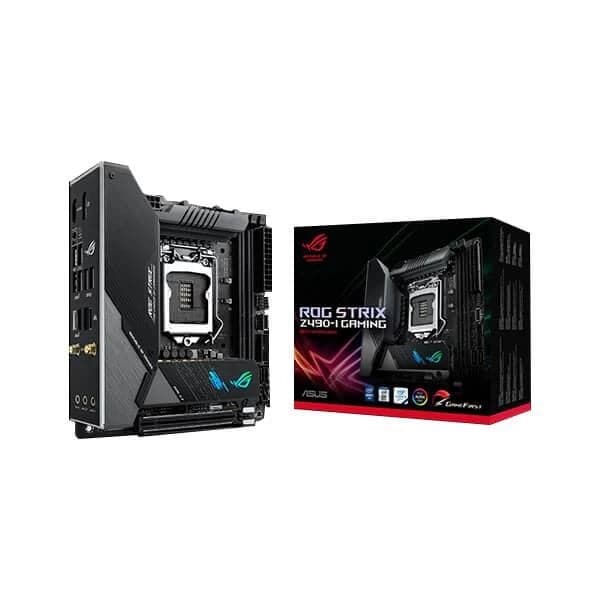

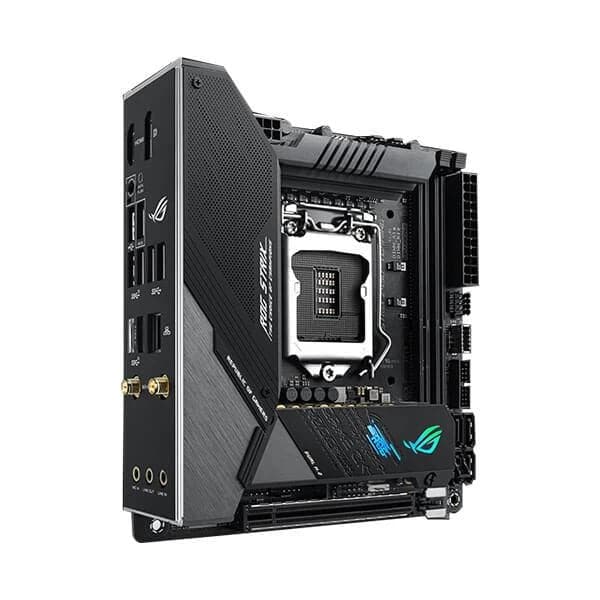

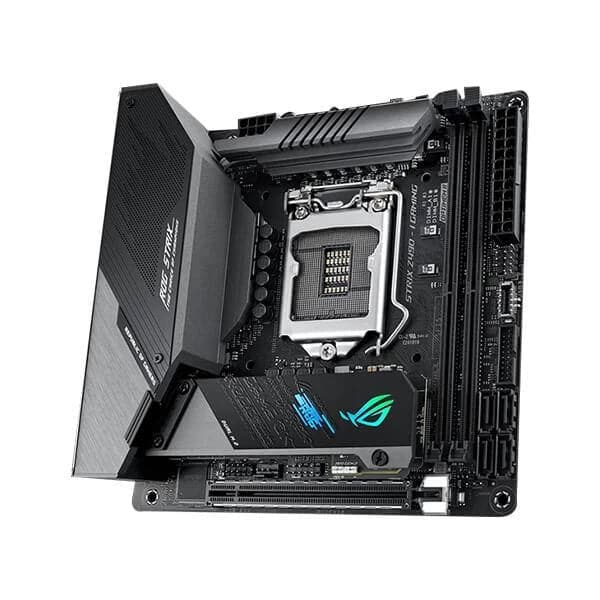

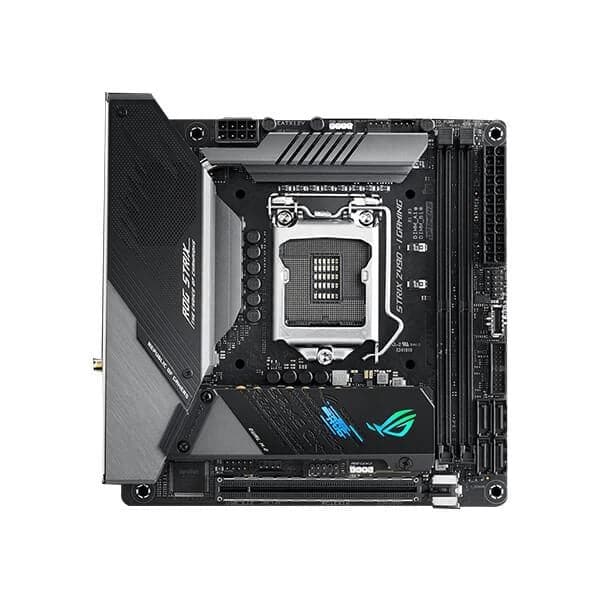

Feature of ASUS ROG Strix Z490-I Gaming DDR4
ALL-ROUND PERFORMANCE
ASUS ROG Strix Z490-I Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.
LEADING CONNECTIVITIY
ROG Strix Z490-I Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.
DDR4 OC 4800MHz
ROG Strix Z490-I Gaming supports up to 64GB DDR4 memory across two slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins.
Double-capacity DIMM support
ROG Strix Z490-I Gaming has a unique memory-trace design that supports up to 32 GB per DIMM slot to give you a total memory capacity of 64 GB. With double-capacity DDR4 DIMM modules, the compact ROG Strix Z490-I matches the memory capacity of four-DIMM motherboard designs.
Dual PCIe 3.0 M.2
Two M.2 slots are available, with both supporting SATA and PCIe 3.0 x4 modes. Together, they give you the fastest and most-flexible M.2 interface available.
PLAY YOUR OWN STYLE
The cyberpunk-inspired aesthetics are accentuated by the bold slashes and cybertext. Together with the most diverse ROG ecosystem, Pair your ROG Strix Z490-I Gaming with other ROG products to customize a gaming rig that reflects your personal style.
UNDENIABLY ROG STRIX
Aesthetically, ROG Strix Z490-I Gaming keeps it low key, with black and grey finishes complemented by cybertext markings across the Triple-decker Heatsink.
ROG GIVES YOU MORE
ROG exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
5-WAY OPTIMIZATION
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.
TPU INSIGHT
The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings. We have upgraded this tool to provide AI Overclocking prediction values for users who want more insight when experimenting with different settings.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Specifications of ASUS ROG Strix Z490-I Gaming DDR4
| CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z490 |
| Memory |
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800(O.C.)/ 2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 2.0a *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Expansion Slots |
Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| LAN |
Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless Data Network |
Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
| Bluetooth |
Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * LED-illuminated audio jacks Audio Feature : - Audio Shielding - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Rear USB Port ( Total 8 ) 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
| Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Xpert 4 Turbo app - EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| ASUS Special Features |
ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - Standard RGB header - Addressable Gen 2 RGB header |
| Back I/O Ports |
1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header 1 x Addressable Gen 2 header(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x Thermal sensor connector 1 x USB 3.2 Gen 2 front panel connector 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
| Accessories |
User's manual 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x Panel cable 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 ROG key chain |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Warranty | 3 Years |
| Note |
*1 Support PCIe bifurcation for RAID on CPU function. *2 When the M.2_2 Socket is operating in SATA mode, SATA port 2 will be disabled.*Features, Price and Specifications are subject to change without notice. |
