Description

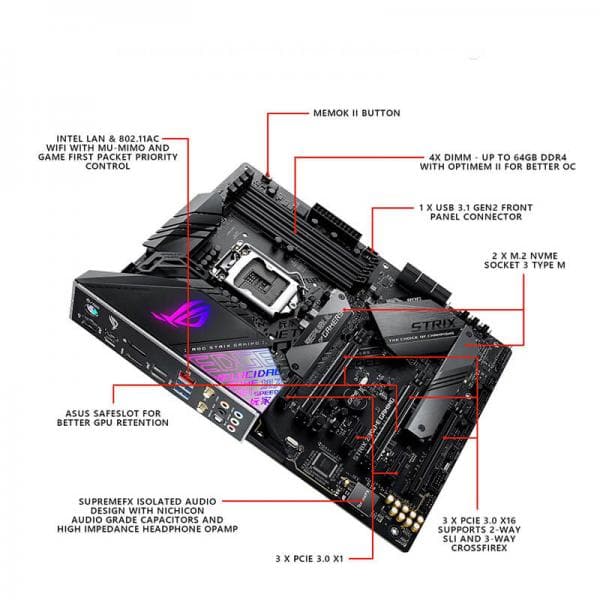

Feature of ASUS ROG Strix Z390-E Gaming Wifi DDR4
- LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors

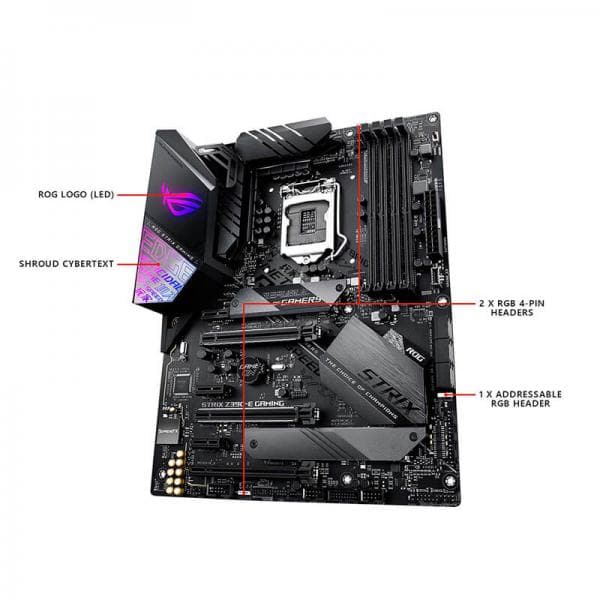

- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- Comprehensive cooling: Dual onboard M.2 heatsink, water-pump header, fan-extension header and a MOS fan with bracket
- 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance
ROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.
Specifications of ASUS ROG Strix Z390-E Gaming Wifi DDR4
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® Z390 |
| Memory |
4 x DIMM, Max. 64GB,DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/
3400(O.C.)/3333(O.C.)/3300(O.C.)/ 3200(O.C.)/3000(O.C.) /2800(O.C.)/ 2666/2400/2133 MHAz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI™ TechnologySupports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)1 x PCIe 3.0/2.0 x16 (max at x4 mode)3 x PCIe 3.0/2.0 x1 |
| Storage | Intel® Z390 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*21 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Optane™ Memory Ready |
| LAN | Intel® I219VAnti-surge LANGuardROG GameFirst Technology |
| Wireless Data Network | Intel® Wireless-AC 9560Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMO |
| Bluetooth | Bluetooth® 5.0 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *2Audio Feature :- SupremeFX Shielding™ Technology- Optical S/PDIF out port(s) at back panel- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| USB Ports | Intel® Z390 Chipset :1 x USB 3.1 Gen 2 front panel connector port(s)Intel® Z390 Chipset :4 x USB 3.1 Gen 2 port(s) (3 x Type-A 1 x USB Type-CTM)Intel® Z390 Chipset :4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)Intel® Z390 Chipset :6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| ROG Exclusive Features | ROG Exclusive Software- RAMCache III- CPU-Z- GameFirst V- Sonic Studio III Sonic Studio Link- Sonic Radar III |
| Special Features | OC Design - ASUS PRO Clock Technology- Full BCLK range for extreme overclocking performance5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI VRM, Fan Expert 4, and Turbo AppAI OverclockingASUS Optimem II：- Improved DDR4 StabilityAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devices- Aura Addressable Strip Header(s)ASUS Exclusive Features :- MemOK! II- AI Suite 3- Ai Charger- Armoury Crate- Pre-mounted I/O Shield- ASUS NODE: hardware control interfaceASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMGaming Aesthetics :- 3D printing friendly- AURA-RGB LightingDigi VRMM.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)DIY Friendly Design- Procool- SafeSlot- Digi VRM- DRAM Overcurrent Protection- Highly Durable components- ESD Guards |

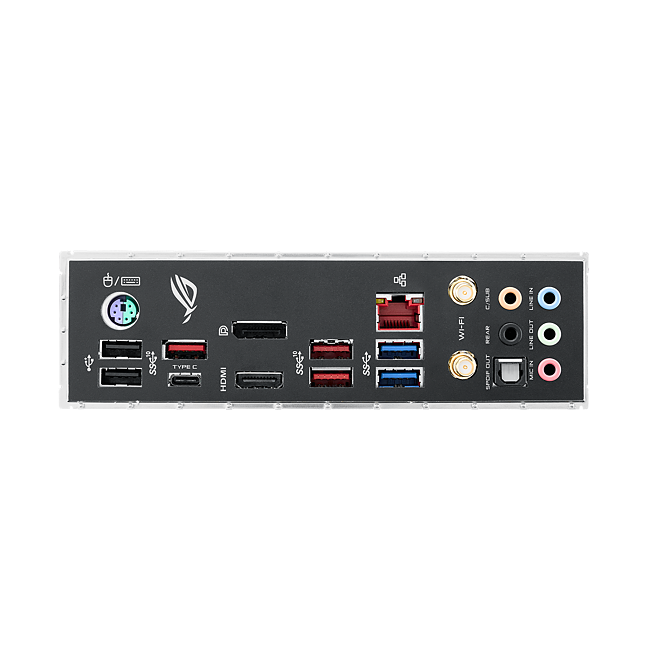

| Back I/O Ports | 1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 2 (3 x Type-A 1 x USB Type-CTM)2 x USB 3.1 Gen 12 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x ASUS Wi-Fi Module |
| Internal I/O Ports | 1 x Aura Addressable Strip Header(s)1 x AAFP connector2 x Aura RGB Strip Header(s)1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s connector(s)1 x M.2_FAN connector1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x W_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x 5-pin EXT_FAN(Extension Fan) connector1 x MemOK! II switch(es)1 x Thermal sensor connector(s)1 x CPU OV1 x Clear CMOS jumper(s)1 x Node Connector(s)1 x 14-1 pin TPM connector1 x COM port header1 x AIO PUMP Header1 x USB 3.1 Gen 2 front panel connector |
| Accessories | User's manual4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x CABLE TIE BLACK1 x SLI HB BRIDGE(2-WAY-M)1 x ROG Strix stickers1 x Assistant Fans(40mm)1 x screws for Assistant Fan(s)1 x ROG Door Hanger(s)1 x Extension Cable for RGB strips (80 cm)1 x Extension cable for Addressable LED1 x Thermistor cable(s) |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
| Manageability | WOL , PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
