Feature of ASUS EX-A320M Gaming DDR4
The ASUS EX-A320M Gaming DDR4 motherboard is a micro-ATX motherboard with features like AURA SYNC for system-wide RGB control, Anti-moisture coating, USB Guard, and Gold Plated connectors. The Asus Ex-A320M-Gaming motherboard has been built for non-stop action and gaming with higher durability. The motherboard has 100% protection against moisture and corrosion with the new innovative moisture-resistant coating that combats the higher level of humidity. The Gold Plated PCIe x16 connector and LAN design has now up to 6x stronger durability using a premium 30-micron-thick gold plated connector and 15-micron-thick gold-plated PCIe x16 port. The USB Guard protects the Ex-A320M-Gaming motherboard from 120% higher overvoltage reducing the risk of damage and protecting the equipment.
The new safe slot designed and engineered by Asus protects your new graphics card with superior retention and resistance. The support for newer and faster DDR4 memory modules means more flexibility and greater compatibility. Asus Ex-A320M Gaming is VR ready perfect for cafe owners wanting to expand the VR experience. The Asus Ex-A320M-Gaming motherboard has a GUI-based easy to use UEFI BIOS that has been improved to make it more appealing to a PC novice and a seasonal overclocker. The Ex-A320M Gaming motherboard features epic gaming audio capabilities provided by audio shielding and the use of premium Japanese-made audio capacitors for exceptional fidelity in audio quality. The motherboard has been extensively tested for more than 7000+ hours for extreme reliability and compatibility.
ASUS Expedition: Ready for non-stop battle
ASUS Expedition motherboard are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including an anti-moisture coating, gold-plated PCIe® x16 slot and LAN connector, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.
Anti-moisture coating
100% protection against moisture and corrosion
This innovative moisture-resistant coating provides 100% motherboard protection, and combats the higher levels of humidity that build up in densely-populated environments, such as internet cafes, libraries and data centers. It even minimizes internal corrosion by preventing the adhesion and migration of moisture — prolonging the life of your Expedition motherboard.
SafeSlot Core
Fortified PCIe slot prevents damage SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you’re offering the best performance and reliability. Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!
Specifications of ASUS EX-A320M Gaming DDR4
| CPU |
AMD AM4 Socket for AMD Ryzen™/AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4/Athlon™ Processors Supports CPU up to 8 cores |
| Chipset | AMD A320 |
| Memory |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/ 2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory ECC Memory (ECC model) support varies by CPU. |
| Graphic |
ntegrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively) |
| Expansion Slots |
AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 1 x PCIe 2.0 x4 (x2 mode) 1 x PCIe x1 |
| Storage |
AMD Ryzen™ Processors : 1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link), AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, AMD A320 chipset : 4 x SATA 6Gb/s port(s), |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports |
AMD A320 chipset : 6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features |
ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI VRM: 6 Phase digital power design Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100 peripherals tested AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Digi VRM |
| Operating System Support | Windows® 10 64-bit |

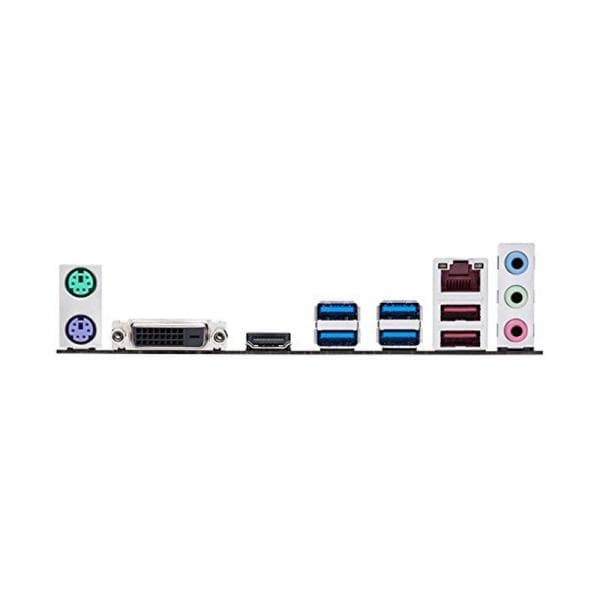

| Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x AAFP connector 1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
