Description

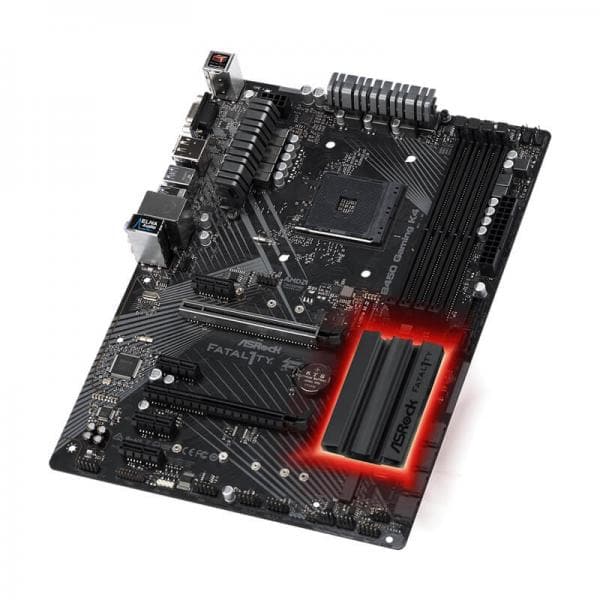

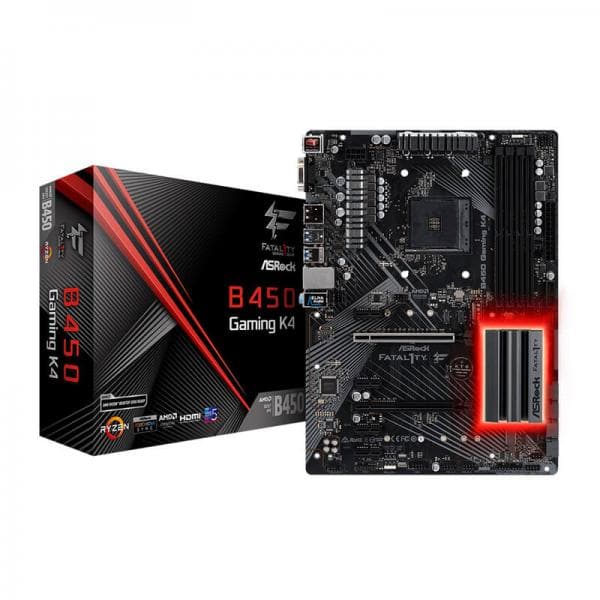

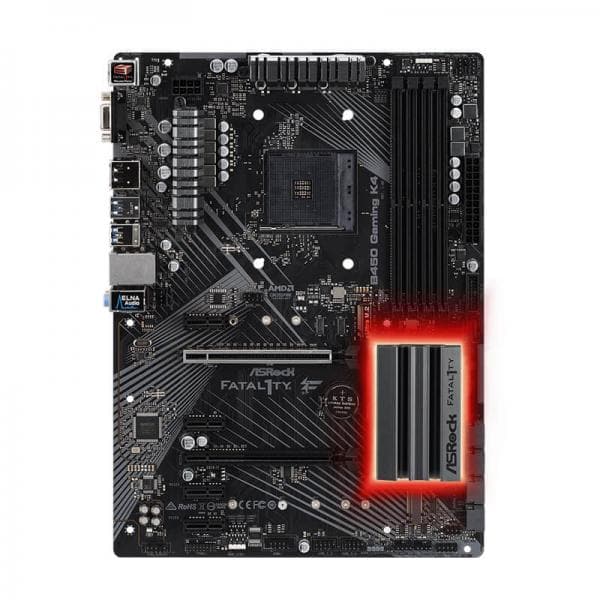

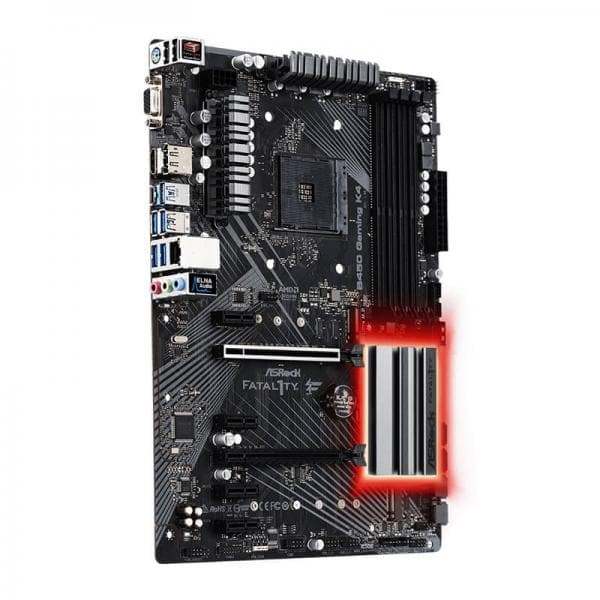

Feature of ASROCK Fatal1ty B450 Gaming K4 DDR4
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD.AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
CREATIVE SOUND BLASTER™ CINEMA5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
Dual USB 3.1 Gen2 (Type-A Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
F-Stream
ASROCK Fatal1ty B450 Gaming K4 partners with Fatal1ty to incorporate a design philosophy and features most desired by top tier gears. F-Stream is an all-in-1, multi-purpose tuning program that supports overclocking, hard-ware tuning such as energy usage, H/W monitor, fan speed control and so on.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub DisplayPort HDMI combo. Plus the HDMI port supports 4K resolution.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Specifications of ASROCK Fatal1ty B450 Gaming K4 DDR4
| Gaming Armor | Memory- 15μ Gold Contact in DIMM SlotsAudio- Creative Sound Blaster™ Cinema 5 |
| Unique Feature | ASRock USB 3.1 Gen2- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- Premium Power Choke- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| CPU | - AMD AM4 Socket- Digi Power design- 9 Power Phase design |
| Chipset | - AMD Promontory B450 |
| Memory | - Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200 (OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200 (OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200 (OC)/2933/2667/2400/2133 non-ECC, un-buffered memory*- Max. capacity of system memory: 64GB**- 15μ Gold Contact in DIMM Slots*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.Please refer to below table for AMD non-XMP memory frequency support. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- DRAM Voltage multi-adjustment |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Three graphics output options: D-Sub, HDMI and DisplayPort 1.2- Supports Triple Monitor- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP 1.4 with HDMI and DisplayPort 1.2 Ports- Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- ELNA Audio Caps- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel- Supports Creative Sound Blaster™ Cinema 5 |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Slots | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Slots | AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*AMD Ryzen series CPUs (Picasso, Raven Ridge)- 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*AMD Athlon series CPUs- 2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)*- 4 x PCI Express 2.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™***Supports NVMe SSD as boot disksIf M2_1 is occupied, PCIE4 will be disabled.**This feature is only supported with Ryzen Series CPUs (Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge). |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)**- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)***M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.**If M2_1 is occupied, PCIE4 will be disabled.Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Connector | - 1 x COM Port Header- 1 x TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 1 x Addressable LED Header**- 1 x AMD Fan LED Header***- 1 x CPU Fan Connector (4-pin)****- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*Supports in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. |

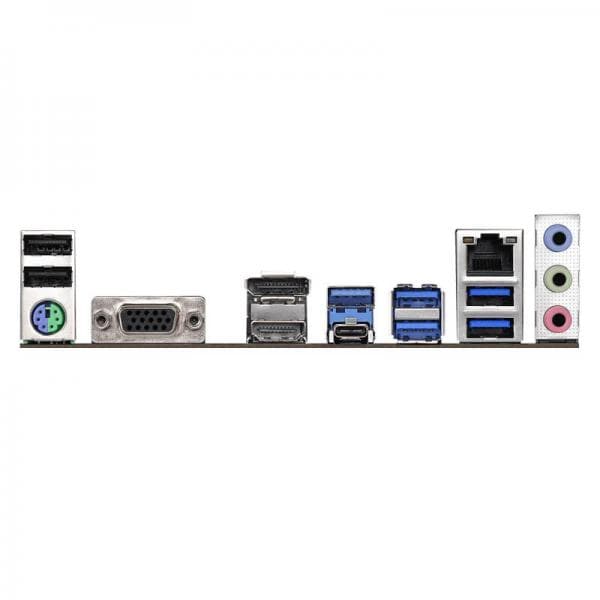

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 2 x USB 2.0 Ports (Supports ESD Protection)*- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone*1 x Fatal1ty Mouse Port (USB 2.0) is included |
| Software and UEFI | Software- ASRock F-Stream- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Hardware Monitor | - Temperature Sensing: CPU, MB- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: 12V, 5V, 3.3V, Vcore |
| Form Factor | - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm- Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
