Description
Features Of ASROCK Radeon RX 5600 XT
Extreme Gaming DNA
The ASROCK Radeon RX 5600 XT Challenger D OC graphics card is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the heart of AMD’s advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI® Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.
Armed with More Bandwidth
Radeon RX 5000 series features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design

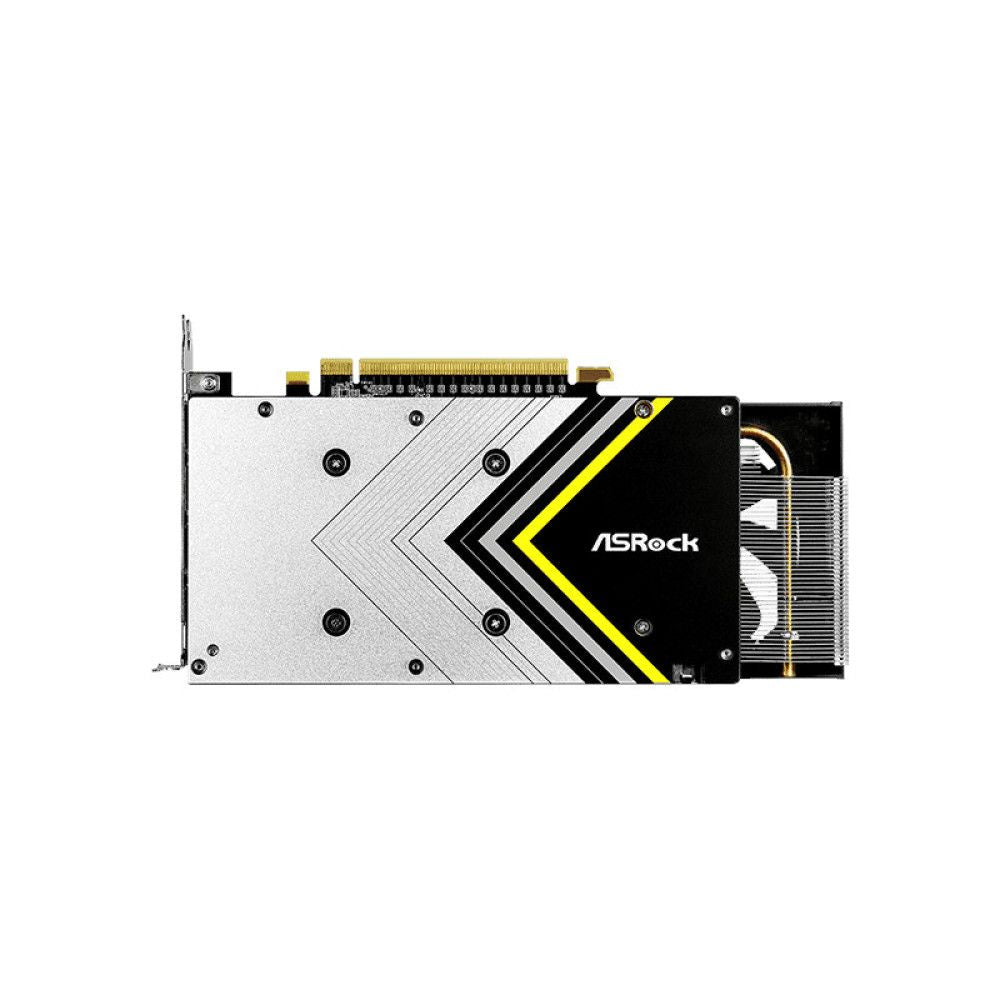

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
6GB 192-bit GDDR6
Equipped with 6GB of advanced GDDR6 memory to provide high bandwidth of up to 336 GB/s, enabling 1080p performance for today’s most demanding games.
Incomparable Memory Speed
ASRock Radeon RX 5600 XT Challenger D 6G OC graphics card is equipped with higher memory clock settings than reference default value. Compared with default settings, it brings significant performance enhancement.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
Radeon Image Sharpening
Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp and detailed visuals with virtually no performance impact. Now with DirectX® 9, 11, and 12 support.
Game Fidelity, Accelerated
The AMD Radeon™ RX 5000 series graphics card powers high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. The RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening, and Integer Display Scaling6 for maximum performance and beautiful gaming experiences.
Specifications Of ASROCK Radeon RX 5600 XT
| Graphics Engine | AMD Radeon RX 5600 XT |
| Bus Standard | PCI® Express x16 Gen4 |
| DirectX | 12 |
| OpenGL | 4.6 |
| Memory | GDDR6 6GB |
| Engine Clock |
Boost Clock: Up to 1620 MHz Game Clock: Up to 1460 MHz Base Clock: 1235 MHz *Need to update L07 version VBIOS or later |
| Stream Processors | 2304 |
| Memory Clock |
14 Gbps *Need to update L08 version VBIOS or later |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution: 8K HDR 60Hz |
| Interface |

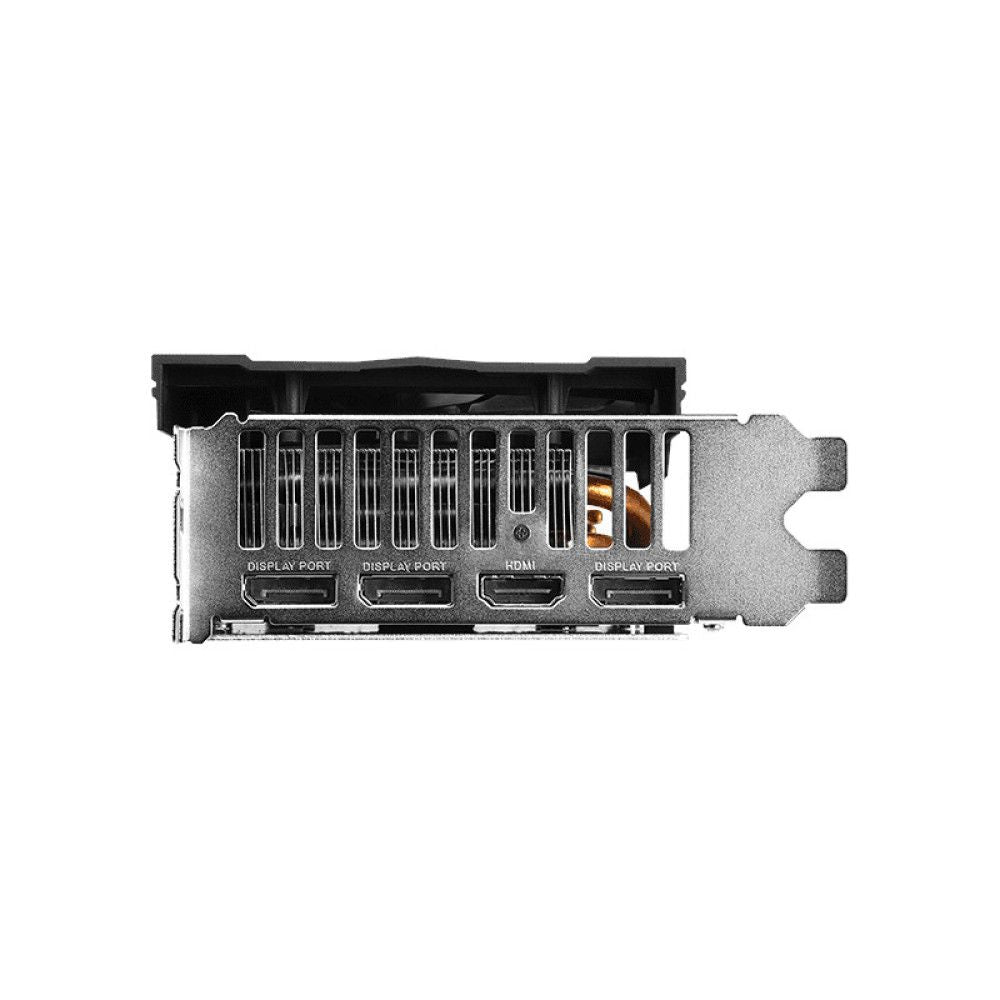

1 x HDMI 2.0b 3 x DisplayPort 1.4 with DSC 1.2a |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 550W |
| Power Connector | 1 x 8-Pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 240.5 x 126.5 x 53 mm |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice |
