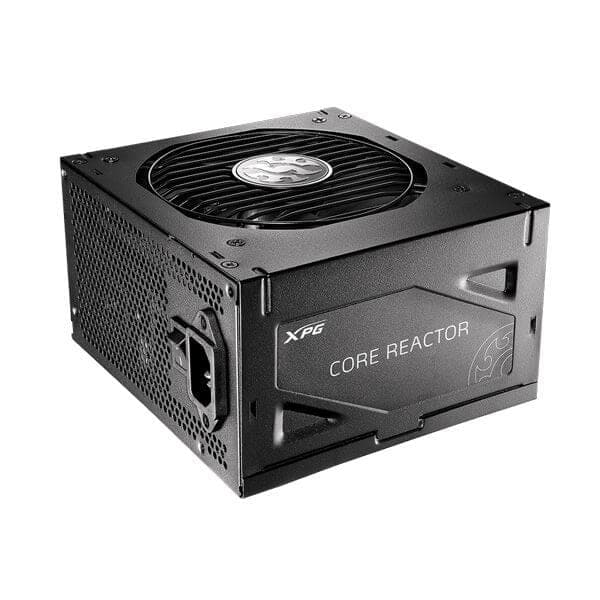

Features of ADATA XPG Core Reactor 750W
The ADATA XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
The 80 Plus Gold Certified
The 750W Power Supply 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load.
Cybernetics LAMBA / ETA Certified
The XPG CORE REACTOR modular power supply surpasses Cybernetics LAMBDA-A and ETA-A certification standards to meet the exacting needs of gamers for power transfer efficiency and low-noise operation.
Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.
Compact and Modular
The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105°C Japanese capacitors, the XPG Power Supply provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.
Industrial-Grade Protection
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
- No Load Operation (NLO)
- Surge & Inrush Protection (SIP)
Get the best 80 Plus Gold SMPS price from us today!
Specifications of ADATA XPG Core Reactor 750W
| 80 PLUS Rating | GOLD |
| ATX Version | Intel 1.42 |
| Protections | OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP |
| Certification | CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC |
| PFC | 0.99 |
| Input Voltage | 100V-240V |
| Input Current | 10A-5A |
| Input Frequency | 47Hz-63Hz |
| Operating Temperature | 50℃ |
| Fan Size | 12cm |
| Fan Bearing | FDB |
| Fan Speed | 2400 |
| Noise Level @ 20% | 11.2dB(A) |
| Noise Level @ 50% | 750W : 11.2dB(A) |
| Noise Level @ 100% | 650W : 22.3dB(A) |
| MTBF | 100K hours at full load |
| ATX 24 Pin Connector | 1 |
| EPS 4 4 Pin Connector | 750W : 1 |
| EPS 8 Pin Connector | 750W : 1 |
| SATA Connector | 12 |
| Peripheral 4 Pin Connector | 4 |
| PCI-e e 6 2 Pin Connector | 750W : 4 |
| Warranty | 10 Years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
