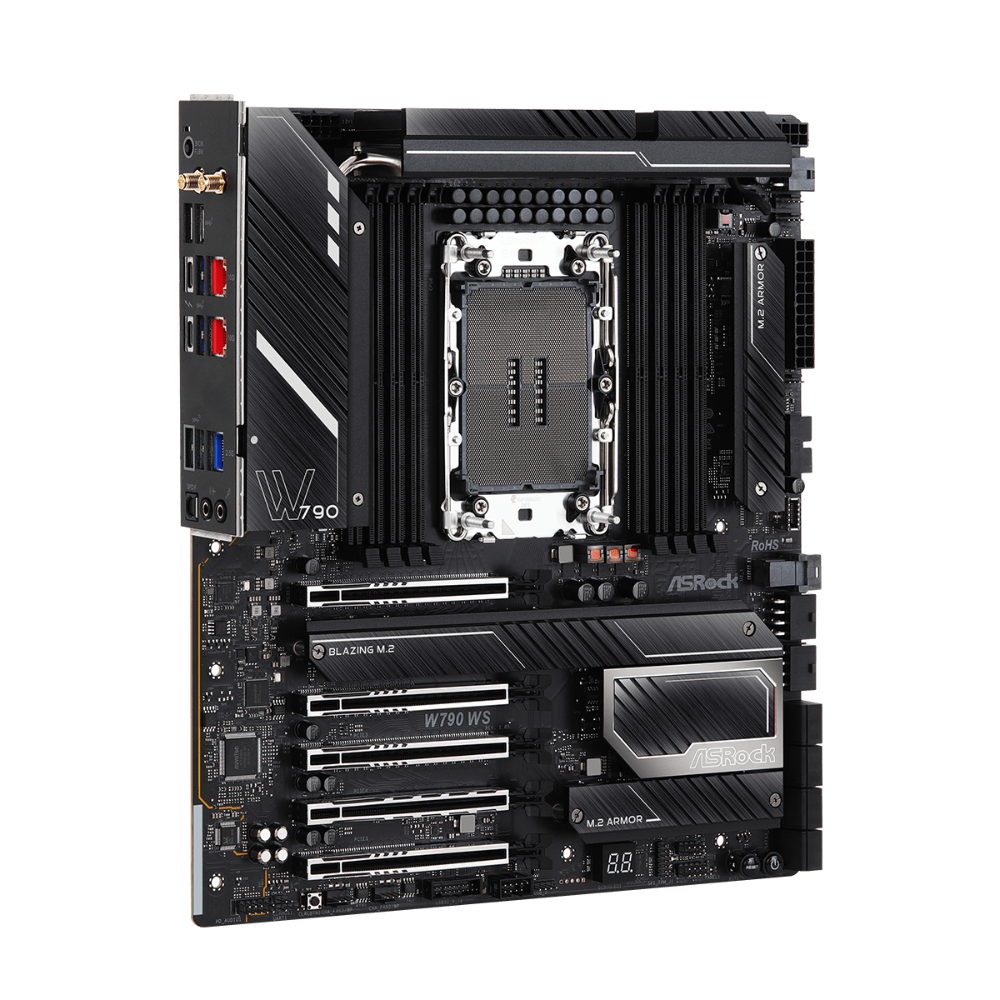

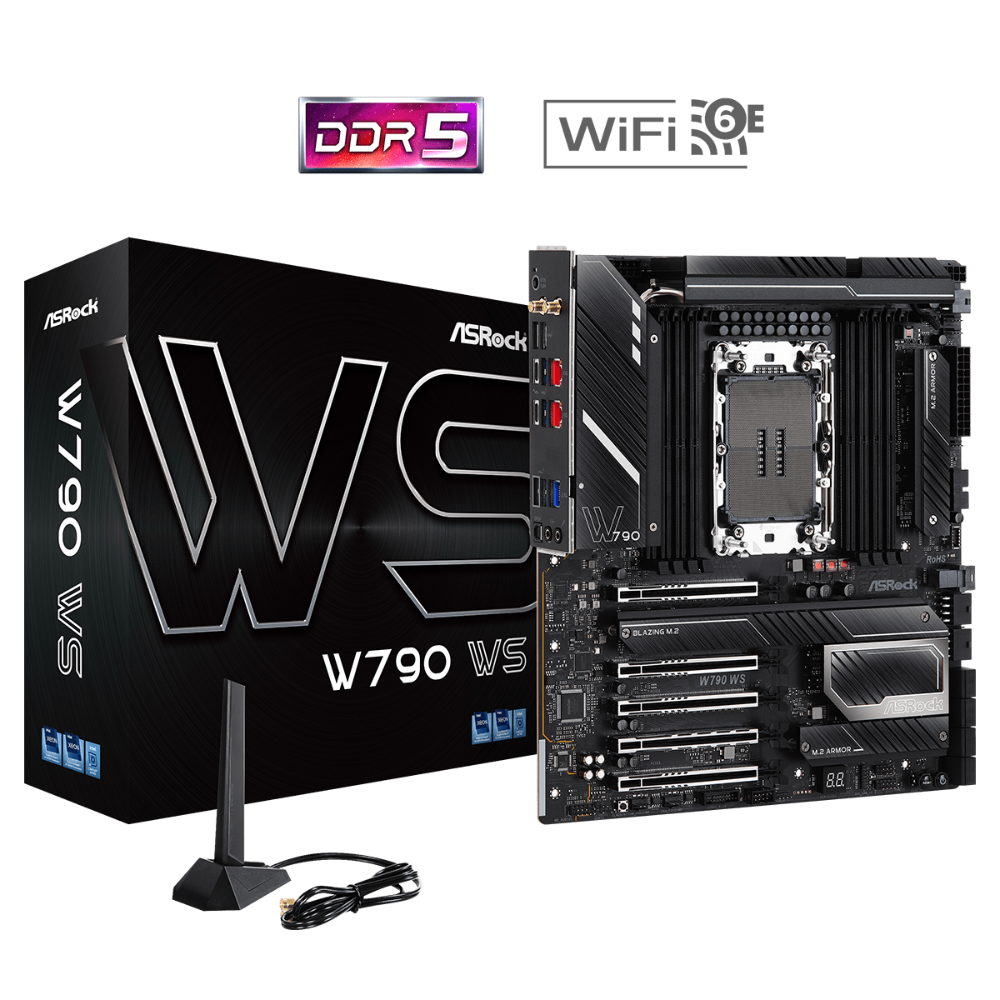

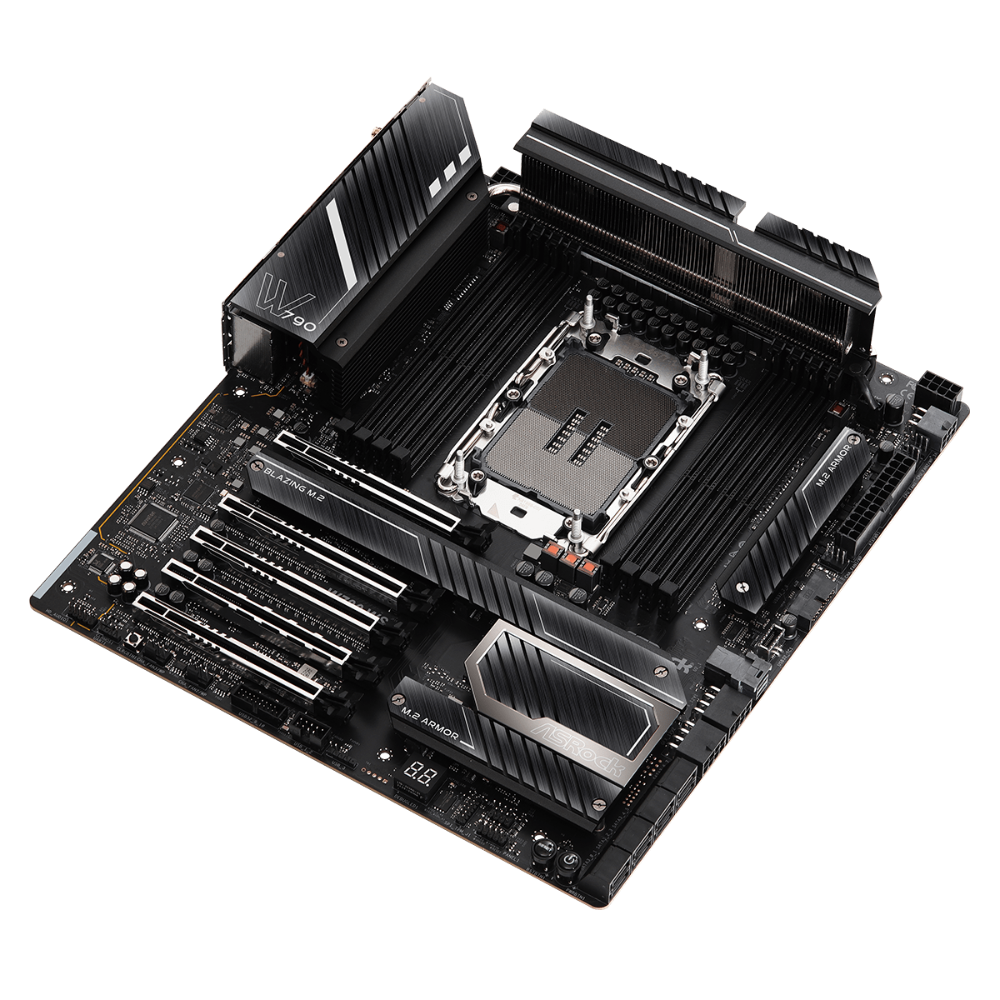

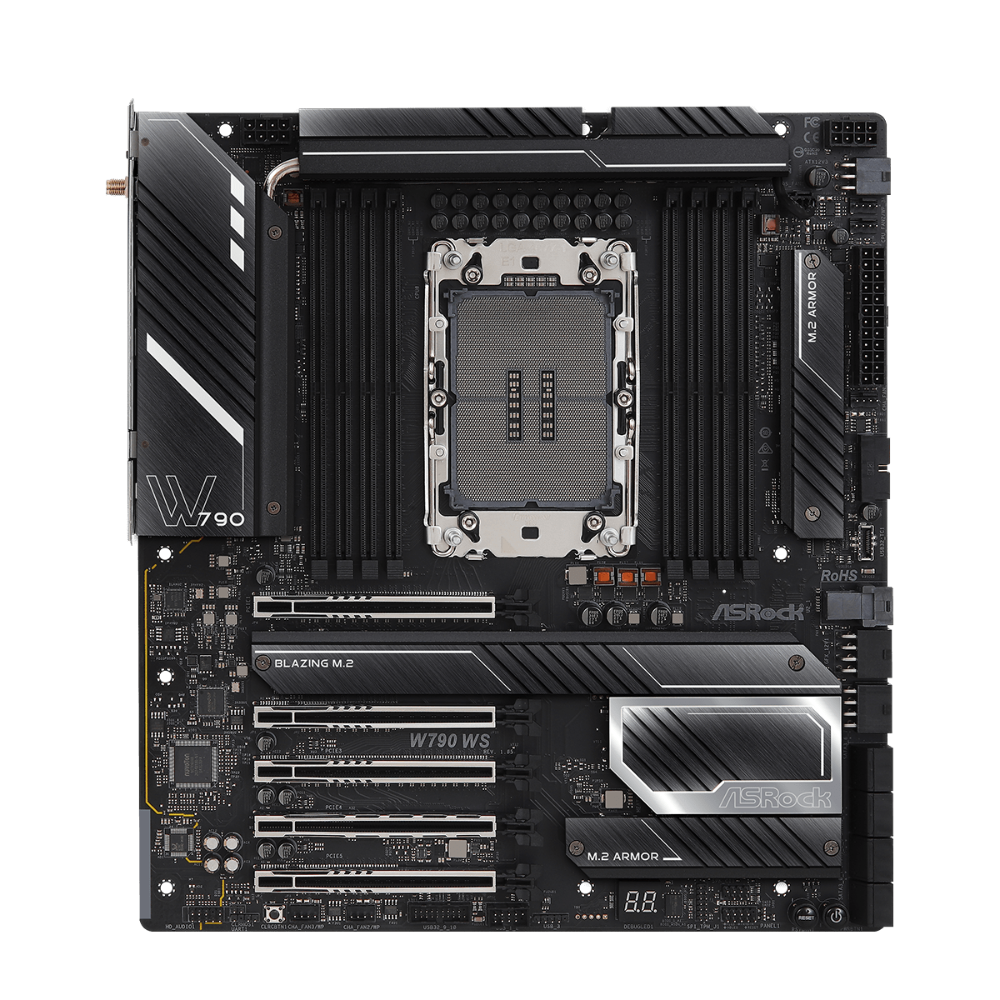

ASROCK W790 WS DDR5 Intel Motherboard

Name: ASROCK W790 WS DDR5 Intel Motherboard
Brand: ASROCK
SKU: asrock-w790-ws-intel
Price: 91088.82 INR
Availability: OutOfStock

Rs. 91,088.82 Rs. 105,487.00

Discount: Rs. 14,398.18 (14%)

12 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 27 - Dec 31

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of ASROCK W790 WS DDR5 Intel Motherboard

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

20+2 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

14 Layer PCB

The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

Composite VRM Heatsink

The advanced cooling system of the composite VRM heatsink provides efficient heat dissipation, which means users can enjoy high-performance computing without having to worry about thermal issues. The triple EBR cooling fans, XXL aluminum-alloy heatsink, aluminum fin array, and heat pipe work together to maintain optimal temperature levels for the system, ensuring smooth and stable operation even under heavy workloads.

Server-Grade Ultral Low-Loss PCB

The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 5.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

DDR5 ECC Memory Support

This workstation motherboard supports 8 DIMMs Quad-Channel DDR5 RDIMM ECC Memory overclocking with max capacity of 2048GB and is able to automatically detected and corrected data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

4 x PCIe Gen5 x16

This workstation motherboard supports 4 PCIe Gen5 x16 slots, deliver all the performance of PCIe Gen5 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Thunderbolt™ 4/USB4 Type-C

Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

Various Storage Interface Selection

Provides multiple interface for storage devices including mini-SAS HDD connector, SATA3, and M.2 Key-M slot that can support PCIe Gen5 x4 M.2 SSD.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Dual AQUANTIA^® / Marvell 10GbE LAN

equipped with dual Marvell (Aquantia) 10GbE controller. The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. It offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

Supports Intel^® vPro technology

The Intel^® Ethernet Controller I225LM is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Featuring 2.5Gb/s Ethernet and supports Intel^® Active Management Technology on systems enabled with Intel^® vPro^® technology.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Flexible Integrated IO Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Specifications of ASROCK W790 WS DDR5 Intel Motherboard

Unique Feature	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Quad Channel DDR5 - 2 Thunderbolt™ 4 Type-C Rock-Solid Durability - Ultra Low-Loss PCB - 20+2 Power Phase, 90A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - Dual Marvell (Aquantia) 10GbE LAN - Intel® 2.5GbE LAN - Intel® vPro for Workstations with Intel® Advanced Management Technology - 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
CPU	- Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors (LGA4677) - Supports Intel® Boot Guard - Supports Intel® Trusted Execution Technology (Intel® TXT) - Supports Intel® Turbo Boost Technology - Supports Intel® Virtualization Technology (Intel® VT) - Supports Intel® Hyper-Threading Technology (Intel® HT Technology) - Supports Intel® Data Streaming Accelerator (Intel® DSA) - Supports CXL (Compute Express Link) 1.1 - Supports ASRock Hyper BCLK Engine
Chipset	- Intel® W790 - Supports Intel® vPro Technology - Supports Intel® Active Management Technology
Memory	- Quad Channel DDR5 Memory Technology - 8 x DDR5 DIMM Slots* - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4) up to 6800+(OC)** - Max. capacity of system memory: 2TB
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	- n/a
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN	2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) - Support Wake-On-LAN - Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I225LM) - Support Wake-On-LAN - Support PXE - Supports Intel® vPro Technology
Wireless LAN	- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO
Slots	CPU: - 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slots
Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 8 x SATA3 6.0 Gb/s Connectors - 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	- 2 x Thunderbolt™ 4 Type-C (Rear) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 2 x USB 3.2 Gen2 Type-A (Rear) - 8 x USB 3.2 Gen1 (4 Rear, 4 Front) - 3 x USB 2.0 (Front)
Connector	- 1 x Virtual RAID On CPU Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard) - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)** - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*** - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED

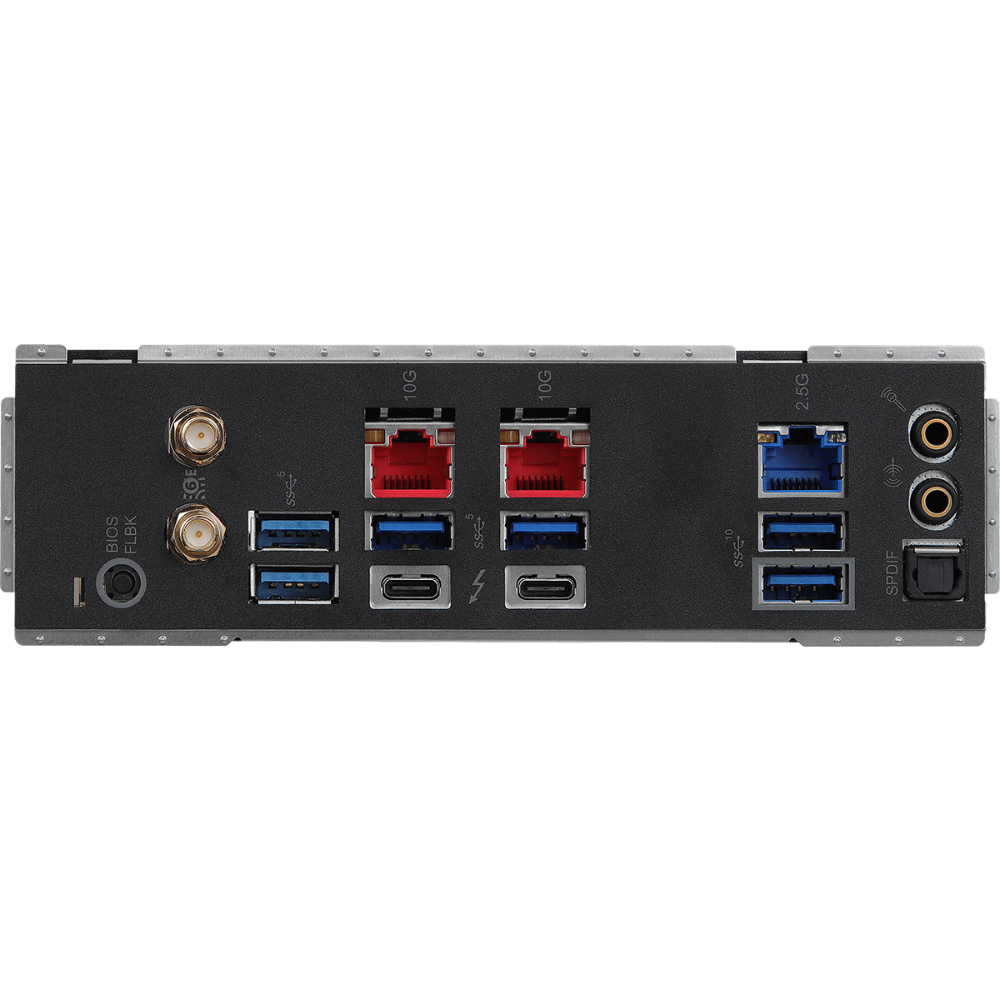

Rear Panel I/O	- 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 2 x Thunderbolt™ 4 Type-C Ports* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 3 x RJ-45 LAN Ports - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Accessories	- 1 x User Manual - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x CPU Carrier for LGA 4677 E1A - 1 x CPU Carrier for LGA 4677 E1B - 4 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets
Form Factor	- EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm - 14 Layer PCB
OS	- Microsoft Windows® 10 64-bit / 11 64-bit - Linux*
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready
