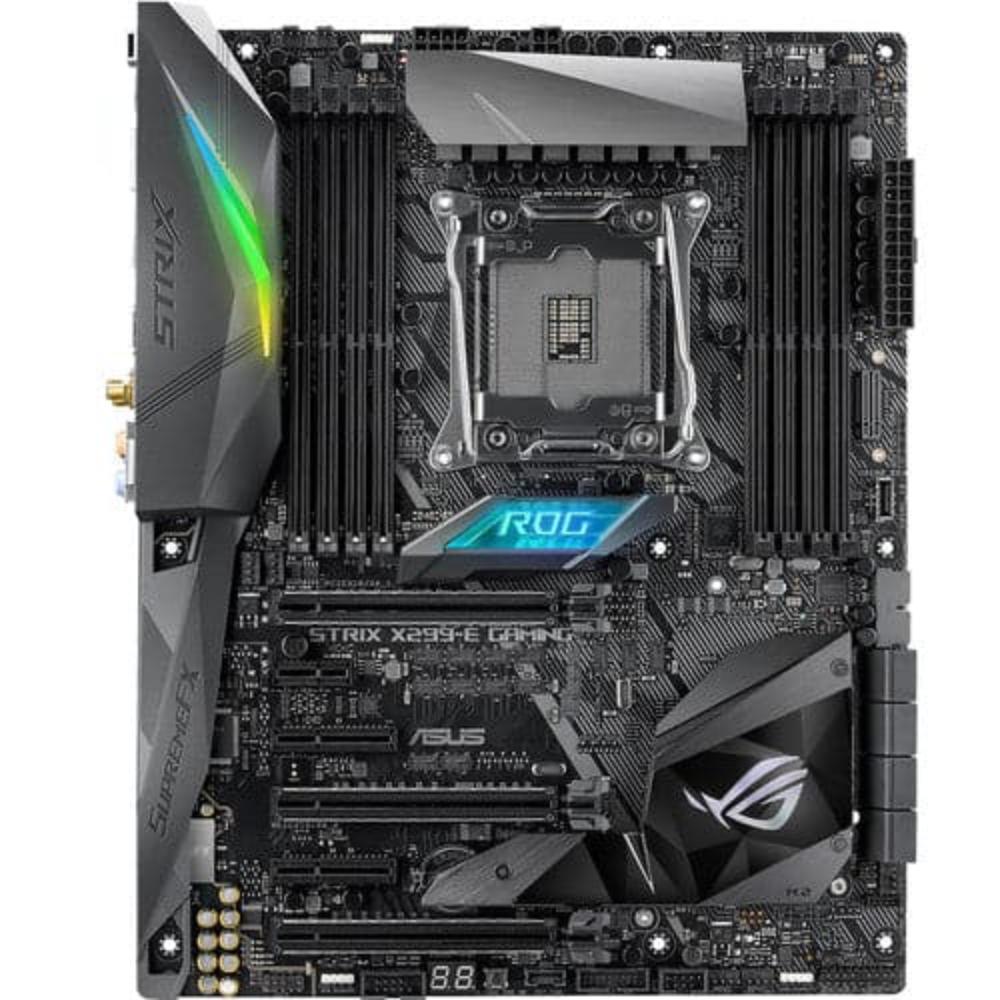

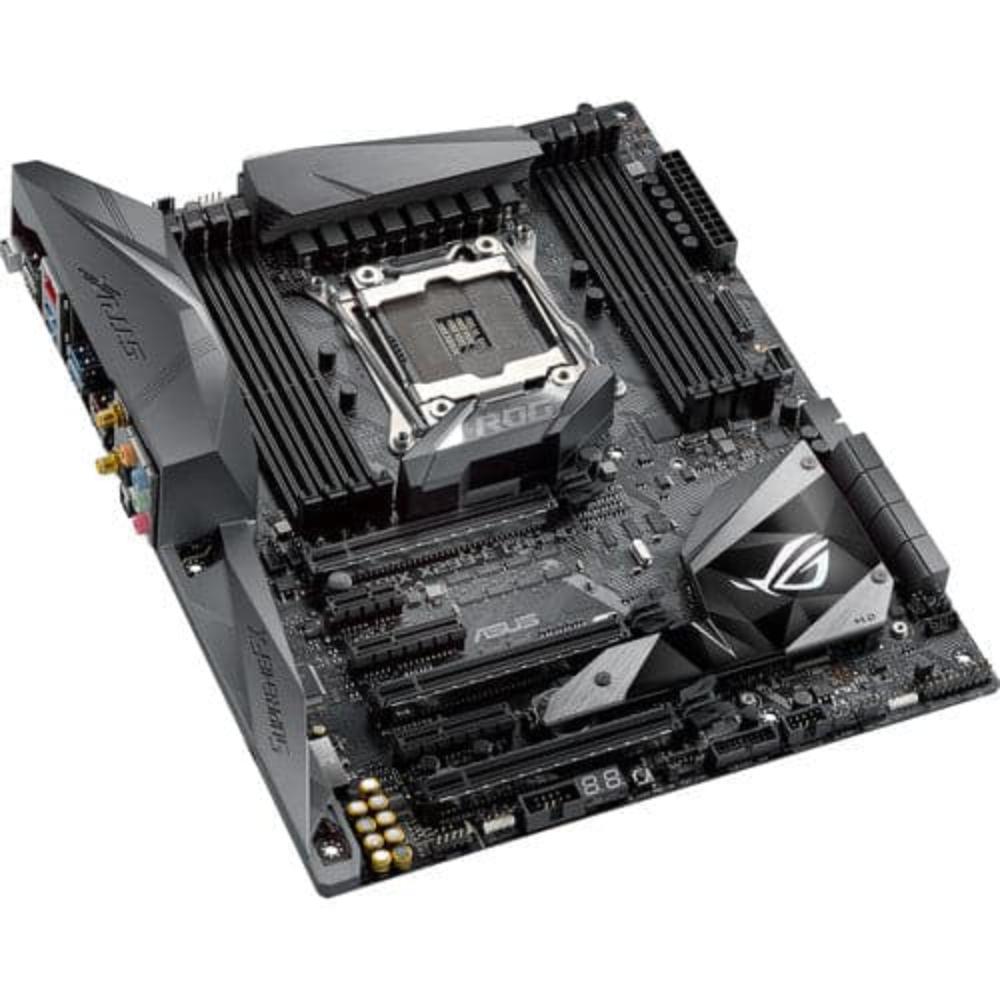

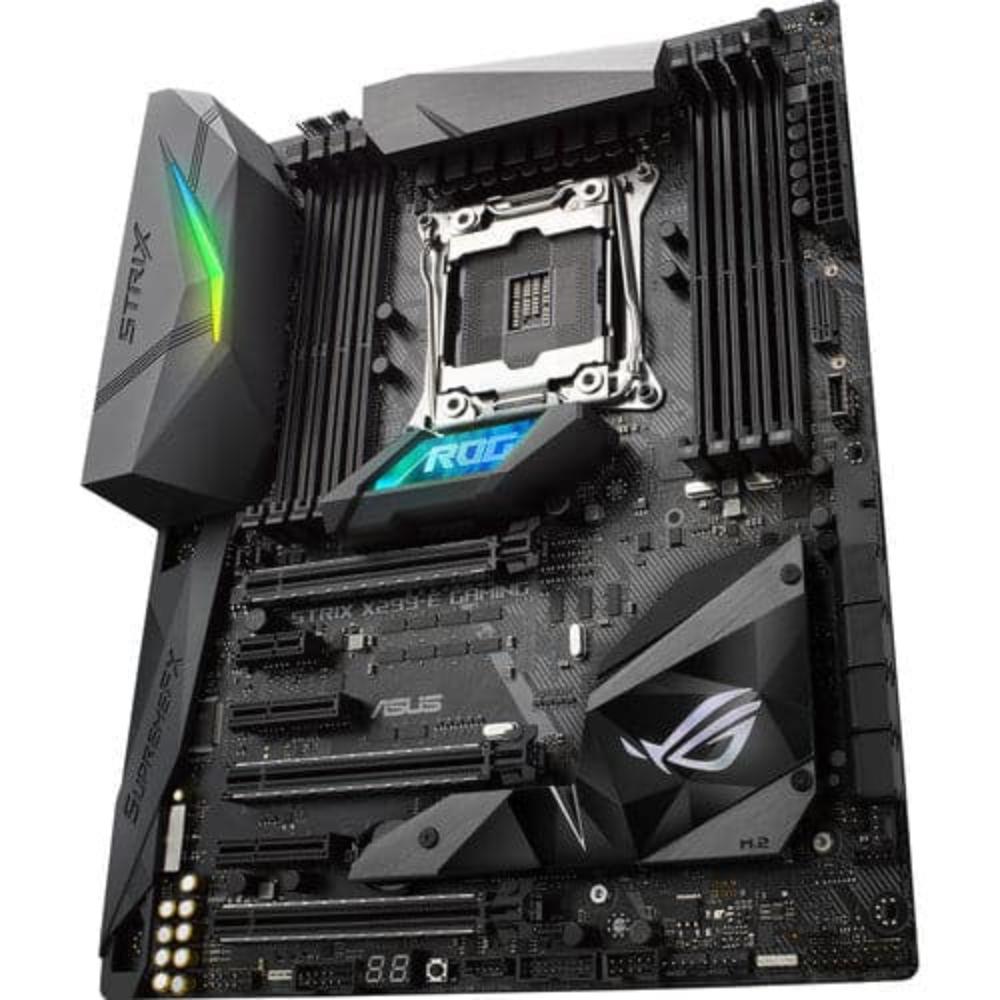

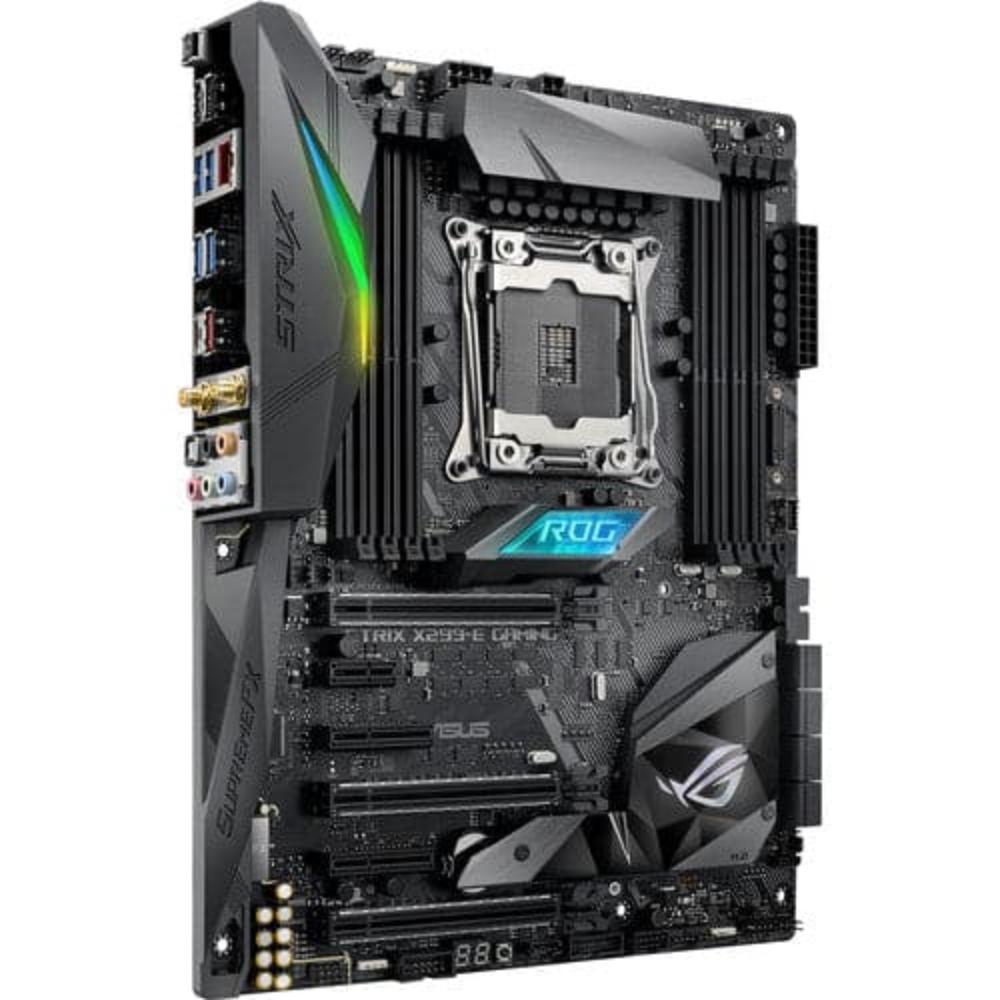

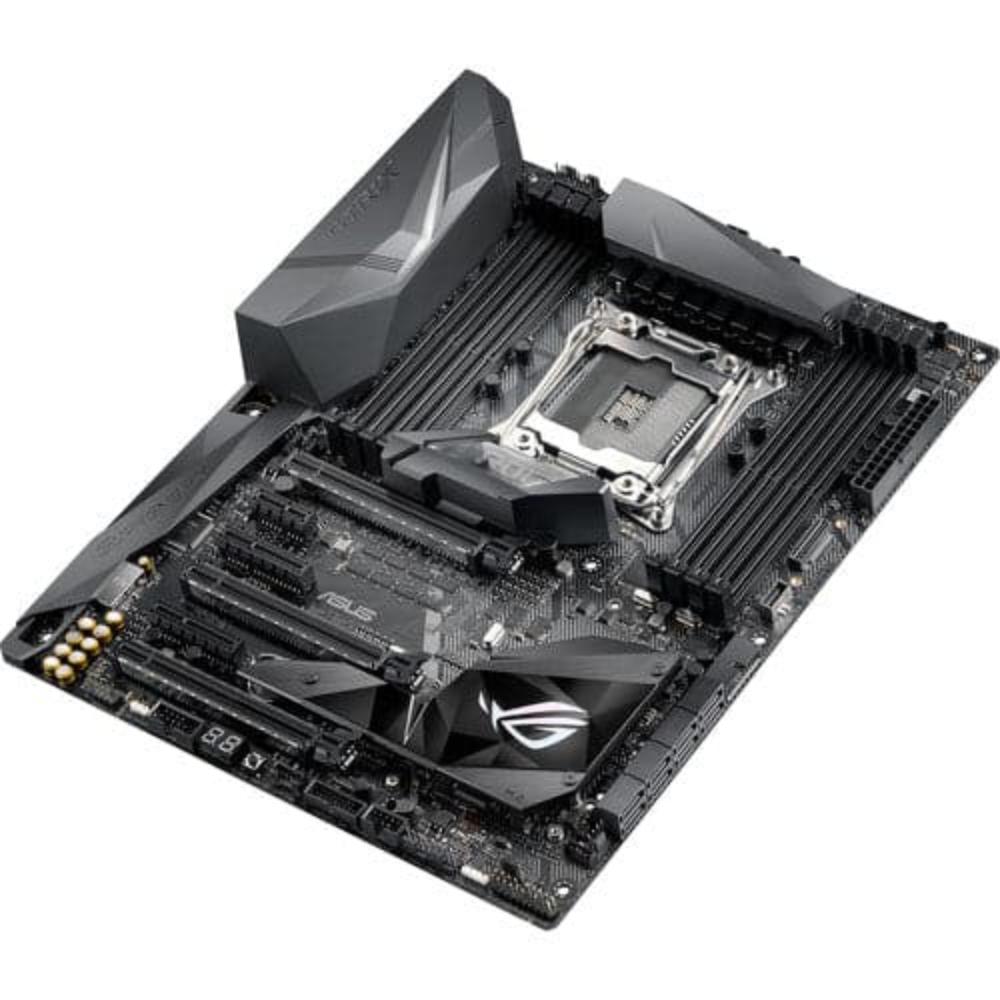

ASUS ROG Strix X299-E Gaming DDR4 Intel Motherboard

Feature of ASUS ROG Strix X299-E Gaming DDR4

• Designed for 7th generation LGA2066 socket Intel® Core™ X-Series processors to maximize connectivity and speed with dual M.2, front panel USB 3.1, onboard 802.11AC WIFI, Intel® VROC , and Intel® Optane™ Memory compatibility
• 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
• Patent-pending SafeSlot (3X) feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
• Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, three additional RGB headers and 3D-printing mounts to customize your build
• Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors citors

ASUS ROG Strix X299-E Gaming is loaded with powerful tuning, overclocking, cooling and personalization innovations to make your next build as agile as your ambitions. We've channeled ROG engineering ingenuity into Strix X299-E Gaming to create a standout ATX motherboard that's tricked out with superior SupremeFX audio for deeper in-game immersion, Aura Sync lighting with an all-new addressable-RGB-strip header to unleash infinite illumination possibilities, and special mounts that make it easy to create your own 3D-printed upgrades. Infused with the essential gaming spirit that is ROG, Strix X299-E Gaming is hungry for high-performance Intel® Core™ X Series processors — and ready to satisfy your desire for X299.

ASUS Aura Sync takes RGB lighting beyond the checkbox, combining and controlling the LEDs across all of your Aura-enabled products from a single application to achieve perfect, synchronized harmony. From motherboards and RGB strips to graphics cards and beyond, Aura Sync enables a veritable symphony of light for ultimate personalization.

AURA ADDRESSABLE HEADER RGB LIGHTING PERFECTED

Strix X299-E Gaming motherboard now includes a dedicated addressable RGB header* that connects to compatible lighting strips, fans, coolers, and compatible PC cases, creating a new world of illumination possibilities. Our Aura software contains an array of effects for addressable gear, and the Aura SDK takes things to the next level — allowing developers to control each LED individually, unleashing infinite lighting possibilities! Strix X299-E Gaming motherboard includes a convenient 80cm extension cable, making it easy to fit an addressable RGB strip wherever you want, and we've worked with strip, fan, and chassis vendors to ensure an ever-growing choice of compatible addressable gear.

INFINITE LIGHTING POSSIBILITIES

ASUS Aura SDK allows developers to take full advantage of the vast eco-system of Aura Sync-capable PC gear. From in-system illumination to peripherals and beyond, the SDK provides an evolving toolkit of options to enhance games and software with RGB lighting. Game effects, alerts, and audio can all be portrayed via Aura-compatible hardware, creating subtle or dazzling visual cues to augment the action. There's also scope to map system parameters such as temperatures to lighting, giving enthusiasts new ways to monitor vital information.

PERFECTED COOLING FOR UNLEASHING PERFORMANCE

Strix X299-E Gaming motherboards are equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD — for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.

M.2 FAN HOLDER

The ASUS 3D-printed M.2 fan holder keeps temperatures low for improved performance and longevity.

EXCLUSIVE 3D MOUNT FOR EASY INSTALLATION

Dedicated 3D Mounts on the motherboard makes fitting 3D-printed parts easy. Using the same screws as M.2 drives and standard motherboard mounting holes, you can easily add an M.2 fan holder. *Products with the 3D Printing Friendly logo feature the specialized 3D Mount and are also bundled with an extra 3D mount kit.

DDR4 OVERCLOCKING STRENGTH IN NUMBERS

With support for DDR4 memory, Strix X299-E Gaming lets you drive memory frequencies to 4133MHz — and even beyond when overclocked! ASUS-exclusive T-Topology circuit design plus OC Socket provides superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. With innovative equidistant memory channels, T-Topology delivers balanced control and powerful overclocking compatibility.

ASUS PRO CLOCK II TECHNOLOGY

A dedicated base-clock (BCLK) generator designed for Intel Core X series processors allows overclocked base-clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock overclocking control, providing an exciting new way to boost performance to extreme heights.

5-WAY OPTIMIZATION

GET PERFORMANCE, EFFICIENCY, DIGITAL POWER, FAN CONTROL AND EVEN NETWORKING AND AUDIO TUNING TAILORED FOR YOU — AND THE WAY YOU PLAY!

INSTANT CPU PERFORMANCE BOOST

Crank up your PC instantly with the ASUS AI Suite 3 utility! The TurboV Processing Unit offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and for exploiting the potential out of your graphics card*

ALL-ROUND ENERGY EFFICIENCY

With the Energy Processing Unit (EPU) you'll enjoy real-time, system-wide power savings — for gaming kicks that won't cost the earth! EPU automatically detects and adjusts power consumption according to your rig's needs, so you save money without compromising on thrills. EPU will also reduce CPU wattage to a set level and deliver even more savings with Away mode, creating an extreme energy-saving scenario that shuts down unused extra I/O controllers and reduces the power level of the graphics card. That means full power for your gameplay — and then total energy efficiency when you step away!

Specifications of ASUS ROG Strix X299-E Gaming DDR4
